Search › Model › F602
F602

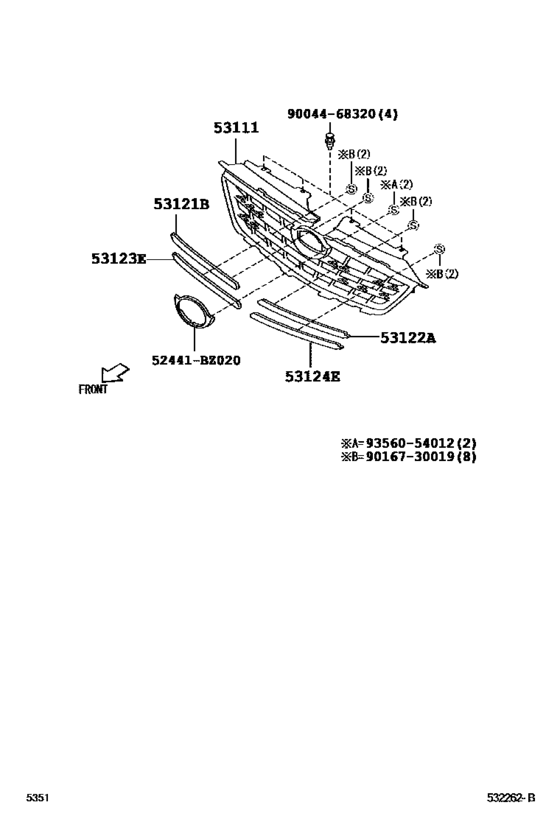

Radiator Grille ([08.2006 - ] (0608- )S) 10
| # | OEM | Part name |
|---|---|---|
| 52441 | 52441-BZ020 | Base, Front Bumper Guard, No.1 Rh |
| 53111 | 53111-BZ110 | Grille, Radiator |
| 53121 | 53121-BZ020 | Moulding, Radiator Grille, Upper |
| 53122 | 53122-BZ020 | Moulding, Radiator Grille, Lower |
| 53123 | 53123-BZ020 | Moulding, Radiator Grille, Lower Rh |
| 53124 | 53124-BZ010 | Moulding, Radiator Grille, Lower Lh |
| 9004468320 | 90044-68320 | Clip, Engine Under Cover, No.2 |
| 9004468320 | 90044-68378 | CLIP |
| 9016730019 | 90167-30019 | SCREW PAN TAPPING |
| 9356054012 | 93560-54012 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 52441-BZ020 | Base, Front Bumper Guard, No.1 Rh | Radiator Grille ([08.2006 - ] (0608- )S) |
| 53111-BZ110 | Grille, Radiator | Radiator Grille ([08.2006 - ] (0608- )S) |
| 53121-BZ020 | Moulding, Radiator Grille, Upper | Radiator Grille ([08.2006 - ] (0608- )S) |
| 53122-BZ020 | Moulding, Radiator Grille, Lower | Radiator Grille ([08.2006 - ] (0608- )S) |
| 53123-BZ020 | Moulding, Radiator Grille, Lower Rh | Radiator Grille ([08.2006 - ] (0608- )S) |
| 53124-BZ010 | Moulding, Radiator Grille, Lower Lh | Radiator Grille ([08.2006 - ] (0608- )S) |
| 90044-68320 | Clip, Engine Under Cover, No.2 | Radiator Grille ([08.2006 - ] (0608- )S) |
| 90044-68378 | CLIP | Radiator Grille ([08.2006 - ] (0608- )S) |
| 90167-30019 | SCREW PAN TAPPING | Radiator Grille ([08.2006 - ] (0608- )S) |
| 93560-54012 | Screw | Radiator Grille ([08.2006 - ] (0608- )S) |
