F602

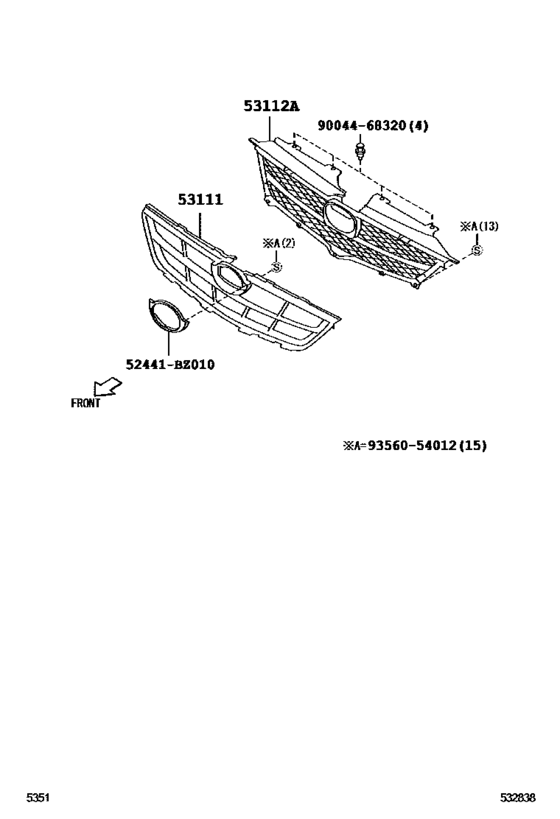

Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) 6
| # | OEM | Part name |
|---|---|---|
| 52441 | 52441-BZ010 | Base, Front Bumper Guard, No.1 Rh |
| 53111 | 53111-BZ200 | Grille, Radiator |
| 53112 | 53112-BZ070 | Grille, Radiator, Lower |
| 9004468320 | 90044-68320 | Clip, Engine Under Cover, No.2 |
| 9004468320 | 90044-68378 | CLIP |
| 9356054012 | 93560-54012 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 52441-BZ010 | Base, Front Bumper Guard, No.1 Rh | Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) |
| 53111-BZ200 | Grille, Radiator | Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) |
| 53112-BZ070 | Grille, Radiator, Lower | Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) |
| 90044-68320 | Clip, Engine Under Cover, No.2 | Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) |
| 90044-68378 | CLIP | Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) |
| 93560-54012 | Screw | Radiator Grille ([08.2006 - ] (0608- )CTM,DLX,E,G,GL,J,STD,XI) |
