| 35073-B9010 |
Shaft Sub-Assy, Output |

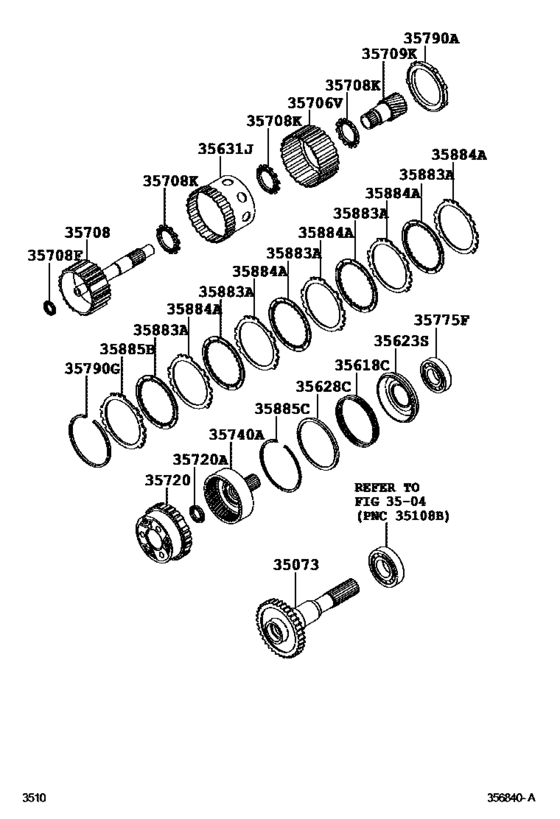

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35618-B1010 |
Return Spring Sub-Assy, 1St & Reverse |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35623-97202 |
Piston,1St & Reverse Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35623-B1010 |
Piston,1St & Reverse Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35628-97202 |
Seat, 1St & Reverse Brake Piston Return Spring |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35631-97203 |
Hub, Forward Clutch, No.1 |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35631-B1010 |
Hub, Forward Clutch, No.1 |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35706-97203 |
Gear Sub Assy, Planetary Sun |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35708-97203 |
Shaft Sub-Assy, Intermediate |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35709-97204 |
Gear Sub-Assy, Rear Planetary |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35720-97211 |
Gear Assy, Front Planetary |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35740-97201 |
Gear Assy,front Planetary Ring |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35790-97201 |
Clutch Assy, 1 Way |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35790-B1050 |
Clutch Assy, 1 Way |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35883-97204 |
Disc, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35883-B1030 |
Disc, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35884-97204 |
Plate,brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35885-97213 |
Flange, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35885-97214 |
Flange, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35885-97215 |
Flange, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35885-97216 |
Flange, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35885-97217 |
Flange, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 35885-97218 |
Flange, Brake |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90043-63273 |
Bearing, Radial Ball (For Output Shaft Front) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90043-74043 |
Bearing, Thrust Needle Roller (For Front Clutch Drum) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90043-74047 |
Bearing, Needle Roller(For Intermediate Shaft) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90043-74051 |
Bearing, Thrust Needle Roller (For Intermediate Shaft) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90045-21174 |
Hole Snap Ring (For 1Way Clutch) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90045-21175 |
Ring,hole Snap (For Clutch Plate) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
| 90045-21194 |
Ring,hole Snap (For Clutch Plate) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2004 - ] (0404- )4AT) |
