F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories
F602 ×

← Back to categories

2,601 items

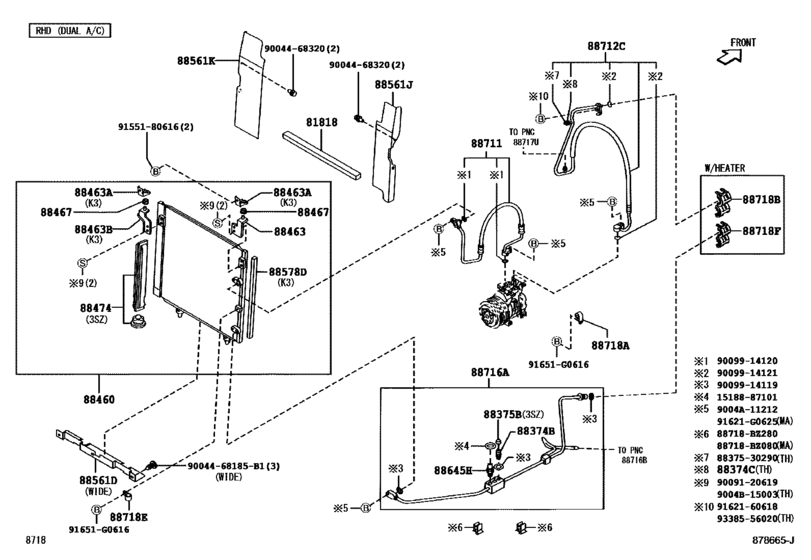

Heating & Air Conditioning - Cooler Piping ([08.2006 - ] RHD DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F601..RHD..5F..GEN,M A ; (0608- )F6 02..RHD..E,G,GL,J,S) 35
#OEMPart name
81818 81818-BZ010 Packing
88374 88374-33070 Valve, Service, No.1 - SERVICE, NO.2
88374 88374-30010 Valve, Service, No.1
88460 88460-BZ090 Condenser Assy, Cooler
88463 88463-BZ200 Bracket, Cooler Condenser, No.1
88467 88467-BZ020 Cushion, Cooler Condenser, No.1
88561 88561-BZ030 Grille, Air Inlet No.1
88561 88561-BZ050 Grille, Air Inlet No.2
88578 88578-BZ510 Packing, Cooler Pipe, No.1
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88711 88711-BZ160 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-BZ180 Hose, Suction
88716 88716-BZ290 Pipe, Cooler Refrigerant Liquid, A
88718 88718-BZ290 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-BZ310 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-BZ080 Pipe, Cooler Refrigerant Suction, No.2
88718 88718-BZ280 Clamp(For Cooler Refrigerant Pipe), No.3
91621 91621-G0625 New Genuine Part
91651 91651-G0616 BOLT WWASHER
1518887101 15188-87101 Gasket, Oil Pump
8837530290 88375-30290 Cap, Service Valve (For Cooler Pipe)
9004468185 90044-68185-B1 Clip(For Rear Seat)
9004468320 90044-68320 Clip, Engine Under Cover, No.2
9004468320 90044-68378 CLIP
9009120619 90091-20619 BOLT
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9155180616 91551-80616 BOLT FLANGE
9162160618 91621-60618 New Genuine Part
9162160618 91651-B0620 New Genuine Part
9338556020 93385-56020 New Genuine Part
9338556020 90091-20641 New Genuine Part
