Search › Model › F602

F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories

2,601 items

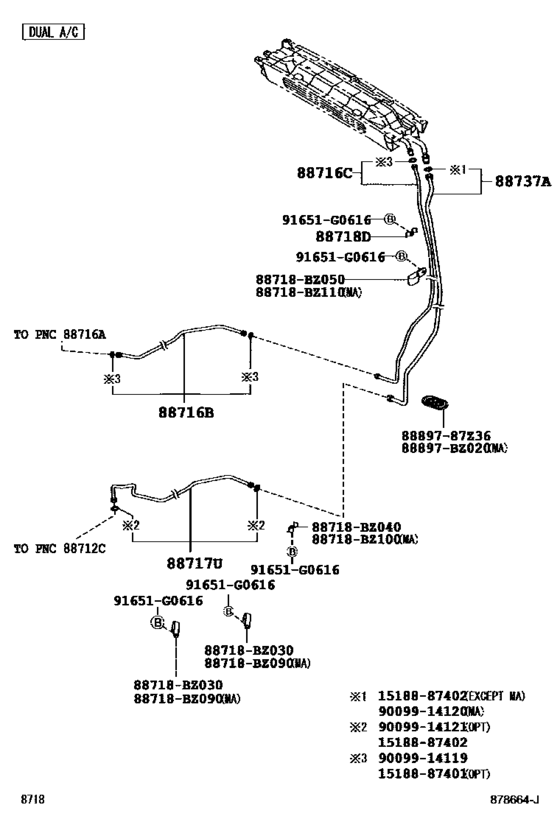

Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL) 20

#	OEM	Part name
88716	88716-BZ090	Pipe, Cooler Refrigerant Liquid, B
88716	88716-BZ100	Pipe, Cooler Refrigerant Liquid, C
88717	88717-BZ040	Tube, Suction, No.1
88718	88718-BZ120	Clamp(For Cooler Refrigerant Pipe), No.4
88718	88718-BZ030	Clamp(For Cooler Refrigerant Pipe), No.5
88718	88718-BZ040	Clamp(For Cooler Refrigerant Hose), No.1
88718	88718-BZ050	Pipe, Cooler Refrigerant Suction, No.2
88718	88718-BZ090	Pipe, Cooler Refrigerant Suction, No.2
88718	88718-BZ100	Pipe, Cooler Refrigerant Suction, No.2
88718	88718-BZ110	Pipe, Cooler Refrigerant Suction, No.2
88737	88717-BZ050	Tube, Suction, A(For Cool Box)
88897	88897-BZ020	Grommet, Cooler
91651	91651-G0616	BOLT WWASHER
8889787	88897-87Z36	Grommet (For Cooler Unit)
1518887401	15188-87401	Ring, O
1518887402	15188-87402	Ring, O
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)

OEM	Part name	Category
15188-87401	Ring, O	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
15188-87402	Ring, O	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88716-BZ090	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88716-BZ100	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88717-BZ040	Tube, Suction, No.1	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88717-BZ050	Tube, Suction, A(For Cool Box)	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ030	Clamp(For Cooler Refrigerant Pipe), No.5	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ040	Clamp(For Cooler Refrigerant Hose), No.1	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ050	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ090	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ100	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ110	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88718-BZ120	Clamp(For Cooler Refrigerant Pipe), No.4	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88897-87Z36	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
88897-BZ020	Grommet, Cooler	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
91651-G0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([08.2006 - ] DUAL A/C (0608- )5F..G..IDN ; (0608- )F601..4AT..E, G ; (0608- )F602..E,G,GL,J,S ; ( 0608- )F601..5 F..GEN,MA,PHL)
