F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories
F602 ×

← Back to categories

2,601 items

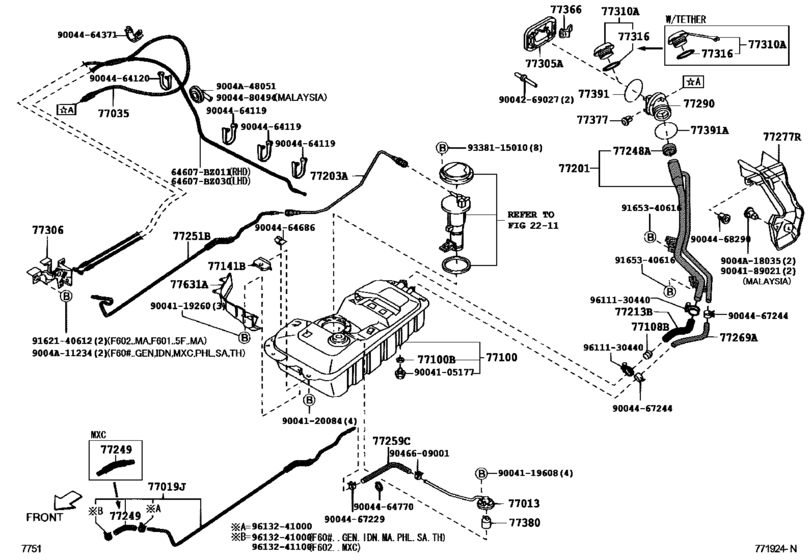

Fuel Tank & Tube ([08.2006 - ] (0608- )) 57
#OEMPart name
64607 64607-BZ011 Cable Sub-Assy, Back Door Lock Control
64607 64607-BZ030 Cable Sub-assy, Luggage Door Lock Control
77013 77013-BZ010 Tube Sub-Assy, Fuel Tank Breather, No.2
77019 77019-BZ050 Tube Sub-Assy, Fuel Tank To Canister
77035 77035-BZ010 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-BZ060 Tank Assy, Fuel
77100 90044-30291 Gasket(For Fuel Tank)
77108 77108-B2010 Valve Sub-Assy, Fuel Tank Filler Check
77141 77141-BZ010 Reinforcement, Fuel Tank Flange, No.1
77201 77201-BZ020 Pipe Sub-Assy, Fuel Tank Inlet
77203 77203-BZ010 Tube Sub-Assy, Fuel Suction
77213 77213-BZ010 Hose, Fuel Tank To Filler Pipe
77213 77213-B0010 Hose, Fuel Tank To Filler Pipe
77248 77248-20030 Holder, Fuel Tank Filler Pipe Cover
77249 95331-04015 Hose, Fuel Emission - FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77249 95333-04020 Hose, Lpg Injector
77251 77251-BZ010 Tube, Fuel Main
77259 77259-BZ010 Hose, Fuel
77269 77269-BZ010 Hose, Fuel Tank Breather
77277 77277-BZ011 Protector, Fuel Tank Filler Pipe
77277 77277-BZ012 Protector, Fuel Tank Filler Pipe
77290 77293-BZ010 Shield Assy, Fuel Tank Filler Pipe
77290 77293-BZ012 Shield, Fuel Tank Filler Pipe, No.3
77305 77305-BZ050 Lid Sub-Assy, Fuel Filler Opening
77306 64606-BZ010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77380 77380-0K010 Valve Assy, Fuel Cut Off
77391 77391-B0010 Ring, Fuel Inlet Box
77391 77391-B0020 Ring, Fuel Inlet Box
77631 77631-BZ010 Protector, Fuel Tank, Lower Center
77631 77631-BZ061 Protector, Fuel Tank, Lower Center
9004105177 90041-05177 Plug(For Fuel Tank)
9004119260 90041-19260 New Genuine Part
9004119608 90041-19608 New Genuine Part
9004120084 90041-20084 New Genuine Part
9004189021 90041-89021 GROMMET SCREW
9004269027 90042-69027 Rivet
9004464119 90044-64119 Clamp, No.1(For Back Door Lock Control Cable)
9004464120 90044-64120 New Genuine Part
9004464371 90044-64371 New Genuine Part
9004464686 90044-64686 New Genuine Part
9004464770 90044-64770 New Genuine Part
9004467229 90044-67229 New Genuine Part
9004467244 90044-67244 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9004468290 90044-68290 New Genuine Part
9004480494 90044-80494 New Genuine Part
9046609001 90466-09001 Clip(For Fuel Vapor Feed Hose, No.1)
9162140612 91621-40612 BOLT W-WASHER
9165340616 91653-40616 New Genuine Part
9338115010 93381-15010 SCREW
9611130440 96111-30440 Clamp (For Fuel Filler Pipe)
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
