F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories

← Back to categories

2,601 items

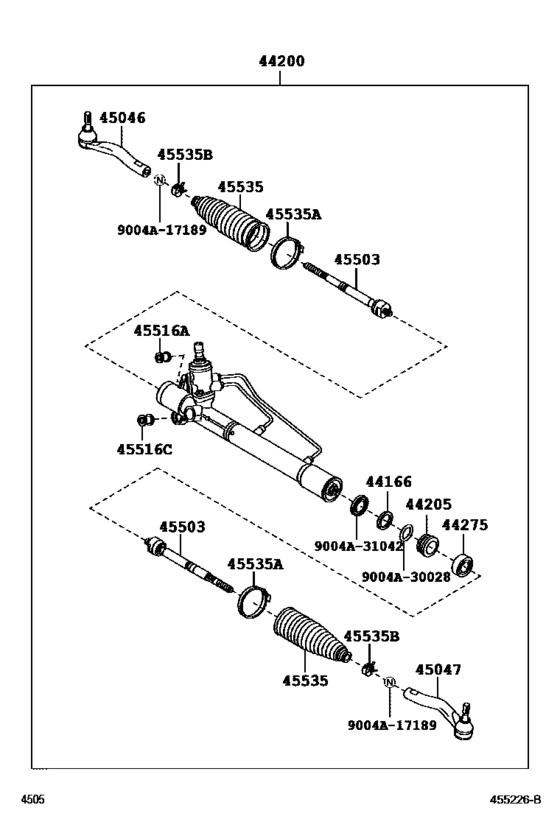

Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD) 11

#	OEM	Part name
44166	44166-BZ070	Ring, Seal, No.2
44200	44200-BZ040	Link Assy, Power Steering
44200	44200-BZ041	Link Assy, Power Steering
44205	44205-BZ030	Stopper Sub-Assy, Cylinder End
44275	44275-BZ040	Stopper, Cylinder End
45046	45046-BZ050	End Sub-Assy, Tie Rod, Rh
45047	45047-BZ050	End Sub-Assy, Tie Rod, Lh
45503	45503-BZ010	End Sub-Assy, Steering Rack
45516	45516-BZ140	Bush, Steering Rack Housing, No.1
45516	45516-BZ110	Bush, Steering Rack Housing, No.2 - STEERING RACK HOUSING, NO.1
45535	45535-BZ010	Boot, Steering Rack, No.1

OEM	Part name	Category
44166-BZ070	Ring, Seal, No.2	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
44200-BZ040	Link Assy, Power Steering	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
44200-BZ041	Link Assy, Power Steering	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
44205-BZ030	Stopper Sub-Assy, Cylinder End	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
44275-BZ040	Stopper, Cylinder End	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
45046-BZ050	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
45047-BZ050	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
45503-BZ010	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
45516-BZ110	Bush, Steering Rack Housing, No.2 - STEERING RACK HOUSING, NO.1	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
45516-BZ140	Bush, Steering Rack Housing, No.1	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
45535-BZ010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([08.2006 - ] (0608- )F602 ; (0608- )F601..LHD)
