Search › Model › F602

F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories

2,601 items

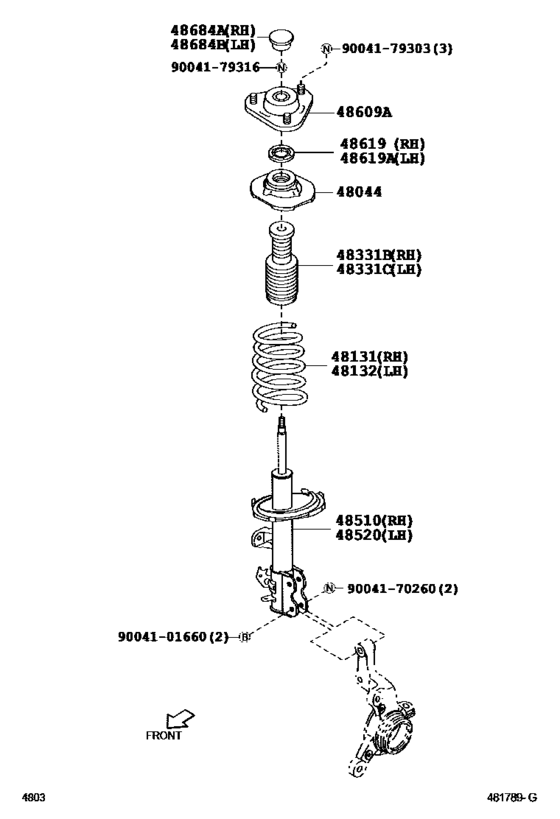

Front Spring & Shock Absorber ([12.2003 - ] (0312- )) 25

#	OEM	Part name
48044	48044-BZ010	Seat Sub- Assy, Front Spring, No.1
48131	48131-BZ160	Spring, Front Coil, Rh
48331	48331-BZ010	Bumper, Front Spring, Rh - FRONT SPRING, NO.1
48510	48510-BZ230	Absorber Assy, Shock, Front Rh
48510	48510-BZ220	Absorber Assy, Shock, Front Rh
48520	48520-BZ230	Absorber Assy, Shock, Front Lh
48520	48520-BZ220	Absorber Assy, Shock, Front Lh
48609	48609-BZ010	Support Sub-Assy, Front Suspension
48609	48609-BZ011	Support Sub-Assy, Front Suspension
48619	90043-85174	Bearing, Strut Mounting, Rh
48684	48684-BZ010	Cover, Bearing Dust
48811	48811-BZ030	Bar, Stabilizer, Front
48815	48815-BZ010	Bush, Front Stabilizer Bar, No.1
48820	48820-B0010	Link Assy, Front Stabilizer, Lh
48824	48824-BZ010	Bracket, Stabilizer, Front
48824	48809-BZ010	Bracket, Front Stabilizer, No.1 Rh
48829	48807-BZ010	Bracket, Front Stabilizer, No.1 Lh
9004101660	90041-01660	New Genuine Part
9004120261	90041-20261	Bolt(For Front Stabilizer)
9004170260	90041-70260	Nut(For Rear Suspension Arm)
9004171063	90041-71063	New Genuine Part
9004179303	90041-79303	Nut(For Front Support To Front Shock Absorber Rh)
9004179316	90041-79316	Nut, Shock Absorber Piston
9004468363	90044-68363	New Genuine Part
9167180825	91671-80825	Bolt, Compressor, No.1

OEM	Part name	Category
48044-BZ010	Seat Sub- Assy, Front Spring, No.1	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48131-BZ160	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48331-BZ010	Bumper, Front Spring, Rh - FRONT SPRING, NO.1	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48510-BZ220	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48510-BZ230	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48520-BZ220	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48520-BZ230	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48609-BZ010	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48609-BZ011	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48684-BZ010	Cover, Bearing Dust	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48807-BZ010	Bracket, Front Stabilizer, No.1 Lh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48809-BZ010	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48811-BZ030	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48815-BZ010	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48820-B0010	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
48824-BZ010	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90041-01660	New Genuine Part	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90041-20261	Bolt(For Front Stabilizer)	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90041-70260	Nut(For Rear Suspension Arm)	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90041-71063	New Genuine Part	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90041-79303	Nut(For Front Support To Front Shock Absorber Rh)	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90041-79316	Nut, Shock Absorber Piston	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90043-85174	Bearing, Strut Mounting, Rh	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
90044-68363	New Genuine Part	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))
91671-80825	Bolt, Compressor, No.1	Front Spring & Shock Absorber ([12.2003 - ] (0312- ))

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 153
Collected: 2026-08-02
