Search › Model › F602

F602

Toyota AVANZA · 2006 · 2,601 parts · 153 categories

2,601 items

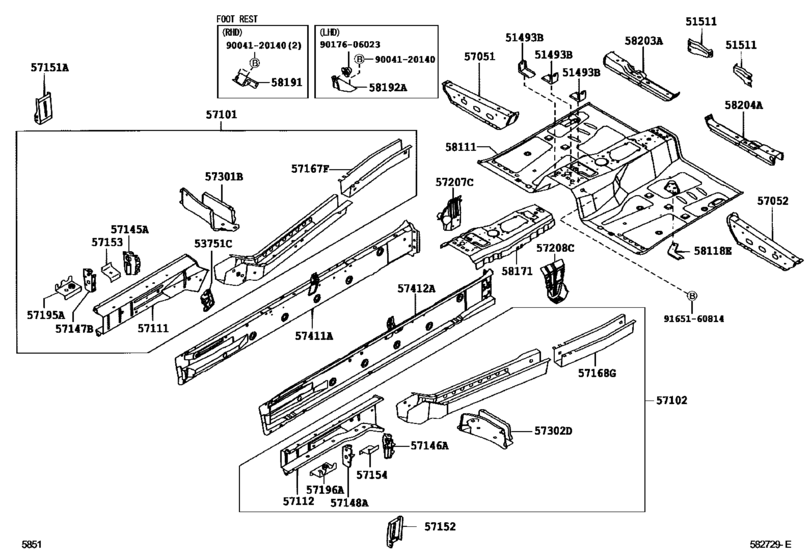

Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- )) 58

#	OEM	Part name
51493	51493-BZ010	Bracket, Under Guard, Fr No.1
51511	51511-BZ010	Gusset, Upper Control Arm Support, Rh
53751	53751-BZ010	Bracket, Charcoal Canister Mounting
57051	57051-BZ011	Member Sub-Assy, Front Floor Cross, Rh
57051	57051-BZ151	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-BZ011	Member Sub-Assy, Front Floor Cross, Lh
57052	57052-BZ101	Member Sub-Assy, Front Floor Cross, Lh
57101	57101-BZ071	Member Sub-Assy, Front Side, Rh
57101	57101-BZ110	Member Sub-Assy, Front Side, Rh
57102	57102-BZ061	Member Sub-Assy, Front Side, Lh
57102	57102-BZ230	Member Sub-Assy, Front Side, Lh
57111	57111-BZ090	Member, Front Side, Rh
57111	57111-BZ100	Member, Front Side, Rh
57111	57111-BZ140	Member, Front Side, Rh
57112	57112-BZ070	Member, Front Side, Lh
57112	57112-BZ080	Member, Front Side, Lh
57112	57112-BZ190	Member, Front Side, Lh
57145	51501-BZ010	Reinforcement, Front Side Member, Rear Rh
57146	51502-BZ010	Reinforcement, Front Side Member, Rear Lh
57147	57147-BZ010	Plate, Front Side Member, Rear Rh
57148	57148-BZ010	Plate, Front Side Member, Rear Lh
57151	57151-BZ040	Reinforcement, Front Side Member, No.1 Rh
57152	57152-BZ030	Reinforcement, Front Side Member, No.1 Lh
57152	57152-BZ060	Reinforcement, Front Side Member, No.1 Lh
57153	57153-BZ010	Reinforcement, Front Side Member, No.2 Rh
57154	57154-BZ010	Reinforcement, Front Side Member, No.2 Lh
57167	57167-BZ010	Reinforcement, Front Crossmember Side, Rh
57167	57167-BZ011	Reinforcement, Front Crossmember Side, Rh
57168	57168-BZ010	Member, Front Floor, Lh
57168	57168-BZ110	Member, Front Floor, Lh
57168	57168-BZ011	Member, Front Floor, Lh
57195	57195-BZ050	Reinforcement, Front Side Member, Front Rh
57196	57196-BZ030	Reinforcement, Front Side Member, Front Lh
57207	57207-BZ010	Bracket Sub-Assy, Engine Rear Mounting, Rh
57207	57207-BZ040	Bracket Sub-Assy, Engine Rear Mounting, Rh
57208	57208-BZ010	Bracket Sub-Assy, Engine Rear Mounting, Lh
57208	57208-BZ050	Bracket Sub-Assy, Engine Rear Mounting, Lh
57301	57301-BZ011	Outrigger Sub-Assy, No.1 Rh
57301	57301-BZ100	Outrigger Sub-Assy, No.1 Rh
57302	57302-BZ011	Outrigger Sub-Assy, No.1 Lh
57302	57302-BZ100	Outrigger Sub-Assy, No.1 Lh
57411	57401-BZ012	Member, Floor Side, Inner Rh
57411	57401-BZ180	Member, Floor Side, Inner Rh
57412	57402-BZ052	Member, Floor Side, Inner Lh
57412	57402-BZ042	Member, Floor Side, Inner Lh
58111	58111-BZ090	Pan, Front Floor
58118	58118-87Z02	Bracket, Jack Set
58171	58107-BZ050	Reinforcement, Parking Brake Base
58171	58107-BZ150	Reinforcement, Parking Brake Base
58191	58191-BZ010	Footrest, Front Floor
58203	58203-BZ010	Reinforcement Sub-Assy, Center Floor Panel, Rh
58203	58203-BZ040	Reinforcement Sub-Assy, Center Floor Panel, Rh
58204	58204-BZ010	Reinforcement Sub-Assy, Center Floor Panel, Lh
58204	58204-BZ040	Reinforcement Sub-Assy, Center Floor Panel, Lh
9004120140	90041-20140	New Genuine Part
9017606023	90176-06023	NUT CAP
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer

OEM	Part name	Category
51493-BZ010	Bracket, Under Guard, Fr No.1	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
51501-BZ010	Reinforcement, Front Side Member, Rear Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
51502-BZ010	Reinforcement, Front Side Member, Rear Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
51511-BZ010	Gusset, Upper Control Arm Support, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
53751-BZ010	Bracket, Charcoal Canister Mounting	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57051-BZ011	Member Sub-Assy, Front Floor Cross, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57051-BZ151	Member Sub-Assy, Front Floor Cross, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57052-BZ011	Member Sub-Assy, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57052-BZ101	Member Sub-Assy, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57101-BZ071	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57101-BZ110	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57102-BZ061	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57102-BZ230	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57111-BZ090	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57111-BZ100	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57111-BZ140	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57112-BZ070	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57112-BZ080	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57112-BZ190	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57147-BZ010	Plate, Front Side Member, Rear Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57148-BZ010	Plate, Front Side Member, Rear Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57151-BZ040	Reinforcement, Front Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57152-BZ030	Reinforcement, Front Side Member, No.1 Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57152-BZ060	Reinforcement, Front Side Member, No.1 Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57153-BZ010	Reinforcement, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57154-BZ010	Reinforcement, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57167-BZ010	Reinforcement, Front Crossmember Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57167-BZ011	Reinforcement, Front Crossmember Side, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57168-BZ010	Member, Front Floor, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57168-BZ011	Member, Front Floor, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57168-BZ110	Member, Front Floor, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57195-BZ050	Reinforcement, Front Side Member, Front Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57196-BZ030	Reinforcement, Front Side Member, Front Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57207-BZ010	Bracket Sub-Assy, Engine Rear Mounting, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57207-BZ040	Bracket Sub-Assy, Engine Rear Mounting, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57208-BZ010	Bracket Sub-Assy, Engine Rear Mounting, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57208-BZ050	Bracket Sub-Assy, Engine Rear Mounting, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57301-BZ011	Outrigger Sub-Assy, No.1 Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57301-BZ100	Outrigger Sub-Assy, No.1 Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57302-BZ011	Outrigger Sub-Assy, No.1 Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57302-BZ100	Outrigger Sub-Assy, No.1 Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57401-BZ012	Member, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57401-BZ180	Member, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57402-BZ042	Member, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
57402-BZ052	Member, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58107-BZ050	Reinforcement, Parking Brake Base	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58107-BZ150	Reinforcement, Parking Brake Base	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58111-BZ090	Pan, Front Floor	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58118-87Z02	Bracket, Jack Set	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58191-BZ010	Footrest, Front Floor	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58203-BZ010	Reinforcement Sub-Assy, Center Floor Panel, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58203-BZ040	Reinforcement Sub-Assy, Center Floor Panel, Rh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58204-BZ010	Reinforcement Sub-Assy, Center Floor Panel, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
58204-BZ040	Reinforcement Sub-Assy, Center Floor Panel, Lh	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
90041-20140	New Genuine Part	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
90176-06023	NUT CAP	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))
91651-B0814	Bolt with washer	Front Floor Panel & Front Floor Member ([08.2006 - ] (0608- ))

Source: Public OEM parts-catalog data
Variants: 2 / 36
Category: 153
Collected: 2026-08-02
