Search › Model › F601

F601

Toyota AVANZA · 2003 · 2,181 parts · 141 categories

2,181 items

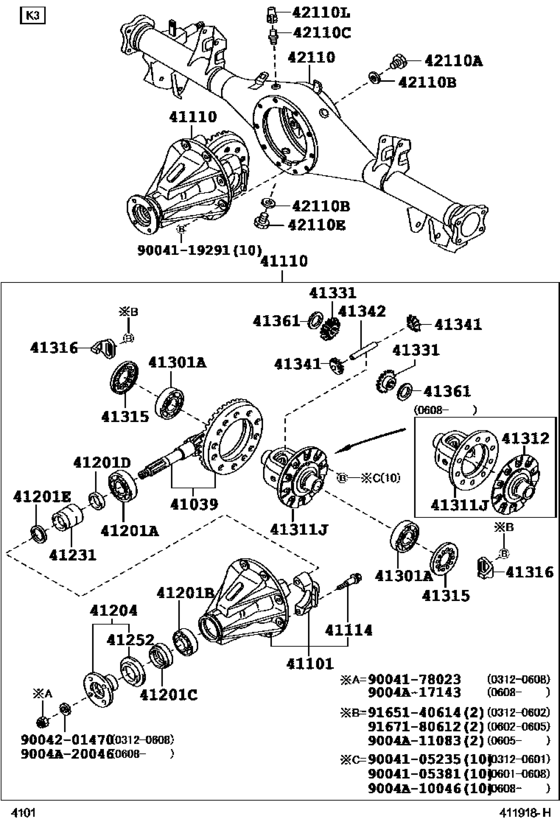

Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601) 53

#	OEM	Part name
41039	41039-BZ010	Gear Kit, Differential, Rear
41101	41101-BZ010	Carrier Sub-Assy, Differential, Rear
41110	41110-BZ040	Carrier Assy, Differential, Rear
41110	41110-BZ220	Carrier Assy, Differential, Rear
41114	41114-BZ010	Bolt, Rear Differential Bearing Cap
41114	41114-87401	Bolt, Rear Differential Bearing Cap
41204	41204-BZ021	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41231	41231-BZ010	Spacer, Rear Differential Drive Pinion Bearing
41231	41231-87404	Spacer, Rear Differential Drive Pinion Bearing
41231	41231-BZ020	Spacer, Rear Differential Drive Pinion Bearing
41252	41252-BZ010	Deflector, Dust (For Rear Differential)
41252	41252-87503	Deflector, Dust (For Rear Differential)
41301	90043-66075	Bearing(For Rear Differential Case)
41311	41311-BZ020	Case, Rear Differential
41311	41311-B4011	Case, Rear Differential
41311	41311-BZ021	Case, Rear Differential
41312	41312-BZ010	Cover, Differential Case
41312	41312-B4011	Cover, Differential Case
41315	41315-BZ010	Nut, Rear Differential Bearing Adjusting
41315	41315-87503	Nut, Rear Differential Bearing Adjusting
41316	41316-BZ010	Lock, Rear Differential Bearing Adjusting Nut
41316	41316-87501	Lock, Rear Differential Bearing Adjusting Nut
41331	41331-BZ010	Gear, Rear Differential Side
41331	41331-87407	Gear, Rear Differential Side
41341	41341-BZ010	Pinion, Rear Differential
41341	41341-87406	Pinion, Rear Differential
41342	41342-BZ020	Shaft, Rear Differential Pinion
41342	41342-87402	Shaft, Rear Differential Pinion
41361	41361-BZ010	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-87407	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-BZ020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-87408	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-BZ030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-87409	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-BZ040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-87509	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-BZ050	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-87510	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-BZ060	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-87709	Washer, Rear Differential Side Gear Thrust, No.1
42110	42110-BZ050	Housing Assy, Rear Axle
42110	90043-41046	Plug(For Rear Differential Carrier)
42110	90044-30237	Gasket (For Rear Axle Housing Filler Plug)
42110	12157-10010	Gasket (For Drain Plug)
42110	90049-15026	Plug(For Clutch Housing)
42110	90043-41068	Plug (For Transfer Drain)
9004105235	90041-05235	Bolt
9004105381	90041-05381	New Genuine Part
9004119291	90041-19291	Bolt (For Rear Differential Carrier)
9004178023	90041-78023	New Genuine Part
9004201470	90042-01470	New Genuine Part
9165140614	91651-40614	Bolt
9167180612	91671-80612	Bolt

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41039-BZ010	Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41101-BZ010	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41110-BZ040	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41110-BZ220	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41114-87401	Bolt, Rear Differential Bearing Cap	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41114-BZ010	Bolt, Rear Differential Bearing Cap	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41204-BZ021	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41231-87404	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41231-BZ010	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41231-BZ020	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41252-87503	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41252-BZ010	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41311-B4011	Case, Rear Differential	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41311-BZ020	Case, Rear Differential	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41311-BZ021	Case, Rear Differential	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41312-B4011	Cover, Differential Case	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41312-BZ010	Cover, Differential Case	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41315-87503	Nut, Rear Differential Bearing Adjusting	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41315-BZ010	Nut, Rear Differential Bearing Adjusting	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41316-87501	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41316-BZ010	Lock, Rear Differential Bearing Adjusting Nut	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41331-87407	Gear, Rear Differential Side	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41331-BZ010	Gear, Rear Differential Side	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41341-87406	Pinion, Rear Differential	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41341-BZ010	Pinion, Rear Differential	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41342-87402	Shaft, Rear Differential Pinion	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41342-BZ020	Shaft, Rear Differential Pinion	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-87407	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-87408	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-87409	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-87509	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-87510	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-87709	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-BZ010	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-BZ020	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-BZ030	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-BZ040	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-BZ050	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
41361-BZ060	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
42110-BZ050	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90041-05235	Bolt	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90041-05381	New Genuine Part	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90041-19291	Bolt (For Rear Differential Carrier)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90041-78023	New Genuine Part	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90042-01470	New Genuine Part	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90043-41046	Plug(For Rear Differential Carrier)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90043-41068	Plug (For Transfer Drain)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90043-66075	Bearing(For Rear Differential Case)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90044-30237	Gasket (For Rear Axle Housing Filler Plug)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
90049-15026	Plug(For Clutch Housing)	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
91651-40614	Bolt	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
91671-80612	Bolt	Rear Axle Housing & Differential ([12.2003 - ] K3 (0312- )F601)
