F601

Toyota AVANZA · 2003 · 2,181 parts · 141 categories

← Back to categories

2,181 items

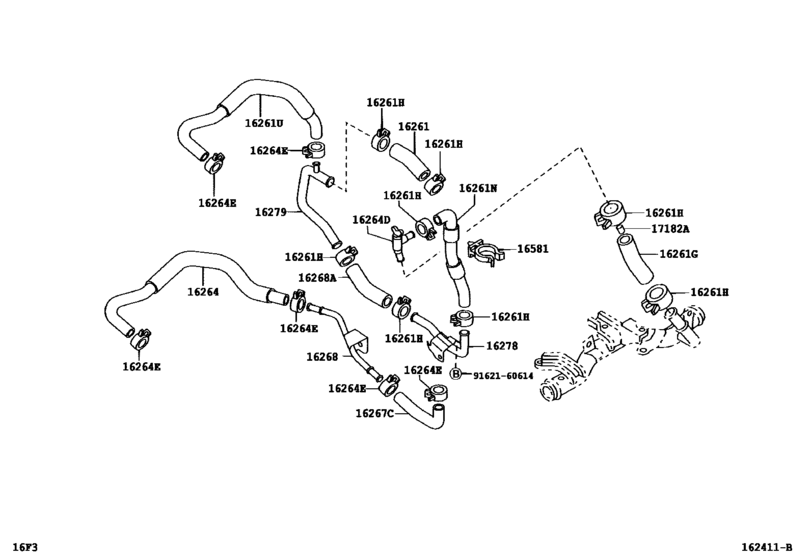

Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI) 6

#	OEM	Part name
16261	16261-BZ020	Hose, Water By-Pass
16261	16261-BZ030	Hose, Water By-Pass, No.1
16261	90044-67485	Clip(For Water By-Pass Hose No.2)
16268	16268-BZ010	Pipe, Water By-Pass, No.1
17182	17182-BZ020	Orifice, Water
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
16261-BZ020	Hose, Water By-Pass	Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI)
16261-BZ030	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI)
16268-BZ010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI)
17182-BZ020	Orifice, Water	Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI)
90044-67485	Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI)
91621-60614	Bolt(For Transaxle & Engine Setting)	Radiator & Water Outlet ([10.2004 - ] (0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#.. 5F..IDN,MA..PS1 ; (0410- )K3VE.. 4AT..G,GL,LIMD,S, XI)
