F601

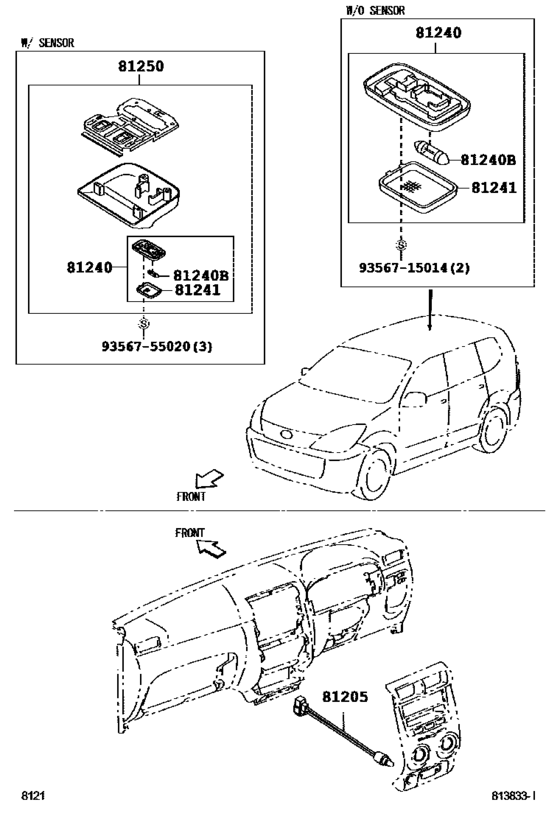

Interior Lamp ([08.2006 - ] (0608- )) 7
| # | OEM | Part name |
|---|---|---|
| 81205 | 81205-97201 | Lamp Sub-Assy, Ash Receptacle |
| 81240 | 81240-BZ010-E0 | Lamp Assy, Room, No.1 |
| 81240 | 90049-51153 | Bulb, Room Lamp, No.1 |
| 81241 | 81241-BZ010 | Lens, Room Lamp, No.1 - ROOM LAMP, NO.2 |
| 9356715014 | 93567-15014 | Direct |
| 9356715014 | 93568-55014 | Screw |
| 9356755020 | 93567-55020 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 81205-97201 | Lamp Sub-Assy, Ash Receptacle | Interior Lamp ([08.2006 - ] (0608- )) |
| 81240-BZ010-E0 | Lamp Assy, Room, No.1 | Interior Lamp ([08.2006 - ] (0608- )) |
| 81241-BZ010 | Lens, Room Lamp, No.1 - ROOM LAMP, NO.2 | Interior Lamp ([08.2006 - ] (0608- )) |
| 90049-51153 | Bulb, Room Lamp, No.1 | Interior Lamp ([08.2006 - ] (0608- )) |
| 93567-15014 | Direct | Interior Lamp ([08.2006 - ] (0608- )) |
| 93567-55020 | SCREW | Interior Lamp ([08.2006 - ] (0608- )) |
| 93568-55014 | Screw | Interior Lamp ([08.2006 - ] (0608- )) |
