F601

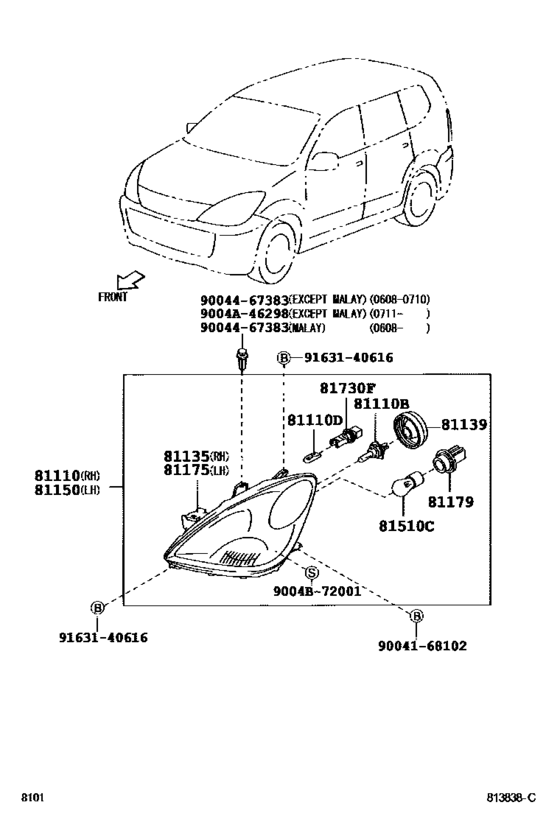

Headlamp ([08.2006 - ] (0608- )) 12
| # | OEM | Part name |
|---|---|---|
| 81110 | 81110-BZ050 | Headlamp Assy, Rh |
| 81110 | 90049-51125 | Bulb(For Headlamp, No.1) |
| 81135 | 81130-BZ030 | Unit Assy, Headlamp, Rh |
| 81139 | 81139-BZ010 | Cover, Headlamp Socket |
| 81150 | 81150-BZ050 | Headlamp Assy, Lh |
| 81175 | 81170-BZ030 | Unit Assy, Headlamp, Lh |
| 81179 | 81179-BZ010 | Cover, Headlamp Socket |
| 81510 | 99132-11210 | Bulb (12V 21W) |
| 81730 | 90075-60046 | Socket Plug, No.1 |
| 9004168102 | 90041-68102 | SCREW TAPPING |
| 9004467383 | 90044-67383 | Clip(For Front Bumper), No.2 |
| 9163140616 | 91631-40616 | Bolt(For Head To Camshaft Bearing Cap) |
| OEM | Part name | Category |
|---|---|---|
| 81110-BZ050 | Headlamp Assy, Rh | Headlamp ([08.2006 - ] (0608- )) |
| 81130-BZ030 | Unit Assy, Headlamp, Rh | Headlamp ([08.2006 - ] (0608- )) |
| 81139-BZ010 | Cover, Headlamp Socket | Headlamp ([08.2006 - ] (0608- )) |
| 81150-BZ050 | Headlamp Assy, Lh | Headlamp ([08.2006 - ] (0608- )) |
| 81170-BZ030 | Unit Assy, Headlamp, Lh | Headlamp ([08.2006 - ] (0608- )) |
| 81179-BZ010 | Cover, Headlamp Socket | Headlamp ([08.2006 - ] (0608- )) |
| 90041-68102 | SCREW TAPPING | Headlamp ([08.2006 - ] (0608- )) |
| 90044-67383 | Clip(For Front Bumper), No.2 | Headlamp ([08.2006 - ] (0608- )) |
| 90049-51125 | Bulb(For Headlamp, No.1) | Headlamp ([08.2006 - ] (0608- )) |
| 90075-60046 | Socket Plug, No.1 | Headlamp ([08.2006 - ] (0608- )) |
| 91631-40616 | Bolt(For Head To Camshaft Bearing Cap) | Headlamp ([08.2006 - ] (0608- )) |
| 99132-11210 | Bulb (12V 21W) | Headlamp ([08.2006 - ] (0608- )) |
