Search › Model › F601

F601

Toyota AVANZA · 2003 · 2,181 parts · 141 categories

2,181 items

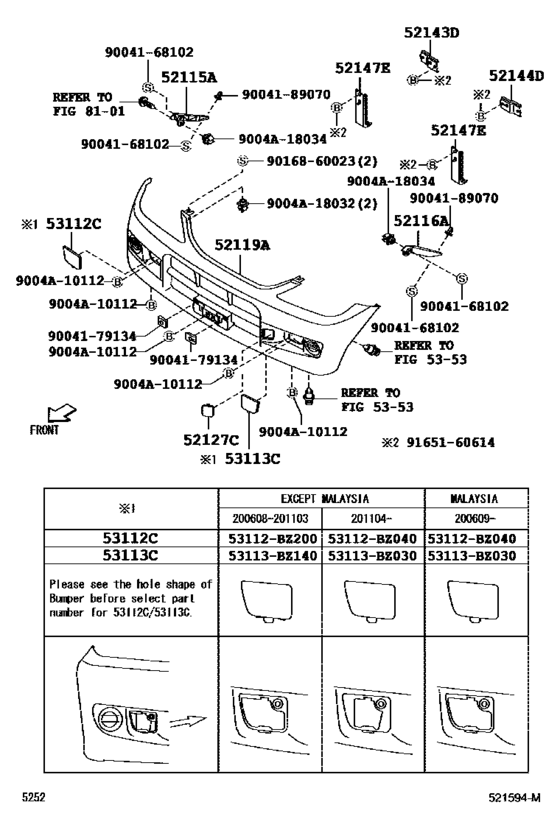

Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G) 20

#	OEM	Part name
9004	90041-09231	New Genuine Part
9004	90041-89075	GROMMET SCREW
52115	52115-BZ040	Support, Front Bumper Side, Rh
52116	52116-BZ040	Support, Front Bumper Side, Lh
52119	52119-BZ330	Cover, Front Bumper
52127	52127-BZ150	Cover, Front Bumper Hole
52143	52143-BZ020	Bracket, Front Bumper Side, Rh
52143	52143-BZ070	Bracket, Front Bumper Side, Rh
52147	52147-BZ030	Bracket, Front Bumper Mounting, Rh
52147	52147-BZ170	Bracket, Front Bumper Mounting, Rh
53112	53112-BZ040	Grille, Radiator, Lower Rh
53112	53112-BZ200	Grille, Radiator, Lower Rh
53113	53113-BZ030	Grille, Radiator, Lower Lh
53113	53113-BZ140	Grille, Radiator, Lower Lh
9004168102	90041-68102	SCREW TAPPING
9004179134	90041-79134	NUT
9004189070	90041-89070	New Genuine Part
9004189070	90041-89091	New Genuine Part
9016860023	90168-60023	SCREW TAPPING
9165160614	91651-60614	Bolt

OEM	Part name	Category
52115-BZ040	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52116-BZ040	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52119-BZ330	Cover, Front Bumper	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52127-BZ150	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52143-BZ020	Bracket, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52143-BZ070	Bracket, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52147-BZ030	Bracket, Front Bumper Mounting, Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
52147-BZ170	Bracket, Front Bumper Mounting, Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
53112-BZ040	Grille, Radiator, Lower Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
53112-BZ200	Grille, Radiator, Lower Rh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
53113-BZ030	Grille, Radiator, Lower Lh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
53113-BZ140	Grille, Radiator, Lower Lh	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90041-09231	New Genuine Part	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90041-68102	SCREW TAPPING	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90041-79134	NUT	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90041-89070	New Genuine Part	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90041-89075	GROMMET SCREW	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90041-89091	New Genuine Part	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
90168-60023	SCREW TAPPING	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)
91651-60614	Bolt	Front Bumper & Bumper Stay ([08.2006 - ] (0608- )F601 ; (0608- )LHD..G)

Source: Public OEM parts-catalog data
Variants: 2 / 48
Category: 141
Collected: 2026-08-02
