F601

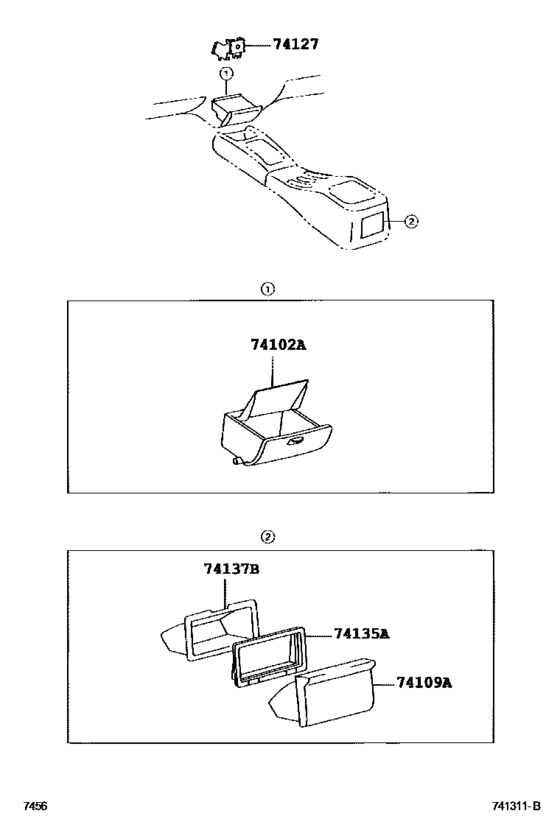

Ash Receptacle ([12.2003 - ] (0312- )) 5
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-BZ010-E1 | Receptacle Assy, Front Ash |
| 74109 | 74109-0B010-E2 | Box Sub-Assy, Ash Receptacle |
| 74127 | 74128-BZ010 | Bezel, Front Ash Receptacle |
| 74135 | 74135-0B010 | Retainer, Rear Ash Receptacle, No.1 |
| 74137 | 74137-0B010 | Retainer, Rear Ash Receptacle, Inner |
| OEM | Part name | Category |
|---|---|---|
| 74102-BZ010-E1 | Receptacle Assy, Front Ash | Ash Receptacle ([12.2003 - ] (0312- )) |
| 74109-0B010-E2 | Box Sub-Assy, Ash Receptacle | Ash Receptacle ([12.2003 - ] (0312- )) |
| 74128-BZ010 | Bezel, Front Ash Receptacle | Ash Receptacle ([12.2003 - ] (0312- )) |
| 74135-0B010 | Retainer, Rear Ash Receptacle, No.1 | Ash Receptacle ([12.2003 - ] (0312- )) |
| 74137-0B010 | Retainer, Rear Ash Receptacle, Inner | Ash Receptacle ([12.2003 - ] (0312- )) |
