F50

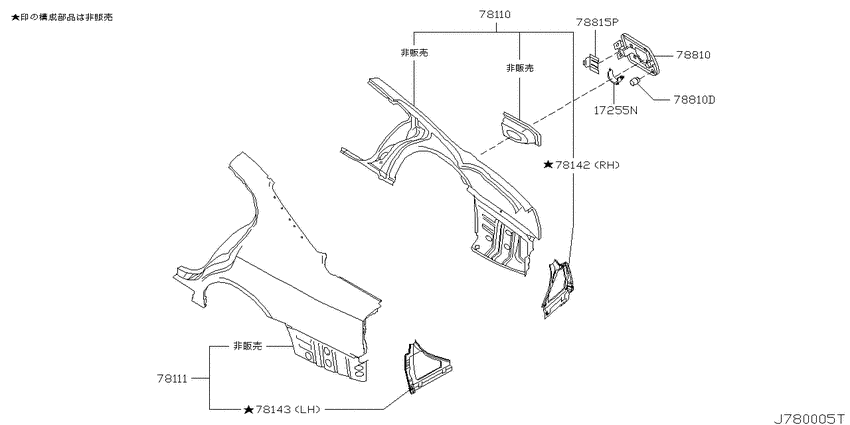

Rear fender & fitting (2008-02-01 ~ ; S) 8
| # | OEM | Part name |
|---|---|---|
| 78110 | 78100-AR030 | Fender-Rear, Rh |
| 78110 | 78100-AT630 | Fender-Rear, Rh |
| 78111 | 78101-AR030 | Fender-Rear, Lh |
| 78111 | 78101-AT630 | Fender-Rear, Lh |
| 78142 | 78140-AT600 | Base-Rear Combination Lamp, Rh |
| 78143 | 78141-AT600 | Base-Rear Combination Lamp, Lh |
| 78810 | 78830-AR000 | Lid-Gas Filler |
| 78815 | 78836-AG000 | Spring-Fuel Filler |
| OEM | Part name | Category |
|---|---|---|
| 78100-AR030 | Fender-Rear, Rh | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78100-AT630 | Fender-Rear, Rh | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78101-AR030 | Fender-Rear, Lh | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78101-AT630 | Fender-Rear, Lh | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78140-AT600 | Base-Rear Combination Lamp, Rh | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78141-AT600 | Base-Rear Combination Lamp, Lh | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78830-AR000 | Lid-Gas Filler | Rear fender & fitting (2008-02-01 ~ ; S) |
| 78836-AG000 | Spring-Fuel Filler | Rear fender & fitting (2008-02-01 ~ ; S) |
