F50

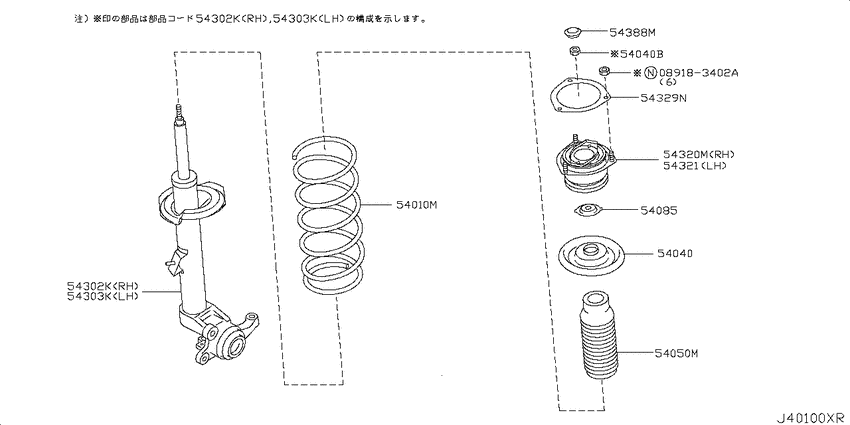

Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) 7
| # | OEM | Part name |
|---|---|---|
| 54010 | 54010-AR503 | Spring-Front |
| 54010 | 54010-AR50A | Spring-Front |
| 54040 | 54040-5P500 | Seat Assy-Front Spring, Upper |
| 54050 | 54050-5P500 | Bumper Assy-Bound |
| 54302 | 54302-AR526 | Strut Kit-Front Suspension, Rh |
| 54320 | 54320-5P502 | Insulator Assy-Strut Mounting, Rh |
| 54321 | 54321-5P502 | Insulator Assy-Strut Mounting, Lh |
| OEM | Part name | Category |
|---|---|---|
| 54010-AR503 | Spring-Front | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
| 54010-AR50A | Spring-Front | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
| 54040-5P500 | Seat Assy-Front Spring, Upper | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
| 54050-5P500 | Bumper Assy-Bound | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
| 54302-AR526 | Strut Kit-Front Suspension, Rh | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
| 54320-5P502 | Insulator Assy-Strut Mounting, Rh | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
| 54321-5P502 | Insulator Assy-Strut Mounting, Lh | Front suspension (2008-02-01 ~ ; ストラット; VK45DE.AT.F4) |
