Search › Model › F50

F50

Nissan CIMA · 2001 · 3,905 parts · 416 categories

3,905 items

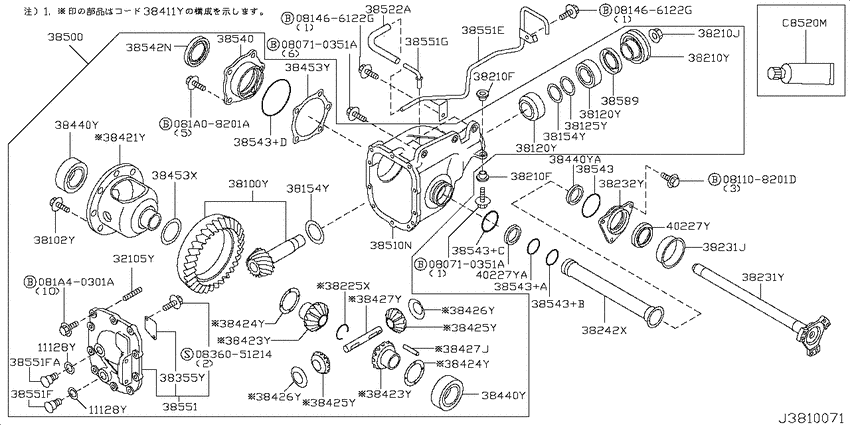

Front final drive (2008-02-01 ~ 2008-03-01; VK45DE) 95

#	OEM	Part name
32105	32105-0P000	Pin-Dowel
38100	38100-AR560	Gear Set-Final Drive
38102	38102-4N200	Bolt-Drive Gear
38120	38120-03V0A	Bearing-Drive Pinion
38125	38128-61001	Washer-Adjust, Drive Pinion Bearing
38125	38132-61001	Washer-Adjust, Drive Pinion Bearing
38125	38133-61001	Washer-Adjust, Drive Pinion Bearing
38125	38136-61001	Washer-Adjust, Drive Pinion Bearing
38125	38137-61001	Washer-Adjust, Drive Pinion Bearing
38125	38138-61001	Washer-Adjust, Drive Pinion Bearing
38125	38139-61001	Washer-Adjust, Drive Pinion Bearing
38154	38151-AR000	Washer-Adjust, Drive Pinion
38154	38153-AR09E	Washer-Adjust, Drive Pinion
38154	38151-AR001	Washer-Adjust, Drive Pinion
38154	38151-AR002	Washer-Adjust, Drive Pinion
38154	38151-AR003	Washer-Adjust, Drive Pinion
38154	38151-AR004	Washer-Adjust, Drive Pinion
38154	38154-U1509	Washer-Adjust, Drive Pinion
38154	38154-U1511	Washer-Adjust, Drive Pinion
38154	38154-U1512	Washer-Adjust, Drive Pinion
38154	38154-U1514	Washer-Adjust, Drive Pinion
38154	38154-U1515	Washer-Adjust, Drive Pinion
38154	38154-U1517	Washer-Adjust, Drive Pinion
38210	12307-0P000	Bush
38210	12307-0P00A	Bush
38210	38216-U3000	Nut
38210	38216-U301A	Nut-Drive Pinion
38210	38210-CG000	Flange Assy-Companion
38231	39252-AR000	Shield-Dust
38231	39252-AR00A	Shield-Dust
38231	38231-AR000	Shaft-Side Differential
38232	38232-0P000	Retainer-Extension Tube
38242	38242-AR000	Pipe Axle
38355	38355-AR000	Defense-Gear Oil
38411	38420-AR000	Case Compl-Differential
38421	38421-AR000	Case-Differential
38423	38423-W1000	Gear-Side
38423	38423-W100A	Gear-Side
38424	38424-W1010	Washer-Thrust, Side Gear
38424	38424-W1011	Washer-Thrust, Side Gear
38424	38424-W1012	Washer-Thrust, Side Gear
38424	38424-W1013	Washer-Thrust, Side Gear
38424	38424-W1014	Washer-Thrust, Side Gear
38424	38424-W1015	Washer-Thrust, Side Gear
38424	38424-W1016	Washer-Thrust, Side Gear
38424	38424-W1017	Washer-Thrust, Side Gear
38424	38424-W1018	Washer-Thrust, Side Gear
38424	38424-W1019	Washer-Thrust, Side Gear
38425	38425-01M05	Pinion-Mate
38425	38425-01M0A	Pinion-Mate
38426	38426-N1908	Washer-Thrust, Pinion Mate
38427	38427-AR000	Shaft-Pinion Mate
38440	38440-AR000	Bearing-Differential Side
38440	38440-AR00A	Bearing-Differential Side
38440	38440-03V10	Bearing-Side Shaft
38453	38453-AR000	Shim-Adjust, Side Bearing Retainer
38453	38453-AR001	Shim-Adjust, Side Bearing Retainer
38453	38453-AR002	Shim-Adjust, Side Bearing Retainer
38453	38453-AR003	Shim-Adjust, Side Bearing Retainer
38453	38453-AR004	Shim-Adjust, Side Bearing Retainer
38453	38453-AR010	Shim-Adjust, Side Bearing Retainer
38453	38453-AR011	Shim-Adjust, Side Bearing Retainer
38453	38453-AR012	Shim-Adjust, Side Bearing Retainer
38453	38453-AR013	Shim-Adjust, Side Bearing Retainer
38453	38453-AR014	Shim-Adjust, Side Bearing Retainer
38453	38453-AR015	Shim-Adjust, Side Bearing Retainer
38453	38453-AR016	Shim-Adjust, Side Bearing Retainer
38453	38453-AR017	Shim-Adjust, Side Bearing Retainer
38453	38453-AR018	Shim-Adjust, Side Bearing Retainer
38500	38500-AR005	Final Drive Assy-Front
38500	38500-AR015	Final Drive Assy-Front
38510	38511-AR000	Housing-Front Final Drive
38510	38511-AR00A	Housing-Front Final Drive
38510	38511-AR00B	Housing-Front Final Drive
38522	31098-AR505	Hose-Breather
38540	38341-AR000	Retainer-Side Bearing
38542	38342-03V00	Seal-Oil, Side Bearing Retainer
38543	38343-0P012	Seal-O Ring, Side Retainer
38543	38343-0P014	Seal-O Ring, Side Retainer
38543	38343-AR000	Seal-O Ring, Side Retainer
38551	38350-AR000	Cover-Front, Final Drive
38551	38351-AR00A	Cover-Front, Final Drive
38551	31098-AR500	Tube-Breather
38551	32103-4N200	Plug-Drain
38551	32103-1MB0C	Plug-Drain
38551	32103-1MG0A	Plug-Drain
38551	32103-4N211	Plug-Filler
38551	32103-1MG0D	Plug-Filler
38551	32103-1MG0B	Plug-Filler
38551	38322-AR500	Breather-Final Drive
38589	38189-AR001	Seal-Oil, Drive Pinion
40227	40227-0P002	Seal-Grease, Side Shaft
40227	40227-0P001	Seal-Grease, Side Shaft
80710351	08071-0351A	Bolt-hexagon
836051214	08360-51214	スクリユ-,マシン

OEM	Part name	Category
08071-0351A	Bolt-hexagon	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
08360-51214	スクリユ-,マシン	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
12307-0P000	Bush	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
12307-0P00A	Bush	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
31098-AR500	Tube-Breather	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
31098-AR505	Hose-Breather	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32103-1MB0C	Plug-Drain	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32103-1MG0A	Plug-Drain	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32103-1MG0B	Plug-Filler	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32103-1MG0D	Plug-Filler	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32103-4N200	Plug-Drain	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32103-4N211	Plug-Filler	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
32105-0P000	Pin-Dowel	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38100-AR560	Gear Set-Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38102-4N200	Bolt-Drive Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38120-03V0A	Bearing-Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38128-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38132-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38133-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38136-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38137-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38138-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38139-61001	Washer-Adjust, Drive Pinion Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38151-AR000	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38151-AR001	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38151-AR002	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38151-AR003	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38151-AR004	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38153-AR09E	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38154-U1509	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38154-U1511	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38154-U1512	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38154-U1514	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38154-U1515	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38154-U1517	Washer-Adjust, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38189-AR001	Seal-Oil, Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38210-CG000	Flange Assy-Companion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38216-U3000	Nut	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38216-U301A	Nut-Drive Pinion	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38231-AR000	Shaft-Side Differential	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38232-0P000	Retainer-Extension Tube	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38242-AR000	Pipe Axle	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38322-AR500	Breather-Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38341-AR000	Retainer-Side Bearing	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38342-03V00	Seal-Oil, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38343-0P012	Seal-O Ring, Side Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38343-0P014	Seal-O Ring, Side Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38343-AR000	Seal-O Ring, Side Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38350-AR000	Cover-Front, Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38351-AR00A	Cover-Front, Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38355-AR000	Defense-Gear Oil	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38420-AR000	Case Compl-Differential	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38421-AR000	Case-Differential	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38423-W1000	Gear-Side	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38423-W100A	Gear-Side	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1010	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1011	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1012	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1013	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1014	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1015	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1016	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1017	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1018	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38424-W1019	Washer-Thrust, Side Gear	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38425-01M05	Pinion-Mate	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38425-01M0A	Pinion-Mate	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38426-N1908	Washer-Thrust, Pinion Mate	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38427-AR000	Shaft-Pinion Mate	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38440-03V10	Bearing-Side Shaft	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38440-AR000	Bearing-Differential Side	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38440-AR00A	Bearing-Differential Side	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR000	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR001	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR002	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR003	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR004	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR010	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR011	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR012	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR013	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR014	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR015	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR016	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR017	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38453-AR018	Shim-Adjust, Side Bearing Retainer	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38500-AR005	Final Drive Assy-Front	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38500-AR015	Final Drive Assy-Front	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38511-AR000	Housing-Front Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38511-AR00A	Housing-Front Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
38511-AR00B	Housing-Front Final Drive	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
39252-AR000	Shield-Dust	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
39252-AR00A	Shield-Dust	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
40227-0P001	Seal-Grease, Side Shaft	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)
40227-0P002	Seal-Grease, Side Shaft	Front final drive (2008-02-01 ~ 2008-03-01; VK45DE)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 416
Collected: 2026-07-27
