F50

Nissan CIMA · 2001 · 3,905 parts · 416 categories

3,905 items

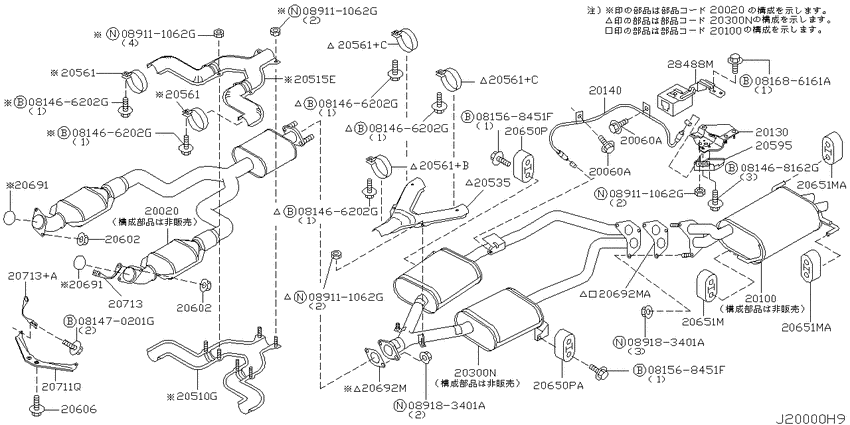

Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4) 22

#	OEM	Part name
20020	20020-AT525	Tube Assy-Exhaust, Front
20020	20020-AT526	Tube Assy-Exhaust, Front
20060	54459-0P005	Bolt
20130	20130-AR200	Actuator Assy-Exhaust
20140	20140-AT300	Wire Assy-Exhaust
20510	20510-AR500	Insulator Assy-Front Tube
20515	20515-AR500	Insulator Assy-Front Tube
20535	20535-AR500	Insulator Assy-Center Tube, Upper
20561	20561-90F00	Clamp-Insulator
20561	20561-10Y00	Clamp-Insulator
20595	20595-AR200	Insulator-Heat, Exhaust
20602	20602-41G00	Nut-Fix, Exhaust Tube
20606	20606-AF400	Bolt-Special
20606	20606-AF40A	Bolt-Special
20692	20692-AR000	Gasket-Exhaust
20711	20711-AT500	Mounting Assy-Exhaust
20713	20713-AR00A	Bracket-Exhaust Tube Mounting
20713	20713-AR010	Bracket-Exhaust Tube Mounting
20713	20713-AR01A	Bracket-Exhaust Tube Mounting
28488	28488-AR200	Control Assy-Muffler
28488	28488-AR20A	Control Assy-Muffler
81568451	08156-8451F	ボルト

OEM	Part name	Category
08156-8451F	ボルト	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20020-AT525	Tube Assy-Exhaust, Front	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20020-AT526	Tube Assy-Exhaust, Front	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20130-AR200	Actuator Assy-Exhaust	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20140-AT300	Wire Assy-Exhaust	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20510-AR500	Insulator Assy-Front Tube	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20515-AR500	Insulator Assy-Front Tube	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20535-AR500	Insulator Assy-Center Tube, Upper	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20561-10Y00	Clamp-Insulator	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20561-90F00	Clamp-Insulator	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20595-AR200	Insulator-Heat, Exhaust	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20602-41G00	Nut-Fix, Exhaust Tube	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20606-AF400	Bolt-Special	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20606-AF40A	Bolt-Special	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20692-AR000	Gasket-Exhaust	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20711-AT500	Mounting Assy-Exhaust	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20713-AR00A	Bracket-Exhaust Tube Mounting	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20713-AR010	Bracket-Exhaust Tube Mounting	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
20713-AR01A	Bracket-Exhaust Tube Mounting	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
28488-AR200	Control Assy-Muffler	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
28488-AR20A	Control Assy-Muffler	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
54459-0P005	Bolt	Exhaust tube & muffler (2003-11-01 ~ ; VK45DE.AT.F4)
