Search › Model › F50

F50

Nissan CIMA · 2001 · 3,905 parts · 416 categories

← Back to categories

3,905 items

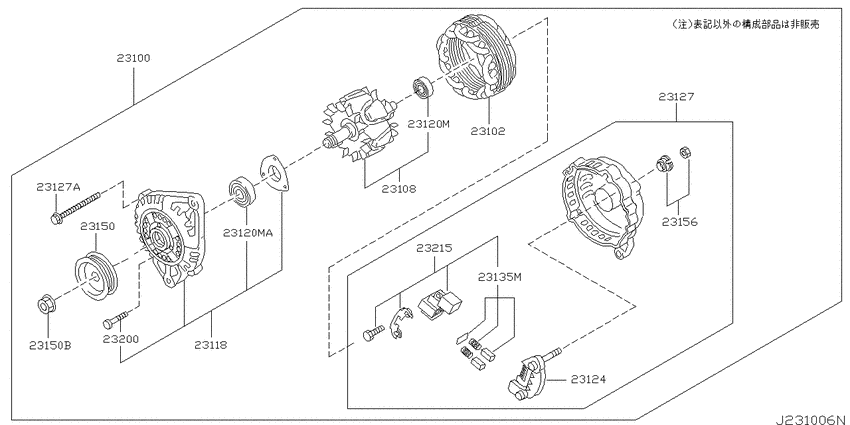

Alternator (2008-02-01 ~ ; VK45DE) 18

#	OEM	Part name
23100	23100-AR000	Alternator Assy
23100	23100-AR00A	Alternator Assy
23102	23102-AU401	Stator Assy
23108	23108-9Y500	Rotor Assy
23108	23108-CN10A	Rotor Assy
23108	23108-CN10B	Rotor Assy
23118	23118-40U00	Cover Assy-Front
23118	23118-AR00A	Cover Assy-Front
23120	23120-0M000	Bearing-Ball
23120	23120-0M005	Bearing-Ball
23124	23124-AR001	Rectifier Assy
23124	23124-AR00A	Rectifier Assy
23127	23127-AR00A	Cover Assy-Rear
23135	23142-31U00	Brush-F
23150	23150-2Y000	Pulley Assy
23150	23150-AR00A	Pulley Assy
23200	23200-0M000	Screw Set
23200	23200-CN10A	Screw Set

OEM	Part name	Category
23100-AR000	Alternator Assy	Alternator (2008-02-01 ~ ; VK45DE)
23100-AR00A	Alternator Assy	Alternator (2008-02-01 ~ ; VK45DE)
23102-AU401	Stator Assy	Alternator (2008-02-01 ~ ; VK45DE)
23108-9Y500	Rotor Assy	Alternator (2008-02-01 ~ ; VK45DE)
23108-CN10A	Rotor Assy	Alternator (2008-02-01 ~ ; VK45DE)
23108-CN10B	Rotor Assy	Alternator (2008-02-01 ~ ; VK45DE)
23118-40U00	Cover Assy-Front	Alternator (2008-02-01 ~ ; VK45DE)
23118-AR00A	Cover Assy-Front	Alternator (2008-02-01 ~ ; VK45DE)
23120-0M000	Bearing-Ball	Alternator (2008-02-01 ~ ; VK45DE)
23120-0M005	Bearing-Ball	Alternator (2008-02-01 ~ ; VK45DE)
23124-AR001	Rectifier Assy	Alternator (2008-02-01 ~ ; VK45DE)
23124-AR00A	Rectifier Assy	Alternator (2008-02-01 ~ ; VK45DE)
23127-AR00A	Cover Assy-Rear	Alternator (2008-02-01 ~ ; VK45DE)
23142-31U00	Brush-F	Alternator (2008-02-01 ~ ; VK45DE)
23150-2Y000	Pulley Assy	Alternator (2008-02-01 ~ ; VK45DE)
23150-AR00A	Pulley Assy	Alternator (2008-02-01 ~ ; VK45DE)
23200-0M000	Screw Set	Alternator (2008-02-01 ~ ; VK45DE)
23200-CN10A	Screw Set	Alternator (2008-02-01 ~ ; VK45DE)

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 416
Collected: 2026-07-27
