F38A

Mitsubishi DIAMANTE · 1996 · 4,129 parts · 256 categories
F38A ×

← Back to categories

4,129 items

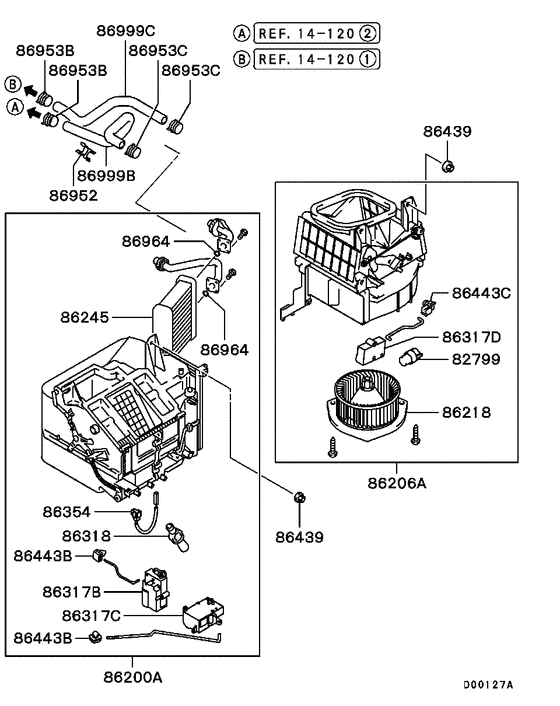

Heater unit & piping (HEATER UNIT,PIPING) 26
#OEMPart name
82799 AW310476 RELAY
82799 MR588567 RELAY (ACV31212 M07)
86200 AW342501 HEATER ASSY
86200 MR460931 HEATER ASSY
86200 MR926798 HEATER ASSY
86200 MR928869 HEATER ASSY
86206 AW351096 BLOWER ASSY,HEATER
86206 MR906805 BLOWER ASSY,HEATER
86218 AW350061 FAN & MOTOR KIT,HEATER
86245 AW350081 CORE,HEATER
86245 MR927999 CORE,HEATER
86317 AW339321 MOTOR, AUTO HEATER CONTROL - Mode
86317 AW342508 MOTOR,AUTO HEATER CONTROL
86317 MR270676 MOTOR, AUTO HEATER CONTROL - Outside-inside
86318 AW349224 ASPIRATOR, HEATER CONTROL VACUUM
86354 AW339322 SENSOR, HEATER WATER TEMPERATURE
86439 MS440523 NUT, FUEL TANK - Washer assembled,8
86439 MU431508 NUT, HEATER - 8
86443 AW349237 HOLDER, HEATER
86952 MS470478 CLIP, HEATER PIPING - 22.5-22.5
86953 MA609047 CLIP, FUEL LINE - D=25
86953 MU470040 CLAMP, HEATER PIPING - 21.7
86964 MR927776 O-RING, HEATER PIPING
86999 AW342620 HOSE,HEATER PIPING
86999 AW342621 HOSE,HEATER PIPING
86999 MR398462 HOSE,HEATER PIPING
