F38A

Mitsubishi DIAMANTE · 1996 · 4,129 parts · 256 categories

← Back to categories

4,129 items

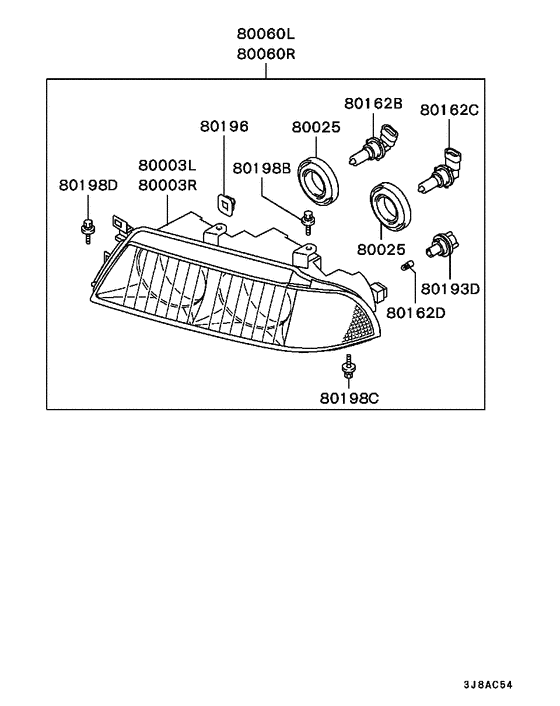

Headlamp (-0308.3) 17

#	OEM	Part name
80003	MR245911	BODY,HEADLAMP,LH
80003	MR472637	BODY,HEADLAMP,LH
80003	MR245912	BODY,HEADLAMP,RH
80003	MR472638	BODY,HEADLAMP,RH
80025	MR245910	COVER,HEADLAMP BULB SOCKET
80060	MR296087	HEADLAMP KIT,LH - HALOGEN
80060	MR476935	HEADLAMP KIT,LH - HALOGEN
80060	MR296088	HEADLAMP KIT,RH - HALOGEN
80060	MR476936	HEADLAMP KIT,RH - HALOGEN
80162	MS820959	BULB, HEADLAMP - 12v-60w(hb3)
80162	MS820960	BULB, HEADLAMP - 12v-51w(hb4)
80162	MS820080	BULB, FR LAMP - 12v-5w
80193	MU805817	SOCKET,FR LAMP
80196	MU810519	GROMMET, FR LAMP
80198	MS240602	BOLT, FR BUMPER - Washer assembled,6x20
80198	MS240122	BOLT, ENG FR MOUNTING - Washer assembled,6x20
80198	MB403510	BOLT, FR BUMPER - Flange,6x20

OEM	Part name	Category
MB403510	BOLT, FR BUMPER - Flange,6x20	Headlamp (-0308.3)
MR245910	COVER,HEADLAMP BULB SOCKET	Headlamp (-0308.3)
MR245911	BODY,HEADLAMP,LH	Headlamp (-0308.3)
MR245912	BODY,HEADLAMP,RH	Headlamp (-0308.3)
MR296087	HEADLAMP KIT,LH - HALOGEN	Headlamp (-0308.3)
MR296088	HEADLAMP KIT,RH - HALOGEN	Headlamp (-0308.3)
MR472637	BODY,HEADLAMP,LH	Headlamp (-0308.3)
MR472638	BODY,HEADLAMP,RH	Headlamp (-0308.3)
MR476935	HEADLAMP KIT,LH - HALOGEN	Headlamp (-0308.3)
MR476936	HEADLAMP KIT,RH - HALOGEN	Headlamp (-0308.3)
MS240122	BOLT, ENG FR MOUNTING - Washer assembled,6x20	Headlamp (-0308.3)
MS240602	BOLT, FR BUMPER - Washer assembled,6x20	Headlamp (-0308.3)
MS820080	BULB, FR LAMP - 12v-5w	Headlamp (-0308.3)
MS820959	BULB, HEADLAMP - 12v-60w(hb3)	Headlamp (-0308.3)
MS820960	BULB, HEADLAMP - 12v-51w(hb4)	Headlamp (-0308.3)
MU805817	SOCKET,FR LAMP	Headlamp (-0308.3)
MU810519	GROMMET, FR LAMP	Headlamp (-0308.3)
