Search › Model › F38A
F38A

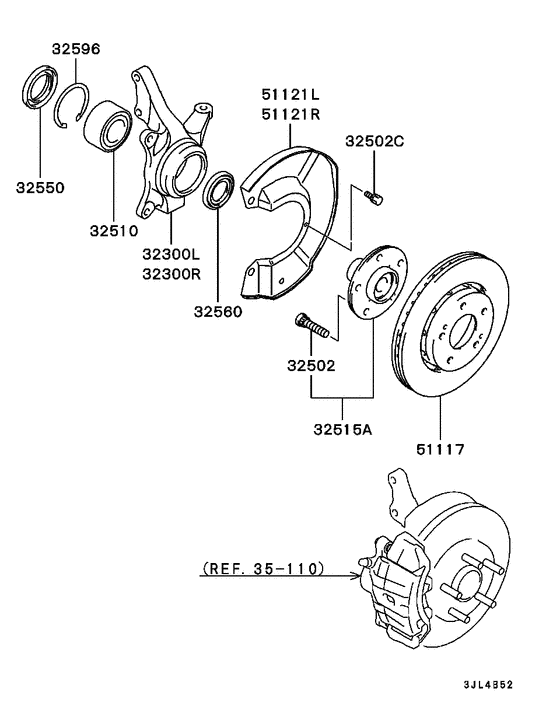

Front axle hub & drum 15
| # | OEM | Part name |
|---|---|---|
| 32300 | MR197773 | KNUCKLE, LH |
| 32300 | MR197774 | KNUCKLE, RH |
| 32502 | MB303869 | BOLT, FR WHEEL HUB - 12x45 |
| 32502 | MB911495 | BOLT, FR WHEEL HUB - 12x43 |
| 32502 | MS240094 | BOLT, FUEL TANK - Washer assembled,6x12 |
| 32510 | MB633430 | BEARING, FR WHEEL HUB - Angular contact ball,84x39-45 |
| 32510 | MR449796 | BEARING,FR WHEEL HUB |
| 32515 | AW335331 | HUB ASSY, FR WHEEL |
| 32515 | MR449671 | HUB ASSY,FR WHEEL |
| 32550 | AW337787 | OIL SEAL, FR WHEEL HUB, INR |
| 32560 | AW337788 | OIL SEAL, FR WHEEL HUB, OTR |
| 32596 | MB633435 | SNAP RING, FR WHEEL HUB - 77.5 |
| 51117 | MR449660 | DISC, FR BRAKE - 15; |
| 51121 | MR205000 | COVER, FR BRAKE DISC, LH |
| 51121 | MR205001 | COVER, FR BRAKE DISC, RH |
| OEM | Part name | Category |
|---|---|---|
| AW335331 | HUB ASSY, FR WHEEL | Front axle hub & drum |
| AW337787 | OIL SEAL, FR WHEEL HUB, INR | Front axle hub & drum |
| AW337788 | OIL SEAL, FR WHEEL HUB, OTR | Front axle hub & drum |
| MB303869 | BOLT, FR WHEEL HUB - 12x45 | Front axle hub & drum |
| MB633430 | BEARING, FR WHEEL HUB - Angular contact ball,84x39-45 | Front axle hub & drum |
| MB633435 | SNAP RING, FR WHEEL HUB - 77.5 | Front axle hub & drum |
| MB911495 | BOLT, FR WHEEL HUB - 12x43 | Front axle hub & drum |
| MR197773 | KNUCKLE, LH | Front axle hub & drum |
| MR197774 | KNUCKLE, RH | Front axle hub & drum |
| MR205000 | COVER, FR BRAKE DISC, LH | Front axle hub & drum |
| MR205001 | COVER, FR BRAKE DISC, RH | Front axle hub & drum |
| MR449660 | DISC, FR BRAKE - 15; | Front axle hub & drum |
| MR449671 | HUB ASSY,FR WHEEL | Front axle hub & drum |
| MR449796 | BEARING,FR WHEEL HUB | Front axle hub & drum |
| MS240094 | BOLT, FUEL TANK - Washer assembled,6x12 | Front axle hub & drum |
