Search › Model › F38A

F38A

Mitsubishi DIAMANTE · 1996 · 4,129 parts · 256 categories

4,129 items

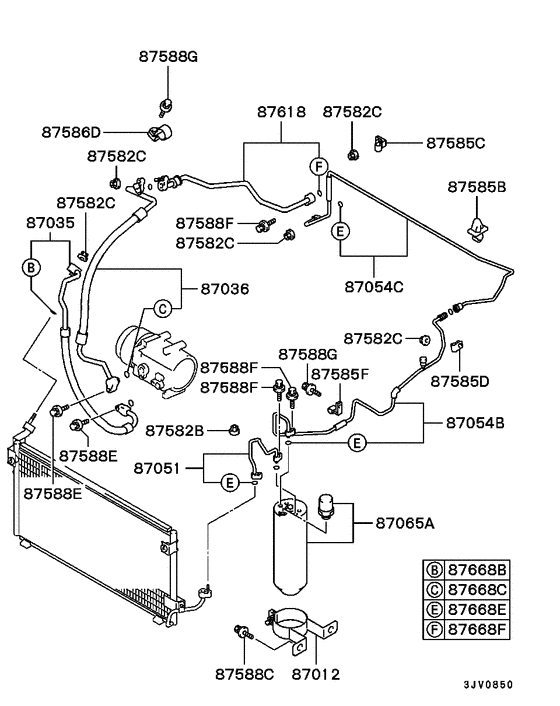

A/c condenser, piping (PIPING) 38

#	OEM	Part name
87012	MR500497	BRACKET, A/C RECEIVER
87035	AW347056	HOSE,A/C COMPRESSOR DISCHARGE
87035	MR906907	HOSE, A/C COMPRESSOR DISCHARGE
87035	MR926336	HOSE,A/C COMPRESSOR DISCHARGE
87036	AW343077	HOSE,A/C COMPRESSOR SUCTION
87036	MR906906	HOSE,A/C COMPRESSOR SUCTION
87036	MR907550	HOSE,A/C COMPRESSOR SUCTION
87051	MR932344	PIPE, A/C CONDENSER OUTLET
87054	AW342647	PIPE,A/C RECEIVER OUTLET
87054	MR908404	PIPE,A/C RECEIVER OUTLET
87054	MR920524	PIPE,A/C RECEIVER OUTLET
87054	AW342648	PIPE,A/C RECEIVER OUTLET
87054	MR920597	PIPE,A/C RECEIVER OUTLET
87054	MR928949	PIPE,A/C RECEIVER OUTLET
87065	AW339826	RECEIVER ASSY, A/C
87065	AW349197	RECEIVER ASSY,A/C
87065	MR922120	RECEIVER ASSY,A/C
87065	MR932307	RECEIVER ASSY,A/C
87582	AW337516	NUT, RR BUMPER - 6
87582	MS440503	NUT - Washer assembled,8
87585	AW346370	CLIP,A/C PIPING
87585	MU481043	CLIP, CRUISE CONTROL EQUIP - 7
87585	AW344781	CLIP,A/C PIPING
87585	AW351081	CLIP, A/C PIPING
87585	MB636388	CLIP, P/S OIL LINE
87586	AW346396	CLAMP,A/C PIPING
87588	MS240396	BOLT, AIR GUIDE PANEL - Washer assembled,8x16
87588	MF244855	BOLT, COOLING FAN - Washer assembled,8x30
87588	MF244859	BOLT, A/C COMPRESSOR - Washer assembled,8x40
87588	MS240125	BOLT, FUEL TANK - Washer assembled,8x20
87588	MF243628	BOLT, CONNROD - Washer assembled,6x25
87588	MF243651	BOLT, ENG RR MOUNTING - Washer assembled,8x20
87618	AW343076	PIPE,A/C COMPRESSOR SUCTION
87618	MR928939	PIPE,A/C COMPRESSOR SUCTION
87668	AW338563	O-RING, A/C PIPING - 10.82x1.78
87668	AW338565	O-RING, A/C PIPING - 6.07x1.78
87668	AW346234	O-RING, A/C PIPING - 17.1x1.78
87668	AW338564	O-RING, A/C PIPING - 14.0x1.78mm

OEM	Part name	Category
AW337516	NUT, RR BUMPER - 6	A/c condenser, piping (PIPING)
AW338563	O-RING, A/C PIPING - 10.82x1.78	A/c condenser, piping (PIPING)
AW338564	O-RING, A/C PIPING - 14.0x1.78mm	A/c condenser, piping (PIPING)
AW338565	O-RING, A/C PIPING - 6.07x1.78	A/c condenser, piping (PIPING)
AW339826	RECEIVER ASSY, A/C	A/c condenser, piping (PIPING)
AW342647	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING)
AW342648	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING)
AW343076	PIPE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING)
AW343077	HOSE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING)
AW344781	CLIP,A/C PIPING	A/c condenser, piping (PIPING)
AW346234	O-RING, A/C PIPING - 17.1x1.78	A/c condenser, piping (PIPING)
AW346370	CLIP,A/C PIPING	A/c condenser, piping (PIPING)
AW346396	CLAMP,A/C PIPING	A/c condenser, piping (PIPING)
AW347056	HOSE,A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING)
AW349197	RECEIVER ASSY,A/C	A/c condenser, piping (PIPING)
AW351081	CLIP, A/C PIPING	A/c condenser, piping (PIPING)
MB636388	CLIP, P/S OIL LINE	A/c condenser, piping (PIPING)
MF243628	BOLT, CONNROD - Washer assembled,6x25	A/c condenser, piping (PIPING)
MF243651	BOLT, ENG RR MOUNTING - Washer assembled,8x20	A/c condenser, piping (PIPING)
MF244855	BOLT, COOLING FAN - Washer assembled,8x30	A/c condenser, piping (PIPING)
MF244859	BOLT, A/C COMPRESSOR - Washer assembled,8x40	A/c condenser, piping (PIPING)
MR500497	BRACKET, A/C RECEIVER	A/c condenser, piping (PIPING)
MR906906	HOSE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING)
MR906907	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING)
MR907550	HOSE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING)
MR908404	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING)
MR920524	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING)
MR920597	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING)
MR922120	RECEIVER ASSY,A/C	A/c condenser, piping (PIPING)
MR926336	HOSE,A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING)
MR928939	PIPE,A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING)
MR928949	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (PIPING)
MR932307	RECEIVER ASSY,A/C	A/c condenser, piping (PIPING)
MR932344	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (PIPING)
MS240125	BOLT, FUEL TANK - Washer assembled,8x20	A/c condenser, piping (PIPING)
MS240396	BOLT, AIR GUIDE PANEL - Washer assembled,8x16	A/c condenser, piping (PIPING)
MS440503	NUT - Washer assembled,8	A/c condenser, piping (PIPING)
MU481043	CLIP, CRUISE CONTROL EQUIP - 7	A/c condenser, piping (PIPING)
