Search › Model › F36W

F36W

Mitsubishi DIAMANTE-WAGON · 1997 · 2,850 parts · 192 categories

2,850 items

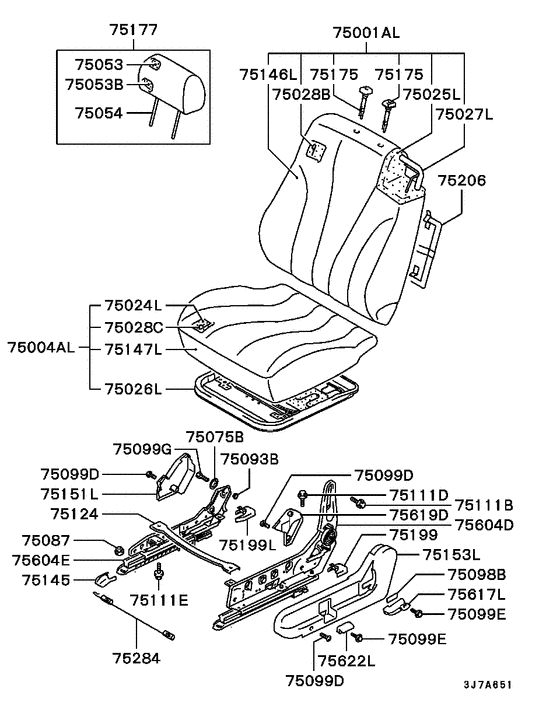

Front seat (LH) 58

#	OEM	Part name
75001	AW392619	BACK ASSY, FR SEAT, LH
75001	AW392913	BACK ASSY, FR SEAT, LH
75004	AW392587	CUSHION ASSY, FR SEAT, LH
75004	AW392577	CUSHION ASSY, FR SEAT, LH
75024	AW339933	PAD, FR SEAT CUSHION, LH
75024	AW345263	PAD, FR SEAT CUSHION, LH
75025	AW339493	PAD, FR SEAT BACK, LH
75025	AW345265	PAD, FR SEAT BACK, LH
75026	AW339486	FRAME, FR SEAT CUSHION
75027	AW324381	FRAME, FR SEAT BACK, LH
75028	AW338378	WIRE, FR SEAT TRIMMING - 2x362
75028	AW340544	WIRE, RR SEAT TRIMMING - 2x440
75028	MR902250	WIRE, RR SEAT TRIMMING - 310
75028	AW339497	WIRE, RR SEAT TRIMMING - 2x340
75028	AW348900	WIRE, FR SEAT TRIMMING
75053	AW324751	PAD, FR SEAT HEADREST
75053	AW326083	PAD, FR SEAT HEADREST
75054	MB850048	FRAME, FR SEAT HEADREST
75075	MB850061	WASHER, FR SEAT
75087	MS440504	NUT - Washer assembled,10
75093	MB158706	BUSHING, FR SEAT - 12x6
75098	MR741329	CAP, FR SEAT
75098	MR741330	CAP, FR SEAT
75099	MF455510	SCREW, GLOVEBOX - Tapping,5x10
75099	MF350983	SCREW, FR SEAT - Washer assembled,4x8
75099	MB074040	SCREW, FR SEAT - 6x12
75111	MF241278	BOLT, ENG MOUNTING - Washer assembled,10x16
75111	MU240135	BOLT, FR SEAT - Washer assembled,10x30
75111	MB190985	BOLT, FR SEAT - 8x20
75124	MB874054	BRACKET, FR SEAT SUPPORT
75145	MB726461	COVER, FR SEAT ANCHOR
75146	AW393127	COVER, FR SEAT BACK, LH
75146	MR908819	COVER, FR SEAT BACK, LH
75147	AW392529	COVER, FR SEAT CUSHION, LH
75147	MR920183	COVER, FR SEAT CUSHION, LH
75151	AW392747	COVER, FR SEAT HINGE, LH
75151	AW392749	COVER, FR SEAT HINGE, LH
75153	MR765705	SHIELD, FR SEAT CUSHION, LH
75153	MR765706	SHIELD, FR SEAT CUSHION, LH
75175	AW391181	GUIDE, FR SEAT HEADREST - W/o lock
75175	AW391183	GUIDE, FR SEAT HEADREST - W/lock
75175	AW391182	GUIDE, FR SEAT HEADREST - W/o lock
75175	AW391184	GUIDE, FR SEAT HEADREST - W/lock
75177	AW392540	HEADREST, FR SEAT
75177	AW392215	HEADREST, FR SEAT
75199	MB726462	COVER, FR SEAT ANCHOR, RR
75199	MR738915	COVER, FR SEAT ANCHOR, RR LH
75206	AW392209	PANEL, FR SEAT BACK
75206	MR920186	PANEL, FR SEAT BACK
75284	MR921519	WIRE, FR SEAT
75604	MR202148	ADJUSTER, FR SEAT SLIDE
75604	MR202147	ADJUSTER, FR SEAT SLIDE
75617	MR741337	KNOB, FR SEAT RECLINING ADJUSTER, LH
75617	MR741338	KNOB, FR SEAT RECLINING ADJUSTER, LH
75619	MR708793	COVER, FR SEAT RECLINING ADJUSTER, LWR
75619	MR741312	COVER, FR SEAT RECLINING ADJUSTER, LWR
75622	MR741341	KNOB, FR SEAT SLIDE ADJUSTER, LH
75622	MR741342	KNOB, FR SEAT SLIDE ADJUSTER, LH

OEM	Part name	Category
AW324381	FRAME, FR SEAT BACK, LH	Front seat (LH)
AW324751	PAD, FR SEAT HEADREST	Front seat (LH)
AW326083	PAD, FR SEAT HEADREST	Front seat (LH)
AW338378	WIRE, FR SEAT TRIMMING - 2x362	Front seat (LH)
AW339486	FRAME, FR SEAT CUSHION	Front seat (LH)
AW339493	PAD, FR SEAT BACK, LH	Front seat (LH)
AW339497	WIRE, RR SEAT TRIMMING - 2x340	Front seat (LH)
AW339933	PAD, FR SEAT CUSHION, LH	Front seat (LH)
AW340544	WIRE, RR SEAT TRIMMING - 2x440	Front seat (LH)
AW345263	PAD, FR SEAT CUSHION, LH	Front seat (LH)
AW345265	PAD, FR SEAT BACK, LH	Front seat (LH)
AW348900	WIRE, FR SEAT TRIMMING	Front seat (LH)
AW391181	GUIDE, FR SEAT HEADREST - W/o lock	Front seat (LH)
AW391182	GUIDE, FR SEAT HEADREST - W/o lock	Front seat (LH)
AW391183	GUIDE, FR SEAT HEADREST - W/lock	Front seat (LH)
AW391184	GUIDE, FR SEAT HEADREST - W/lock	Front seat (LH)
AW392209	PANEL, FR SEAT BACK	Front seat (LH)
AW392215	HEADREST, FR SEAT	Front seat (LH)
AW392529	COVER, FR SEAT CUSHION, LH	Front seat (LH)
AW392540	HEADREST, FR SEAT	Front seat (LH)
AW392577	CUSHION ASSY, FR SEAT, LH	Front seat (LH)
AW392587	CUSHION ASSY, FR SEAT, LH	Front seat (LH)
AW392619	BACK ASSY, FR SEAT, LH	Front seat (LH)
AW392747	COVER, FR SEAT HINGE, LH	Front seat (LH)
AW392749	COVER, FR SEAT HINGE, LH	Front seat (LH)
AW392913	BACK ASSY, FR SEAT, LH	Front seat (LH)
AW393127	COVER, FR SEAT BACK, LH	Front seat (LH)
MB074040	SCREW, FR SEAT - 6x12	Front seat (LH)
MB158706	BUSHING, FR SEAT - 12x6	Front seat (LH)
MB190985	BOLT, FR SEAT - 8x20	Front seat (LH)
MB726461	COVER, FR SEAT ANCHOR	Front seat (LH)
MB726462	COVER, FR SEAT ANCHOR, RR	Front seat (LH)
MB850048	FRAME, FR SEAT HEADREST	Front seat (LH)
MB850061	WASHER, FR SEAT	Front seat (LH)
MB874054	BRACKET, FR SEAT SUPPORT	Front seat (LH)
MF241278	BOLT, ENG MOUNTING - Washer assembled,10x16	Front seat (LH)
MF350983	SCREW, FR SEAT - Washer assembled,4x8	Front seat (LH)
MF455510	SCREW, GLOVEBOX - Tapping,5x10	Front seat (LH)
MR202147	ADJUSTER, FR SEAT SLIDE	Front seat (LH)
MR202148	ADJUSTER, FR SEAT SLIDE	Front seat (LH)
MR708793	COVER, FR SEAT RECLINING ADJUSTER, LWR	Front seat (LH)
MR738915	COVER, FR SEAT ANCHOR, RR LH	Front seat (LH)
MR741312	COVER, FR SEAT RECLINING ADJUSTER, LWR	Front seat (LH)
MR741329	CAP, FR SEAT	Front seat (LH)
MR741330	CAP, FR SEAT	Front seat (LH)
MR741337	KNOB, FR SEAT RECLINING ADJUSTER, LH	Front seat (LH)
MR741338	KNOB, FR SEAT RECLINING ADJUSTER, LH	Front seat (LH)
MR741341	KNOB, FR SEAT SLIDE ADJUSTER, LH	Front seat (LH)
MR741342	KNOB, FR SEAT SLIDE ADJUSTER, LH	Front seat (LH)
MR765705	SHIELD, FR SEAT CUSHION, LH	Front seat (LH)
MR765706	SHIELD, FR SEAT CUSHION, LH	Front seat (LH)
MR902250	WIRE, RR SEAT TRIMMING - 310	Front seat (LH)
MR908819	COVER, FR SEAT BACK, LH	Front seat (LH)
MR920183	COVER, FR SEAT CUSHION, LH	Front seat (LH)
MR920186	PANEL, FR SEAT BACK	Front seat (LH)
MR921519	WIRE, FR SEAT	Front seat (LH)
MS440504	NUT - Washer assembled,10	Front seat (LH)
MU240135	BOLT, FR SEAT - Washer assembled,10x30	Front seat (LH)
