Search › Model › F34A

F34A

Mitsubishi DIAMANTE · 2002 · 3,365 parts · 207 categories

3,365 items

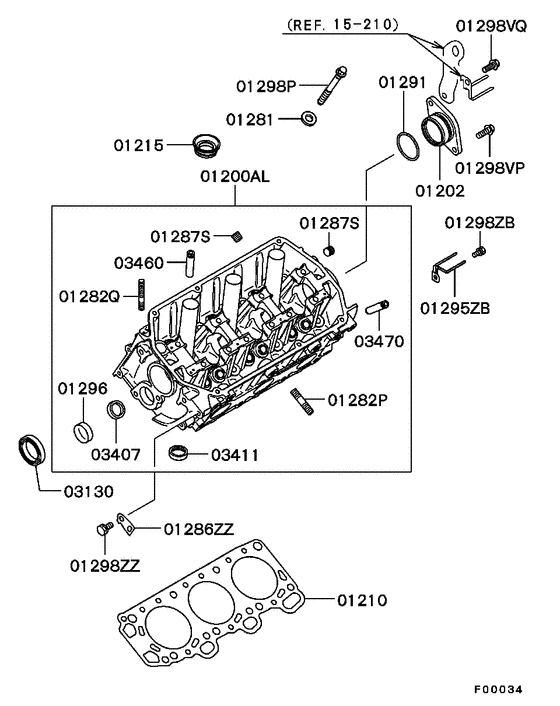

Cylinder head (ALL (LEFT SIDE)) 30

#	OEM	Part name
1200	MD332658	HEAD ASSY, ENG CYLINDER, LH
1202	MD172231	CASE, CYLINDER HEAD CAMSHAFT THRUST
1210	MD333227	GASKET, CYLINDER HEAD
1215	MD198128	SEAL, CYLINDER HEAD SPARK PLUG GUIDE - Rubber
1281	MD000436	WASHER - Plain,10
1282	MD122521	STUD, CYLINDER HEAD - 10x32
1282	MS401433	STUD, CYLINDER HEAD - 8x40
1286	MD345794	BRACKET, TIMING BELT COVER HARNESS CLIP
1287	MS661141	PLUG, CYLINDER HEAD - Taper,1/4
1291	MF520031	O-RING, CYLINDER HEAD - 44
1291	MN176208	O-RING, CYLINDER HEAD - 43.7
1295	MD336909	CLIP, INLET MANIFOLD
1296	MD166517	CAP, CYLINDER HEAD - Sealing,32
1298	MD164738	BOLT, CYLINDER HEAD - Flange,10x95
1298	MF140225	BOLT, ENG WATER COOLER - Flange,8x20
1298	MF241256	BOLT, ENG OIL PAN - Washer assembled,8x28
1298	MF241222	BOLT, ROCKER COVER - Washer assembled,6x10
1298	MF241250	BOLT, ELECTRIC FUEL PUMP - Washer assembled,8x14
3130	MD153103	OIL SEAL, CAMSHAFT
3130	MD372536	OIL SEAL, CAMSHAFT
3407	MD332708	SEAT, EXHAUST VALVE - O/size 0.30
3407	MD332709	SEAT, EXHAUST VALVE - O/size 0.60
3411	MD180395	SEAT, INLET VALVE - O/size 0.30
3411	MD180396	SEAT, INLET VALVE - O/size 0.60
3460	MD337622	GUIDE, INLET VALVE - O/size 0.05
3460	MD337623	GUIDE, INLET VALVE - O/size 0.25
3460	MD337624	GUIDE, INLET VALVE - O/size 0.50
3470	MD337625	GUIDE, EXHAUST VALVE - O/size 0.05
3470	MD337626	GUIDE, EXHAUST VALVE - O/size 0.25
3470	MD337627	GUIDE, EXHAUST VALVE - O/size 0.50

OEM	Part name	Category
MD000436	WASHER - Plain,10	Cylinder head (ALL (LEFT SIDE))
MD122521	STUD, CYLINDER HEAD - 10x32	Cylinder head (ALL (LEFT SIDE))
MD153103	OIL SEAL, CAMSHAFT	Cylinder head (ALL (LEFT SIDE))
MD164738	BOLT, CYLINDER HEAD - Flange,10x95	Cylinder head (ALL (LEFT SIDE))
MD166517	CAP, CYLINDER HEAD - Sealing,32	Cylinder head (ALL (LEFT SIDE))
MD172231	CASE, CYLINDER HEAD CAMSHAFT THRUST	Cylinder head (ALL (LEFT SIDE))
MD180395	SEAT, INLET VALVE - O/size 0.30	Cylinder head (ALL (LEFT SIDE))
MD180396	SEAT, INLET VALVE - O/size 0.60	Cylinder head (ALL (LEFT SIDE))
MD198128	SEAL, CYLINDER HEAD SPARK PLUG GUIDE - Rubber	Cylinder head (ALL (LEFT SIDE))
MD332658	HEAD ASSY, ENG CYLINDER, LH	Cylinder head (ALL (LEFT SIDE))
MD332708	SEAT, EXHAUST VALVE - O/size 0.30	Cylinder head (ALL (LEFT SIDE))
MD332709	SEAT, EXHAUST VALVE - O/size 0.60	Cylinder head (ALL (LEFT SIDE))
MD333227	GASKET, CYLINDER HEAD	Cylinder head (ALL (LEFT SIDE))
MD336909	CLIP, INLET MANIFOLD	Cylinder head (ALL (LEFT SIDE))
MD337622	GUIDE, INLET VALVE - O/size 0.05	Cylinder head (ALL (LEFT SIDE))
MD337623	GUIDE, INLET VALVE - O/size 0.25	Cylinder head (ALL (LEFT SIDE))
MD337624	GUIDE, INLET VALVE - O/size 0.50	Cylinder head (ALL (LEFT SIDE))
MD337625	GUIDE, EXHAUST VALVE - O/size 0.05	Cylinder head (ALL (LEFT SIDE))
MD337626	GUIDE, EXHAUST VALVE - O/size 0.25	Cylinder head (ALL (LEFT SIDE))
MD337627	GUIDE, EXHAUST VALVE - O/size 0.50	Cylinder head (ALL (LEFT SIDE))
MD345794	BRACKET, TIMING BELT COVER HARNESS CLIP	Cylinder head (ALL (LEFT SIDE))
MD372536	OIL SEAL, CAMSHAFT	Cylinder head (ALL (LEFT SIDE))
MF140225	BOLT, ENG WATER COOLER - Flange,8x20	Cylinder head (ALL (LEFT SIDE))
MF241222	BOLT, ROCKER COVER - Washer assembled,6x10	Cylinder head (ALL (LEFT SIDE))
MF241250	BOLT, ELECTRIC FUEL PUMP - Washer assembled,8x14	Cylinder head (ALL (LEFT SIDE))
MF241256	BOLT, ENG OIL PAN - Washer assembled,8x28	Cylinder head (ALL (LEFT SIDE))
MF520031	O-RING, CYLINDER HEAD - 44	Cylinder head (ALL (LEFT SIDE))
MN176208	O-RING, CYLINDER HEAD - 43.7	Cylinder head (ALL (LEFT SIDE))
MS401433	STUD, CYLINDER HEAD - 8x40	Cylinder head (ALL (LEFT SIDE))
MS661141	PLUG, CYLINDER HEAD - Taper,1/4	Cylinder head (ALL (LEFT SIDE))
