Search › Model › F31A

F31A

Mitsubishi DIAMANTE · 1994 · 4,302 parts · 262 categories

4,302 items

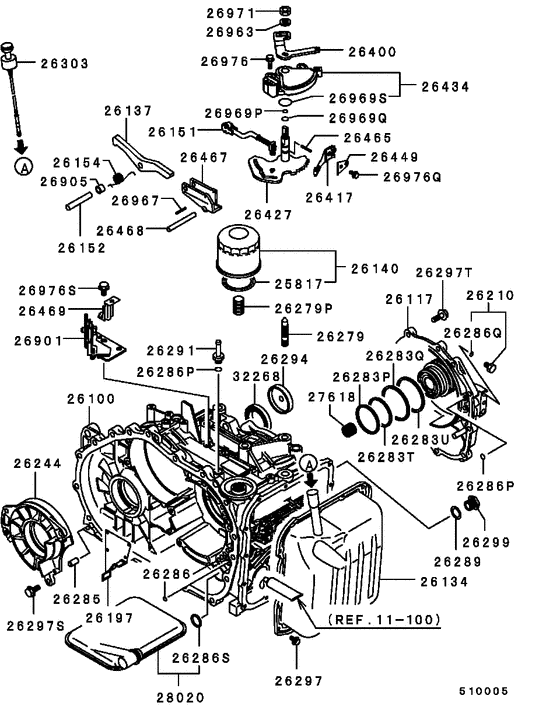

A/t case (4-SPEED (T/M CASE)) 73

#	OEM	Part name
25817	MD622034	GASKET, T/M OIL FILTER
26100	MR486893	CASE, A/T
26100	MR593510	CASE, A/T
26117	MD763204	COVER, A/T CASE, RR
26134	MD759182	OIL PAN, A/T CASE
26137	MD760714	PAWL, A/T CASE PARKING
26140	MD752072	OIL FILTER ASSY, T/M
26151	MD760718	ROD, A/T PARKING PAWL
26152	MD759486	SHAFT, A/T PARKING PAWL
26152	MD760619	SHAFT, A/T PARKING PAWL
26154	MD755088	SPRING, A/T CASE PARKING PAWL
26197	MD757015	OIL GUIDE, A/T CASE
26210	MD707198	PLUG KIT, A/T CASE
26244	MD761638	RETAINER, A/T OUTPUT SHAFT BEARING
26244	MN139173	RETAINER, A/T OUTPUT SHAFT BEARING
26279	MD759556	STUD, A/T CASE - 12x44.5
26279	MN130494	STUD, A/T CASE - 12x61.5
26279	MD192439	STUD, CYLINDER BLOCK - 20x31
26283	MD760146	SEAL RING, A/T CASE - 53.5
26283	MD760147	SEAL RING, A/T CASE - 64.5
26283	MD760903	SEAL RING, A/T CASE - 53.5
26283	MD760904	SEAL RING, A/T CASE - 64.5
26285	MF472405	PIN, CYLINDER BLOCK - Dowel,10x20
26286	MD707187	O-RING, A/T CASE - 6
26286	MD707200	O-RING, OIL FILTER - 9.8
26286	MR486844	O-RING, A/T CASE - 9.8
26286	MD622023	O-RING, A/T CASE
26289	MD000312	GASKET, PLUG - D=18.2
26289	MN130495	GASKET, A/T CASE
26291	MD707199	JOINT, A/T CASE
26291	MD761440	JOINT, A/T CASE
26294	MD758173	CAP, A/T CASE - 57
26297	MF140203	BOLT, ACCEL CABLE SUPPORT - Flange,6x12
26297	MF140723	BOLT, ACCEL CABLE SUPPORT - Flange,6x12
26297	MD759832	BOLT, A/T CASE - Seal,8x20
26297	MF140225	BOLT, ENG WATER COOLER - Flange,8x20
26297	MR553872	BOLT, A/T CASE - Flange,8x21
26297	MF140227	BOLT, ROCKER COVER - Flange,8x25
26299	MB569372	PLUG, RR AXLE HOUSING - Magnet
26299	MB569390	PLUG KIT, FR DIFF
26303	MD763339	GAUGE, A/T OIL LEVEL
26303	MN168612	GAUGE, A/T OIL LEVEL
26400	MD756873	LEVER, A/T MANUAL CONTROL
26417	MD756868	DETENT, A/T MANUAL CONTROL SHAFT
26417	MD759093	DETENT, A/T MANUAL CONTROL SHAFT
26417	MR515066	DETENT, A/T MANUAL CONTROL SHAFT
26427	MD756869	SHAFT, A/T MANUAL CONTROL LEVER
26434	MD757783	SWITCH, A/T CASE INHIBITOR
26449	MD757429	PLATE, A/T MANUAL CONTROL SHAFT DETENT
26465	MD713080	ROLLER, A/T PARKING SHAFT
26467	MD755083	SUPPORT, A/T PARKING PAWL ROD
26468	MD759487	SHAFT, A/T PARKING ROLLER SUPPORT
26468	MR593498	SHAFT, A/T PARKING ROLLER SUPPORT
26469	MD759221	BRACKET, A/T HARNESS
26901	MD759593	BRACKET, A/T CONTROL CABLE SUPPORT
26901	MR553834	BRACKET, A/T CONTROL CABLE SUPPORT
26905	MD753781	SPACER, A/T CONTROL EQUIP
26963	MF450406	WASHER - Spring,10
26967	MF472540	PIN, SPARE TIRE CARRIER - Spring,3x25
26969	MD726966	O-RING, A/T CONTROL EQUIP - 8.2
26969	MD622019	O-RING, A/T CONTROL EQUIP
26971	MF430726	NUT, FLYWHEEL HOUSING - Jam,10
26976	MF140207	BOLT, ROCKER COVER - Flange,6x20
26976	MS101202	BOLT, A/T VALVE BODY INR - Flange,5x12
26976	MF140223	BOLT, CYLINDER HEAD - Flange,8x16
27618	MD752039	BEARING, A/T INPUT SHAFT, RR - Needle,22
27618	MR446687	BEARING, A/T INPUT SHAFT, RR - Needle,22
28020	MD758691	OIL FILTER, A/T VALVE BODY
28020	MD758684	OIL FILTER, A/T VALVE BODY
32268	MD755526	OIL SEAL,RR DIFF SIDE BEARING,RH
32268	MD755904	OIL SEAL, T/M FR DIFF CASE
32268	MN130496	OIL SEAL, T/M FR DIFF CASE
32268	MN130498	OIL SEAL, T/M FR DIFF CASE

OEM	Part name	Category
MB569372	PLUG, RR AXLE HOUSING - Magnet	A/t case (4-SPEED (T/M CASE))
MB569390	PLUG KIT, FR DIFF	A/t case (4-SPEED (T/M CASE))
MD000312	GASKET, PLUG - D=18.2	A/t case (4-SPEED (T/M CASE))
MD192439	STUD, CYLINDER BLOCK - 20x31	A/t case (4-SPEED (T/M CASE))
MD622019	O-RING, A/T CONTROL EQUIP	A/t case (4-SPEED (T/M CASE))
MD622023	O-RING, A/T CASE	A/t case (4-SPEED (T/M CASE))
MD622034	GASKET, T/M OIL FILTER	A/t case (4-SPEED (T/M CASE))
MD707187	O-RING, A/T CASE - 6	A/t case (4-SPEED (T/M CASE))
MD707198	PLUG KIT, A/T CASE	A/t case (4-SPEED (T/M CASE))
MD707199	JOINT, A/T CASE	A/t case (4-SPEED (T/M CASE))
MD707200	O-RING, OIL FILTER - 9.8	A/t case (4-SPEED (T/M CASE))
MD713080	ROLLER, A/T PARKING SHAFT	A/t case (4-SPEED (T/M CASE))
MD726966	O-RING, A/T CONTROL EQUIP - 8.2	A/t case (4-SPEED (T/M CASE))
MD752039	BEARING, A/T INPUT SHAFT, RR - Needle,22	A/t case (4-SPEED (T/M CASE))
MD752072	OIL FILTER ASSY, T/M	A/t case (4-SPEED (T/M CASE))
MD753781	SPACER, A/T CONTROL EQUIP	A/t case (4-SPEED (T/M CASE))
MD755083	SUPPORT, A/T PARKING PAWL ROD	A/t case (4-SPEED (T/M CASE))
MD755088	SPRING, A/T CASE PARKING PAWL	A/t case (4-SPEED (T/M CASE))
MD755526	OIL SEAL,RR DIFF SIDE BEARING,RH	A/t case (4-SPEED (T/M CASE))
MD755904	OIL SEAL, T/M FR DIFF CASE	A/t case (4-SPEED (T/M CASE))
MD756868	DETENT, A/T MANUAL CONTROL SHAFT	A/t case (4-SPEED (T/M CASE))
MD756869	SHAFT, A/T MANUAL CONTROL LEVER	A/t case (4-SPEED (T/M CASE))
MD756873	LEVER, A/T MANUAL CONTROL	A/t case (4-SPEED (T/M CASE))
MD757015	OIL GUIDE, A/T CASE	A/t case (4-SPEED (T/M CASE))
MD757429	PLATE, A/T MANUAL CONTROL SHAFT DETENT	A/t case (4-SPEED (T/M CASE))
MD757783	SWITCH, A/T CASE INHIBITOR	A/t case (4-SPEED (T/M CASE))
MD758173	CAP, A/T CASE - 57	A/t case (4-SPEED (T/M CASE))
MD758684	OIL FILTER, A/T VALVE BODY	A/t case (4-SPEED (T/M CASE))
MD758691	OIL FILTER, A/T VALVE BODY	A/t case (4-SPEED (T/M CASE))
MD759093	DETENT, A/T MANUAL CONTROL SHAFT	A/t case (4-SPEED (T/M CASE))
MD759182	OIL PAN, A/T CASE	A/t case (4-SPEED (T/M CASE))
MD759221	BRACKET, A/T HARNESS	A/t case (4-SPEED (T/M CASE))
MD759486	SHAFT, A/T PARKING PAWL	A/t case (4-SPEED (T/M CASE))
MD759487	SHAFT, A/T PARKING ROLLER SUPPORT	A/t case (4-SPEED (T/M CASE))
MD759556	STUD, A/T CASE - 12x44.5	A/t case (4-SPEED (T/M CASE))
MD759593	BRACKET, A/T CONTROL CABLE SUPPORT	A/t case (4-SPEED (T/M CASE))
MD759832	BOLT, A/T CASE - Seal,8x20	A/t case (4-SPEED (T/M CASE))
MD760146	SEAL RING, A/T CASE - 53.5	A/t case (4-SPEED (T/M CASE))
MD760147	SEAL RING, A/T CASE - 64.5	A/t case (4-SPEED (T/M CASE))
MD760619	SHAFT, A/T PARKING PAWL	A/t case (4-SPEED (T/M CASE))
MD760714	PAWL, A/T CASE PARKING	A/t case (4-SPEED (T/M CASE))
MD760718	ROD, A/T PARKING PAWL	A/t case (4-SPEED (T/M CASE))
MD760903	SEAL RING, A/T CASE - 53.5	A/t case (4-SPEED (T/M CASE))
MD760904	SEAL RING, A/T CASE - 64.5	A/t case (4-SPEED (T/M CASE))
MD761440	JOINT, A/T CASE	A/t case (4-SPEED (T/M CASE))
MD761638	RETAINER, A/T OUTPUT SHAFT BEARING	A/t case (4-SPEED (T/M CASE))
MD763204	COVER, A/T CASE, RR	A/t case (4-SPEED (T/M CASE))
MD763339	GAUGE, A/T OIL LEVEL	A/t case (4-SPEED (T/M CASE))
MF140203	BOLT, ACCEL CABLE SUPPORT - Flange,6x12	A/t case (4-SPEED (T/M CASE))
MF140207	BOLT, ROCKER COVER - Flange,6x20	A/t case (4-SPEED (T/M CASE))
MF140223	BOLT, CYLINDER HEAD - Flange,8x16	A/t case (4-SPEED (T/M CASE))
MF140225	BOLT, ENG WATER COOLER - Flange,8x20	A/t case (4-SPEED (T/M CASE))
MF140227	BOLT, ROCKER COVER - Flange,8x25	A/t case (4-SPEED (T/M CASE))
MF140723	BOLT, ACCEL CABLE SUPPORT - Flange,6x12	A/t case (4-SPEED (T/M CASE))
MF430726	NUT, FLYWHEEL HOUSING - Jam,10	A/t case (4-SPEED (T/M CASE))
MF450406	WASHER - Spring,10	A/t case (4-SPEED (T/M CASE))
MF472405	PIN, CYLINDER BLOCK - Dowel,10x20	A/t case (4-SPEED (T/M CASE))
MF472540	PIN, SPARE TIRE CARRIER - Spring,3x25	A/t case (4-SPEED (T/M CASE))
MN130494	STUD, A/T CASE - 12x61.5	A/t case (4-SPEED (T/M CASE))
MN130495	GASKET, A/T CASE	A/t case (4-SPEED (T/M CASE))
MN130496	OIL SEAL, T/M FR DIFF CASE	A/t case (4-SPEED (T/M CASE))
MN130498	OIL SEAL, T/M FR DIFF CASE	A/t case (4-SPEED (T/M CASE))
MN139173	RETAINER, A/T OUTPUT SHAFT BEARING	A/t case (4-SPEED (T/M CASE))
MN168612	GAUGE, A/T OIL LEVEL	A/t case (4-SPEED (T/M CASE))
MR446687	BEARING, A/T INPUT SHAFT, RR - Needle,22	A/t case (4-SPEED (T/M CASE))
MR486844	O-RING, A/T CASE - 9.8	A/t case (4-SPEED (T/M CASE))
MR486893	CASE, A/T	A/t case (4-SPEED (T/M CASE))
MR515066	DETENT, A/T MANUAL CONTROL SHAFT	A/t case (4-SPEED (T/M CASE))
MR553834	BRACKET, A/T CONTROL CABLE SUPPORT	A/t case (4-SPEED (T/M CASE))
MR553872	BOLT, A/T CASE - Flange,8x21	A/t case (4-SPEED (T/M CASE))
MR593498	SHAFT, A/T PARKING ROLLER SUPPORT	A/t case (4-SPEED (T/M CASE))
MR593510	CASE, A/T	A/t case (4-SPEED (T/M CASE))
MS101202	BOLT, A/T VALVE BODY INR - Flange,5x12	A/t case (4-SPEED (T/M CASE))

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 262
Collected: 2026-07-25
