F31

Nissan LEOPARD · 1986 · 5,290 parts · 257 categories

5,290 items

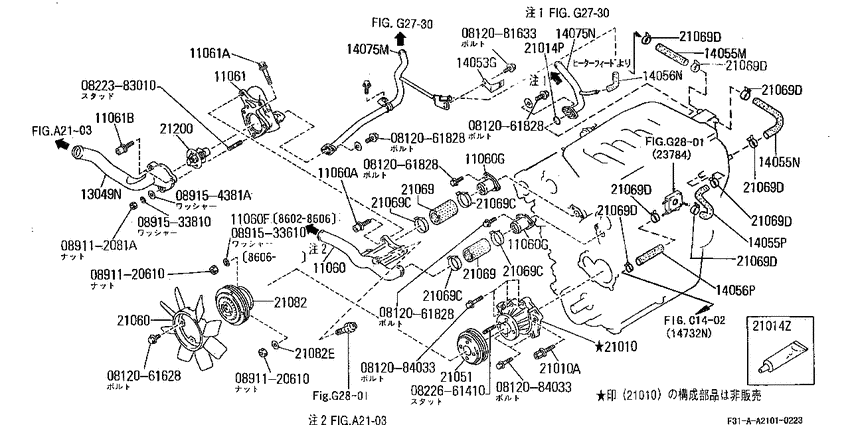

water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT) 50

#	OEM	Part name
11060	11060-16V00	Outlet-Water
11060	11060-V5000	Outlet-Water Bypass
11060	11060-V5001	Outlet-Water Bypass
11060	16163-F6510	Bolt
11060	01323-00041	WASHER-LOCK
11060	14053-F6511	Connector
11061	11061-02P00	Housing-Thermostat
11061	11061-02P01	Housing-Thermostat
11061	11061-F6500	Housing-Thermostat
11061	01121-01841	BOLT
13049	13049-16V00	Inlet-Water
13049	13049-V5000	Inlet-Water
14053	14896-25600	Clamp-Hose, A
14055	14056-16V03	Hose-Water
14055	14056-16V10	Hose-Water
14055	14056-16V05	Hose-Water
14055	14056-V5002	Hose-Water
14056	14056-16V06	Hose-Water
14056	14056-V5017	Hose-Bypass
14056	14056-02F00	Hose-Water
14056	14054-89W00	Hose-Water
14075	14053-16V11	Pipe Assy-Heater Return, Rear
14075	14053-16V01	Pipe Assy-Heater Feed
14075	14075-12P00	Pipe Assy-Heater Feed
21010	21010-F6525	Pump Assy-Water
21010	21010-F6526	Pump Assy-Water
21010	21010-V5026	Pump Assy-Water
21010	21010-V5027	Pump Assy-Water
21010	21012-V5001	Bolt
21010	21012-V5011	Bolt
21051	21051-16V00	Pulley-Fan & Water Pump
21060	21060-42L00	Fan-Cooling
21060	21060-42L0A	Fan-cooling
21060	21060-F6500	Fan-Cooling
21069	14055-F6100	Hose-Water, Bypass
21069	01555-00033	CLAMP-HOSE
21069	01555-00301	CLAMP-HOSE
21069	16439-56S00	Clamp-Hose
21069	16439-42L00	Clamp-Hose, A
21082	21082-10V00	Coupling Assy-Fan
21082	21082-10V10	Coupling Assy-Fan
21082	21082-42L03	Coupling Assy-Fan
21082	21082-42L04	Coupling Assy-Fan
21200	21200-42L00	Thermostat Assy
21200	21200-42L0A	Thermostat
812061828	08120-61828	Bolt-hexagon
812081633	08120-81633	Bolt-hexagon
812084033	08120-84033	Bolt-hexagon
822383010	08223-83010	STUD
891533810	08915-33810	WASHER-FINAL DRIVE

OEM	Part name	Category
01121-01841	BOLT	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
01323-00041	WASHER-LOCK	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
01555-00033	CLAMP-HOSE	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
01555-00301	CLAMP-HOSE	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
08120-61828	Bolt-hexagon	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
08120-81633	Bolt-hexagon	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
08120-84033	Bolt-hexagon	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
08223-83010	STUD	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
08915-33810	WASHER-FINAL DRIVE	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
11060-16V00	Outlet-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
11060-V5000	Outlet-Water Bypass	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
11060-V5001	Outlet-Water Bypass	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
11061-02P00	Housing-Thermostat	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
11061-02P01	Housing-Thermostat	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
11061-F6500	Housing-Thermostat	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
13049-16V00	Inlet-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
13049-V5000	Inlet-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14053-16V01	Pipe Assy-Heater Feed	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14053-16V11	Pipe Assy-Heater Return, Rear	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14053-F6511	Connector	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14054-89W00	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14055-F6100	Hose-Water, Bypass	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-02F00	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-16V03	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-16V05	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-16V06	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-16V10	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-V5002	Hose-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14056-V5017	Hose-Bypass	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14075-12P00	Pipe Assy-Heater Feed	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
14896-25600	Clamp-Hose, A	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
16163-F6510	Bolt	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
16439-42L00	Clamp-Hose, A	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
16439-56S00	Clamp-Hose	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21010-F6525	Pump Assy-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21010-F6526	Pump Assy-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21010-V5026	Pump Assy-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21010-V5027	Pump Assy-Water	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21012-V5001	Bolt	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21012-V5011	Bolt	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21051-16V00	Pulley-Fan & Water Pump	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21060-42L00	Fan-Cooling	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21060-42L0A	Fan-cooling	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21060-F6500	Fan-Cooling	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21082-10V00	Coupling Assy-Fan	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21082-10V10	Coupling Assy-Fan	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21082-42L03	Coupling Assy-Fan	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21082-42L04	Coupling Assy-Fan	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21200-42L00	Thermostat Assy	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)
21200-42L0A	Thermostat	water pump & ｻ-ﾓｽﾀﾂﾄ (1988-08-01 ~ ; (; VG20DT)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 257
Collected: 2026-07-29
