Search › Model › F31

F31

Nissan LEOPARD · 1986 · 5,290 parts · 257 categories

5,290 items

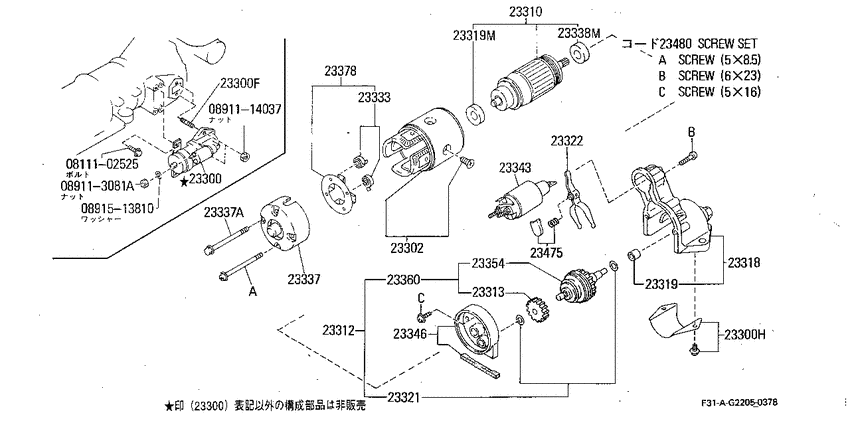

Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT) 28

#	OEM	Part name
23300	23300-26V11	Motor Assy-Starter
23300	01151-00371	STUD
23300	23396-43L16	Cover-Starter Motor
23300	23300-25V11	Motor Assy-Starter
23302	23302-26V11	Yoke Assy
23302	23302-25V11	Yoke Assy
23310	23310-26V10	Armature Assy
23310	23310-25V10	Armature Assy
23312	23312-25V10	Pinion Assy
23313	23361-25V10	Gear
23318	23318-25V10	Case Assy-Gear
23319	23319-25V10	Metal-Gear Case
23321	23460-25V10	Washer Set-Thrust
23322	23322-25V10	Lever Set-Shift
23337	23337-N5910	Cover Assy-Rear
23337	23340-N5910	Bolt-Through
23337	23340-U7510	Bolt-Through
23343	23343-26V11	Switch Assy-Magnetic
23346	23383-25V10	Housing-Center
23354	23312-25V11	Clutch Assy
23360	23360-25V10	Gear & Shaft Set
23378	23378-25V10	Holder Assy-Brush
23475	23475-M8110	Spring Set
23480	23480-M0110	Screw Set
89113081	08911-3081A	Nut-Wiper Arm
811102525	08111-02525	Bolt-hexagon
891114037	08911-14037	ナツト,ヘクサゴン
891513810	08915-13810	ワツシヤ-,スプリング

OEM	Part name	Category
01151-00371	STUD	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
08111-02525	Bolt-hexagon	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
08911-14037	ナツト,ヘクサゴン	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
08911-3081A	Nut-Wiper Arm	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
08915-13810	ワツシヤ-,スプリング	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23300-25V11	Motor Assy-Starter	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23300-26V11	Motor Assy-Starter	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23302-25V11	Yoke Assy	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23302-26V11	Yoke Assy	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23310-25V10	Armature Assy	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23310-26V10	Armature Assy	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23312-25V10	Pinion Assy	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23312-25V11	Clutch Assy	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23318-25V10	Case Assy-Gear	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23319-25V10	Metal-Gear Case	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23322-25V10	Lever Set-Shift	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23337-N5910	Cover Assy-Rear	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23340-N5910	Bolt-Through	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23340-U7510	Bolt-Through	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23343-26V11	Switch Assy-Magnetic	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23360-25V10	Gear & Shaft Set	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23361-25V10	Gear	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23378-25V10	Holder Assy-Brush	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23383-25V10	Housing-Center	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23396-43L16	Cover-Starter Motor	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23460-25V10	Washer Set-Thrust	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23475-M8110	Spring Set	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
23480-M0110	Screw Set	Starter motor (1988-08-01 ~ ; 三菱; VG20DT+VG30DT)
