F31

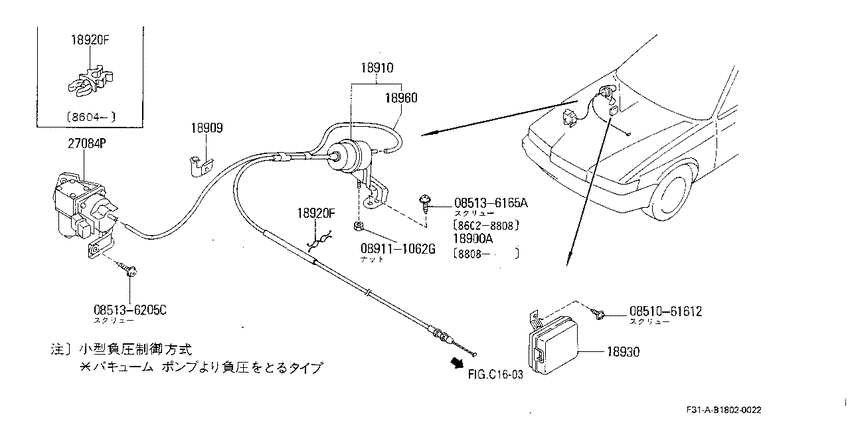

ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) 8
| # | OEM | Part name |
|---|---|---|
| 18910 | 18910-F6510 | Actuator Assy-Ascd |
| 18920 | 24220-F6300 | Clip |
| 18930 | 18930-F6210 | Controller Assy-Ascd |
| 18930 | 18930-F6211 | Controller Assy-Ascd |
| 18930 | 18930-F6212 | Controller Assy-Ascd |
| 27084 | 18955-F6510 | Pump-Vacuum Ascd |
| 85136165 | 08513-6165A | スクリユ-,タツピング |
| 85136205 | 08513-6205C | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 08513-6165A | スクリユ-,タツピング | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 08513-6205C | スクリユ-,タツピング | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 18910-F6510 | Actuator Assy-Ascd | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 18930-F6210 | Controller Assy-Ascd | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 18930-F6211 | Controller Assy-Ascd | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 18930-F6212 | Controller Assy-Ascd | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 18955-F6510 | Pump-Vacuum Ascd | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
| 24220-F6300 | Clip | ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1988-08-01 ~ ; VG30DT.ULTIMA) |
