F24

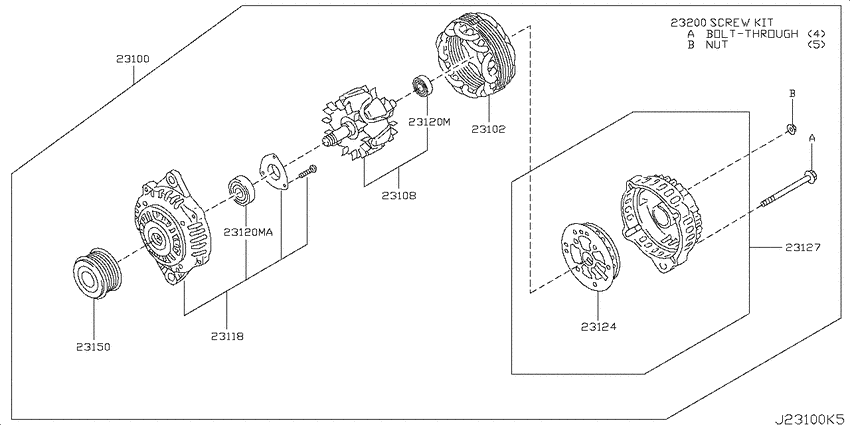

Alternator (2007-06-01 ~ ; ZD30DDTI) 9
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-DB00A | Alternator Assy |
| 23102 | 23102-DB000 | Stator Assy |
| 23108 | 23108-2Y00A | Rotor Assy |
| 23118 | 23118-DB00A | Cover Assy-Front |
| 23120 | 23120-0M000 | Bearing-Ball |
| 23124 | 23124-DB00A | Rectifier Assy |
| 23127 | 23127-DB000 | Cover Assy-Rear |
| 23150 | 23150-2W20B | Pulley Assy |
| 23200 | 23200-CN10A | Screw Set |
| OEM | Part name | Category |
|---|---|---|
| 23100-DB00A | Alternator Assy | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23102-DB000 | Stator Assy | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23108-2Y00A | Rotor Assy | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23118-DB00A | Cover Assy-Front | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23120-0M000 | Bearing-Ball | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23124-DB00A | Rectifier Assy | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23127-DB000 | Cover Assy-Rear | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23150-2W20B | Pulley Assy | Alternator (2007-06-01 ~ ; ZD30DDTI) |
| 23200-CN10A | Screw Set | Alternator (2007-06-01 ~ ; ZD30DDTI) |
