F23

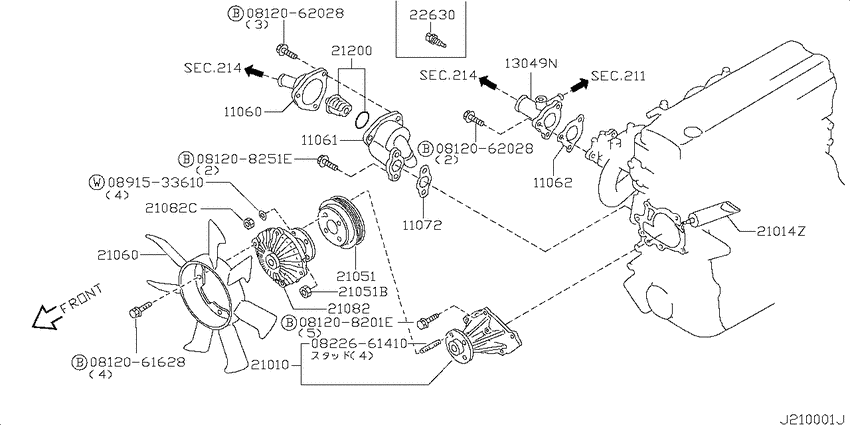

Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) 8
| # | OEM | Part name |
|---|---|---|
| 11072 | 11072-VJ200 | Gasket-Thermostat Housing |
| 21051 | 01221-00241 | NUT |
| 21060 | 21060-85G00 | Fan-Cooling |
| 21082 | 21082-2T900 | Coupling Assy-Fan |
| 21200 | 21200-53J00 | Thermostat Assy |
| 21200 | 21200-0C82A | Thermostat Assy |
| 81208251 | 08120-8251E | Bolt-hexagon |
| 812062028 | 08120-62028 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01221-00241 | NUT | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 08120-62028 | Bolt-hexagon | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 08120-8251E | Bolt-hexagon | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 11072-VJ200 | Gasket-Thermostat Housing | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 21060-85G00 | Fan-Cooling | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 21082-2T900 | Coupling Assy-Fan | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 21200-0C82A | Thermostat Assy | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
| 21200-53J00 | Thermostat Assy | Water pump, cooling fan & thermostat (2003-08-01 ~ ; KA20DE) |
