Search › Model › F23
F23

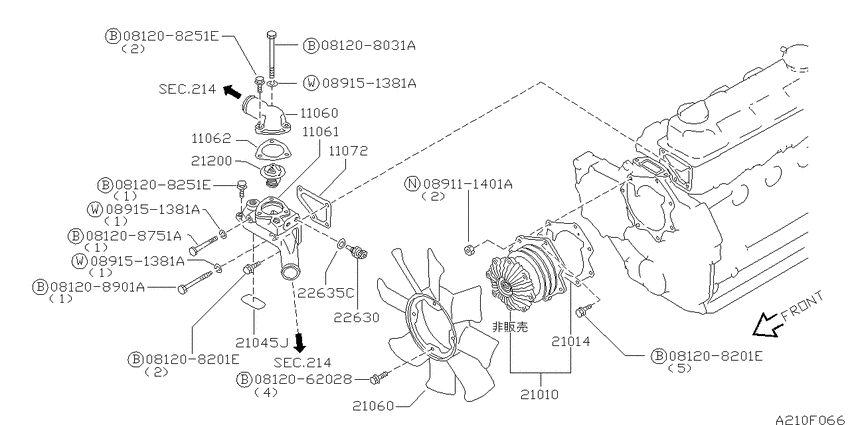

Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) 6
| # | OEM | Part name |
|---|---|---|
| 11061 | 11061-2S015 | Housing-Thermostat |
| 11061 | 11061-DA300 | Housing-Thermostat |
| 21010 | 21010-6T327 | Pump Assy-Water |
| 81208251 | 08120-8251E | Bolt-hexagon |
| 81208751 | 08120-8751A | Bolt-hexagon |
| 812062028 | 08120-62028 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-62028 | Bolt-hexagon | Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) |
| 08120-8251E | Bolt-hexagon | Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) |
| 08120-8751A | Bolt-hexagon | Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) |
| 11061-2S015 | Housing-Thermostat | Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) |
| 11061-DA300 | Housing-Thermostat | Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) |
| 21010-6T327 | Pump Assy-Water | Water pump, cooling fan & thermostat (2002-08-01 ~ ; QD32) |
