Search › Model › F23
F23

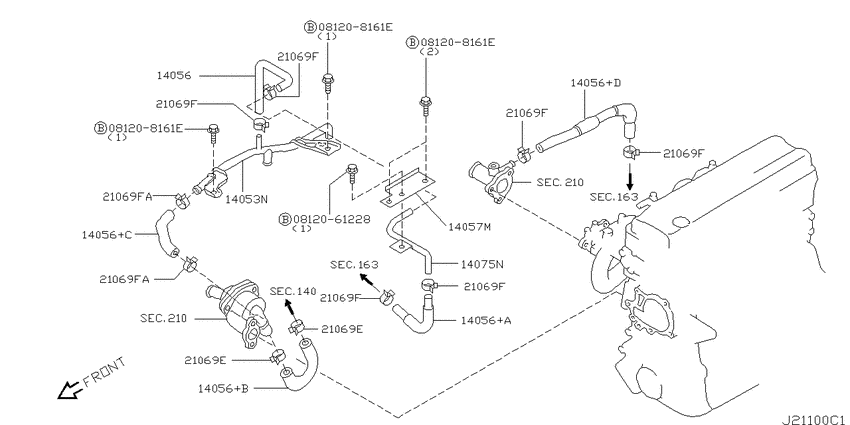

Water hose & piping (2003-08-01 ~ ; KA20DE) 9
| # | OEM | Part name |
|---|---|---|
| 14053 | 21021-DA000 | Pipe-Water |
| 14056 | 14056-VX010 | Hose-Water |
| 14056 | 14056-VX005 | Hose-Water |
| 14056 | 14056-VX000 | Hose-Water |
| 14057 | 14076-DA000 | Bracket-Heater Pipe |
| 14075 | 14053-VX000 | Pipe Assy-Heater Feed |
| 21069 | 01558-00211 | CLIP |
| 21069 | 16439-56S00 | Clamp-Hose |
| 21069 | 16439-V5000 | Clamp-Hose A |
| OEM | Part name | Category |
|---|---|---|
| 01558-00211 | CLIP | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 14053-VX000 | Pipe Assy-Heater Feed | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 14056-VX000 | Hose-Water | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 14056-VX005 | Hose-Water | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 14056-VX010 | Hose-Water | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 14076-DA000 | Bracket-Heater Pipe | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 16439-56S00 | Clamp-Hose | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 16439-V5000 | Clamp-Hose A | Water hose & piping (2003-08-01 ~ ; KA20DE) |
| 21021-DA000 | Pipe-Water | Water hose & piping (2003-08-01 ~ ; KA20DE) |
