F23

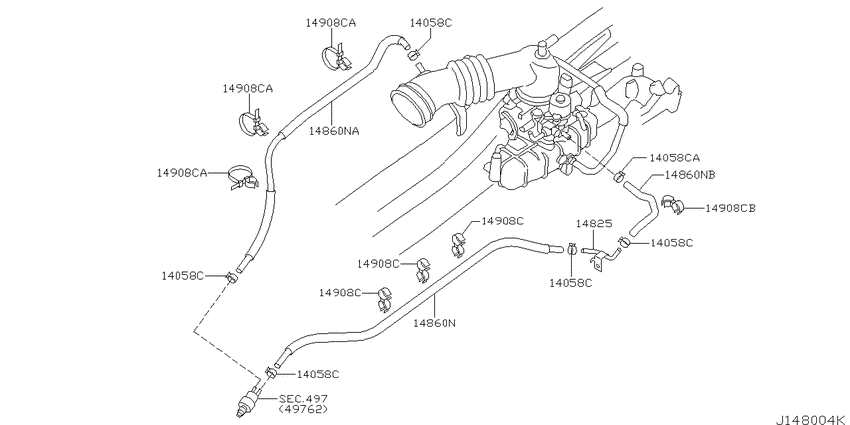

Secondary air system (2003-08-01 ~ ; KA20DE) 9
| # | OEM | Part name |
|---|---|---|
| 14058 | 16439-N2100 | Clamp-Hose |
| 14825 | 14061-DA000 | Pipe Assy-Air |
| 14860 | 14099-DA000 | Hose-Air |
| 14860 | 14099-DA005 | Hose-Air |
| 14860 | 14099-VW005 | Hose-Air |
| 14908 | 24220-DA000 | Clip-Harness |
| 14908 | 24220-74N00 | Clip |
| 14908 | 24220-DA005 | Clip-Harness |
| 14908 | 24220-VW005 | Clip-Harness |
| OEM | Part name | Category |
|---|---|---|
| 14061-DA000 | Pipe Assy-Air | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 14099-DA000 | Hose-Air | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 14099-DA005 | Hose-Air | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 14099-VW005 | Hose-Air | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 16439-N2100 | Clamp-Hose | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 24220-74N00 | Clip | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 24220-DA000 | Clip-Harness | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 24220-DA005 | Clip-Harness | Secondary air system (2003-08-01 ~ ; KA20DE) |
| 24220-VW005 | Clip-Harness | Secondary air system (2003-08-01 ~ ; KA20DE) |
