F23

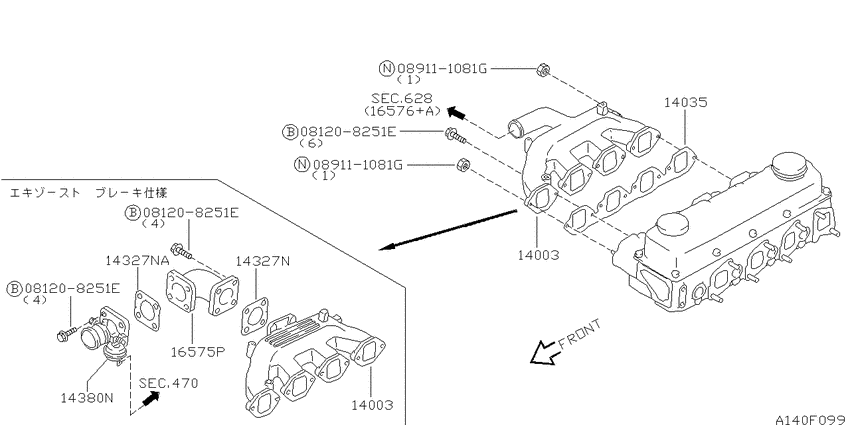

Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) 9
| # | OEM | Part name |
|---|---|---|
| 14003 | 14003-10T06 | Manifold-Intake |
| 14003 | 14003-6T900 | Manifold-Intake |
| 14003 | 14003-DA300 | Manifold-Intake |
| 14327 | 14327-09W00 | Gasket-Venturi |
| 14327 | 14327-J6500 | Gasket-Air Heater |
| 14380 | 16118-6T701 | Shutter Assy-Intake |
| 14380 | 16118-DA300 | Shutter Assy-Intake |
| 16575 | 16575-03T04 | Hose-Bypass |
| 81208251 | 08120-8251E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-8251E | Bolt-hexagon | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 14003-10T06 | Manifold-Intake | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 14003-6T900 | Manifold-Intake | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 14003-DA300 | Manifold-Intake | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 14327-09W00 | Gasket-Venturi | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 14327-J6500 | Gasket-Air Heater | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 16118-6T701 | Shutter Assy-Intake | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 16118-DA300 | Shutter Assy-Intake | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
| 16575-03T04 | Hose-Bypass | Manifold (2002-08-01 ~ 2004-08-01; インテーク パーツ; QD32) |
