Search › Model › F23
F23

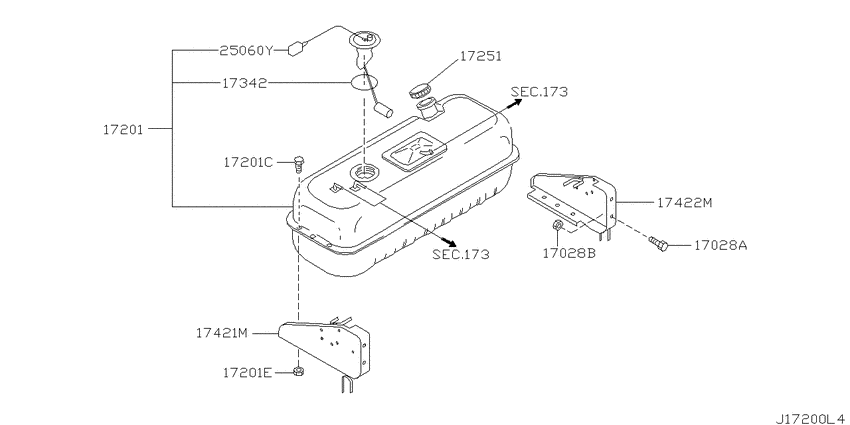

Fuel tank (2004-08-01 ~ ; 50リッター タンク; QD32) 5
| # | OEM | Part name |
|---|---|---|
| 17201 | 17201-6T004 | Tank Assy-Fuel |
| 17201 | 17201-DA20A | Tank Assy-Fuel |
| 17201 | 17234-79900 | Plug-Drain |
| 17251 | 17251-0T500 | Cap Assy-Filler |
| 17421 | 17421-09T00 | Bracket-Fuel Tank Mounting, Front |
| OEM | Part name | Category |
|---|---|---|
| 17201-6T004 | Tank Assy-Fuel | Fuel tank (2004-08-01 ~ ; 50リッター タンク; QD32) |
| 17201-DA20A | Tank Assy-Fuel | Fuel tank (2004-08-01 ~ ; 50リッター タンク; QD32) |
| 17234-79900 | Plug-Drain | Fuel tank (2004-08-01 ~ ; 50リッター タンク; QD32) |
| 17251-0T500 | Cap Assy-Filler | Fuel tank (2004-08-01 ~ ; 50リッター タンク; QD32) |
| 17421-09T00 | Bracket-Fuel Tank Mounting, Front | Fuel tank (2004-08-01 ~ ; 50リッター タンク; QD32) |
