F23

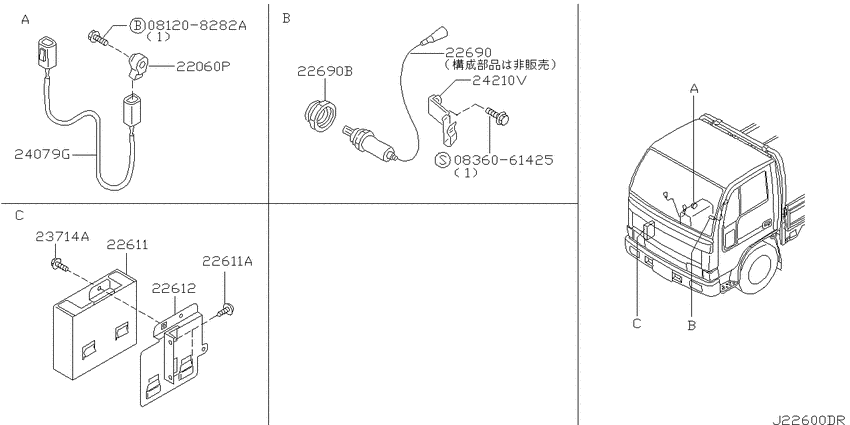

Engine control module (2003-08-01 ~ ; KA20DE) 9
| # | OEM | Part name |
|---|---|---|
| 22060 | 22060-4M500 | Knock Sensor |
| 22611 | 23710-DA000 | Engine Control Module |
| 22611 | 23710-DA00A | Engine Control Module |
| 22612 | 23714-DA000 | Bracket-Control Unit |
| 23714 | 23390-4M510 | Bolt |
| 24079 | 24079-DA000 | Harness-Eng Sub |
| 24210 | 24210-5T500 | Clamp |
| 81208282 | 08120-8282A | Bolt-hexagon |
| 836061425 | 08360-61425 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08120-8282A | Bolt-hexagon | Engine control module (2003-08-01 ~ ; KA20DE) |
| 08360-61425 | スクリユ-,マシン | Engine control module (2003-08-01 ~ ; KA20DE) |
| 22060-4M500 | Knock Sensor | Engine control module (2003-08-01 ~ ; KA20DE) |
| 23390-4M510 | Bolt | Engine control module (2003-08-01 ~ ; KA20DE) |
| 23710-DA000 | Engine Control Module | Engine control module (2003-08-01 ~ ; KA20DE) |
| 23710-DA00A | Engine Control Module | Engine control module (2003-08-01 ~ ; KA20DE) |
| 23714-DA000 | Bracket-Control Unit | Engine control module (2003-08-01 ~ ; KA20DE) |
| 24079-DA000 | Harness-Eng Sub | Engine control module (2003-08-01 ~ ; KA20DE) |
| 24210-5T500 | Clamp | Engine control module (2003-08-01 ~ ; KA20DE) |
