F23

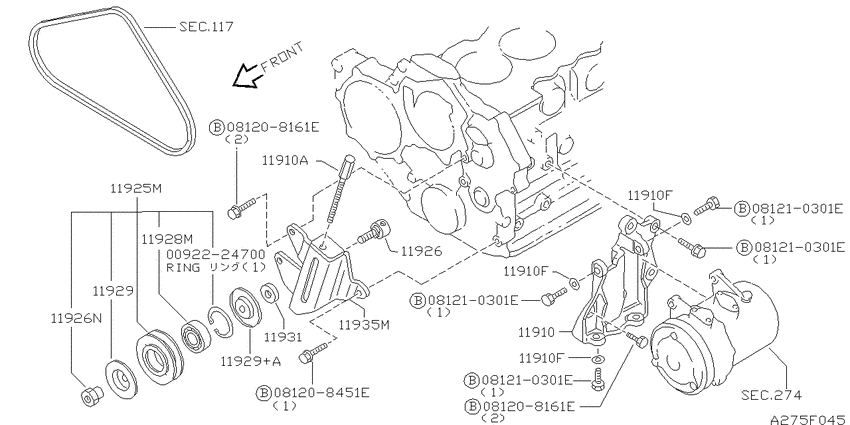

Compressor mounting & fitting (2002-08-01 ~ ; QD32) 9
| # | OEM | Part name |
|---|---|---|
| 11910 | 11910-10T01 | Bracket-Compressor |
| 11925 | 11925-02N02 | Pulley Assy-Idler, Compressor |
| 11926 | 69763-10G01 | Shaft |
| 11928 | 21035-65N00 | Bearing-Ball, Idler Pulley |
| 11929 | 12098-02N00 | Cover-Dust, Idler Pulley |
| 11929 | 11915-J5502 | Cover-Dust |
| 11935 | 11926-02N00 | Bracket-Idler Pulley |
| 81208451 | 08120-8451E | Bolt-hexagon |
| 92224700 | 00922-24700 | RING-SNAP |
| OEM | Part name | Category |
|---|---|---|
| 00922-24700 | RING-SNAP | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 08120-8451E | Bolt-hexagon | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 11910-10T01 | Bracket-Compressor | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 11915-J5502 | Cover-Dust | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 11925-02N02 | Pulley Assy-Idler, Compressor | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 11926-02N00 | Bracket-Idler Pulley | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 12098-02N00 | Cover-Dust, Idler Pulley | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 21035-65N00 | Bearing-Ball, Idler Pulley | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
| 69763-10G01 | Shaft | Compressor mounting & fitting (2002-08-01 ~ ; QD32) |
