F23

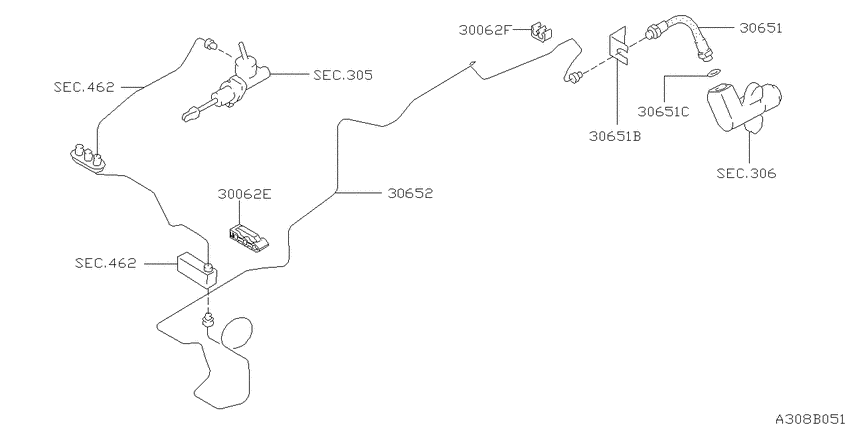

Clutch piping (2004-08-01 ~ ; 4WD.QD32) 8
| # | OEM | Part name |
|---|---|---|
| 30062 | 46272-01G00 | Spacer |
| 30062 | 46272-2S400 | Spacer-Brake Tube |
| 30651 | 46211-01A12 | Hose Assy-Clutch |
| 30651 | 46206-2J000 | Spring-Lock |
| 30652 | 30850-4T111 | Tube Assy-Clutch |
| 30652 | 30850-5T003 | Tube Assy-Clutch |
| 30652 | 30850-DA20A | Tube Assy-Clutch |
| 30652 | 30850-DA20B | Tube Assy-Clutch |
| OEM | Part name | Category |
|---|---|---|
| 30850-4T111 | Tube Assy-Clutch | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 30850-5T003 | Tube Assy-Clutch | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 30850-DA20A | Tube Assy-Clutch | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 30850-DA20B | Tube Assy-Clutch | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 46206-2J000 | Spring-Lock | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 46211-01A12 | Hose Assy-Clutch | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 46272-01G00 | Spacer | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
| 46272-2S400 | Spacer-Brake Tube | Clutch piping (2004-08-01 ~ ; 4WD.QD32) |
