F23

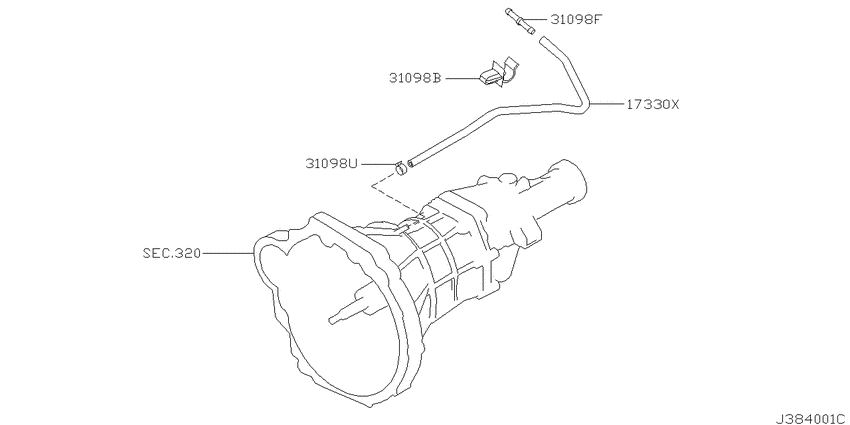

Breather piping (for fr unit) (2004-08-01 ~ ; KA20DE.MT.F5) 5
| # | OEM | Part name |
|---|---|---|
| 17330 | 17330-5T000 | Hose Assy-Breather |
| 31098 | 24211-00Z01 | Clip-Breather Hose |
| 31098 | 14918-W0400 | Connector, B |
| 31098 | 17326-F990A | Clamp-Breather Hose |
| 31098 | 17386-M7001 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 14918-W0400 | Connector, B | Breather piping (for fr unit) (2004-08-01 ~ ; KA20DE.MT.F5) |
| 17326-F990A | Clamp-Breather Hose | Breather piping (for fr unit) (2004-08-01 ~ ; KA20DE.MT.F5) |
| 17330-5T000 | Hose Assy-Breather | Breather piping (for fr unit) (2004-08-01 ~ ; KA20DE.MT.F5) |
| 17386-M7001 | Clip | Breather piping (for fr unit) (2004-08-01 ~ ; KA20DE.MT.F5) |
| 24211-00Z01 | Clip-Breather Hose | Breather piping (for fr unit) (2004-08-01 ~ ; KA20DE.MT.F5) |
