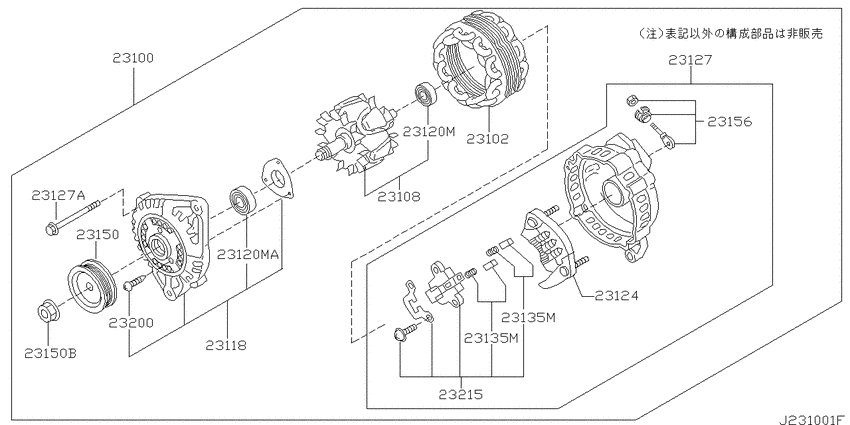

| 23100-VJ215 |
Alternator Assy |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23102-0M010 |
Stator Assy |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23108-0E716 |
Rotor Assy |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23115-20P10 |
Screw Set |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23118-VJ215 |
Cover Assy-Front |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23120-22J20 |
Bearing-Ball |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23120-30R10 |
Bearing-Ball |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23124-VJ215 |
Rectifier Assy |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23127-VJ215 |
Cover Assy-Rear |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23127-VJ216 |
Cover Assy-Rear |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23131-20P10 |
Bolt-Through |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23150-0P511 |
Pulley Assy |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23153-70T12 |
Plate-Terminal |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23156-AU410 |
Terminal Assy-B |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
| 23215-0V016 |
Regulator Assy-Ic |
Alternator (2003-08-01 ~ ; 三菱; KA20DE) |
