Search › Model › F23

F23

Nissan ATLAS-CONDOR · 1992 · 3,529 parts · 622 categories

3,529 items

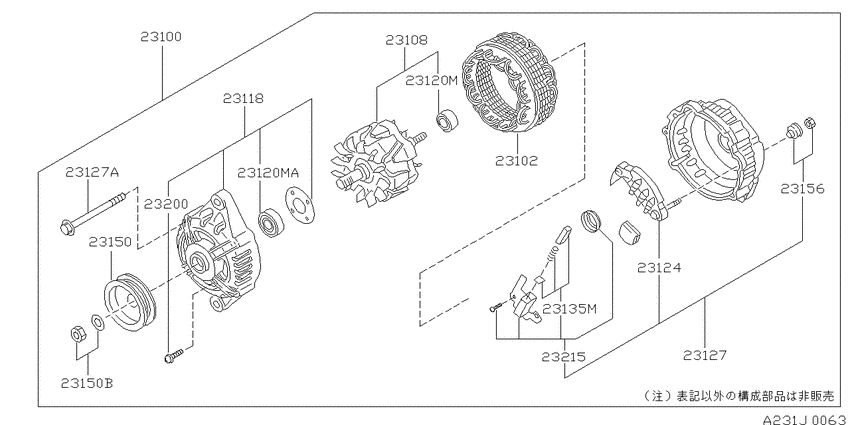

Alternator (2002-08-01 ~ ; 三菱; QD32) 36

#	OEM	Part name
23100	23100-6T002	Alternator Assy
23100	23100-6T00A	Alternator Assy
23100	23100-6T012	Alternator Assy
23100	33296-43G00	Washer-Plain
23102	23102-31U00	Stator Assy
23102	23102-6T010	Stator Assy
23108	23108-4P410	Rotor Assy
23108	23108-8E100	ROTOR ASSY
23108	23108-8E10A	Rotor Assy
23118	23118-6T000	Cover Assy-Front
23118	23118-6T00A	Cover Assy-Front
23118	23118-6T011	Cover Assy-Front
23120	23120-0M000	Bearing-Ball
23120	23120-2W200	Bearing-Ball
23120	23120-30R10	Bearing-Ball
23120	23120-0M005	Bearing-Ball
23120	23120-22J20	Bearing-Ball
23124	23124-6T002	Rectifier Assy
23124	23124-6T00A	Rectifier Assy
23124	23124-6T012	Rectifier Assy
23127	23127-6T002	Cover Assy-Rear
23127	23127-6T013	Cover Assy-Rear
23127	23127-6T020	Cover Assy-Rear
23127	23131-20P10	Bolt-Through
23135	23142-31U00	Brush-F
23150	23150-6T000	Pulley Assy
23150	23150-6T00A	Pulley Assy
23150	23150-6T011	Pulley Assy
23150	23153-70T12	Plate-Terminal
23156	23156-1E810	Terminal Assy-B
23200	23115-20P10	Screw Set
23200	23200-0M000	Screw Set
23200	23200-20P10	Screw Set
23200	23200-CN10A	Screw Set
23215	23215-6T012	Regulator Assy-Ic
23215	23215-VW20A	Regulator Assy-Ic

OEM	Part name	Category
23100-6T002	Alternator Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23100-6T00A	Alternator Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23100-6T012	Alternator Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23102-31U00	Stator Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23102-6T010	Stator Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23108-4P410	Rotor Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23108-8E100	ROTOR ASSY	Alternator (2002-08-01 ~ ; 三菱; QD32)
23108-8E10A	Rotor Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23115-20P10	Screw Set	Alternator (2002-08-01 ~ ; 三菱; QD32)
23118-6T000	Cover Assy-Front	Alternator (2002-08-01 ~ ; 三菱; QD32)
23118-6T00A	Cover Assy-Front	Alternator (2002-08-01 ~ ; 三菱; QD32)
23118-6T011	Cover Assy-Front	Alternator (2002-08-01 ~ ; 三菱; QD32)
23120-0M000	Bearing-Ball	Alternator (2002-08-01 ~ ; 三菱; QD32)
23120-0M005	Bearing-Ball	Alternator (2002-08-01 ~ ; 三菱; QD32)
23120-22J20	Bearing-Ball	Alternator (2002-08-01 ~ ; 三菱; QD32)
23120-2W200	Bearing-Ball	Alternator (2002-08-01 ~ ; 三菱; QD32)
23120-30R10	Bearing-Ball	Alternator (2002-08-01 ~ ; 三菱; QD32)
23124-6T002	Rectifier Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23124-6T00A	Rectifier Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23124-6T012	Rectifier Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23127-6T002	Cover Assy-Rear	Alternator (2002-08-01 ~ ; 三菱; QD32)
23127-6T013	Cover Assy-Rear	Alternator (2002-08-01 ~ ; 三菱; QD32)
23127-6T020	Cover Assy-Rear	Alternator (2002-08-01 ~ ; 三菱; QD32)
23131-20P10	Bolt-Through	Alternator (2002-08-01 ~ ; 三菱; QD32)
23142-31U00	Brush-F	Alternator (2002-08-01 ~ ; 三菱; QD32)
23150-6T000	Pulley Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23150-6T00A	Pulley Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23150-6T011	Pulley Assy	Alternator (2002-08-01 ~ ; 三菱; QD32)
23153-70T12	Plate-Terminal	Alternator (2002-08-01 ~ ; 三菱; QD32)
23156-1E810	Terminal Assy-B	Alternator (2002-08-01 ~ ; 三菱; QD32)
23200-0M000	Screw Set	Alternator (2002-08-01 ~ ; 三菱; QD32)
23200-20P10	Screw Set	Alternator (2002-08-01 ~ ; 三菱; QD32)
23200-CN10A	Screw Set	Alternator (2002-08-01 ~ ; 三菱; QD32)
23215-6T012	Regulator Assy-Ic	Alternator (2002-08-01 ~ ; 三菱; QD32)
23215-VW20A	Regulator Assy-Ic	Alternator (2002-08-01 ~ ; 三菱; QD32)
33296-43G00	Washer-Plain	Alternator (2002-08-01 ~ ; 三菱; QD32)

Source: Public OEM parts-catalog data
Variants: 2 / 207
Category: 622
Collected: 2026-07-26
