Search › Model › F16A

F16A

Mitsubishi DIAMANTE · 1991 · 5,399 parts · 249 categories
F16A ×

← Back to categories

5,399 items

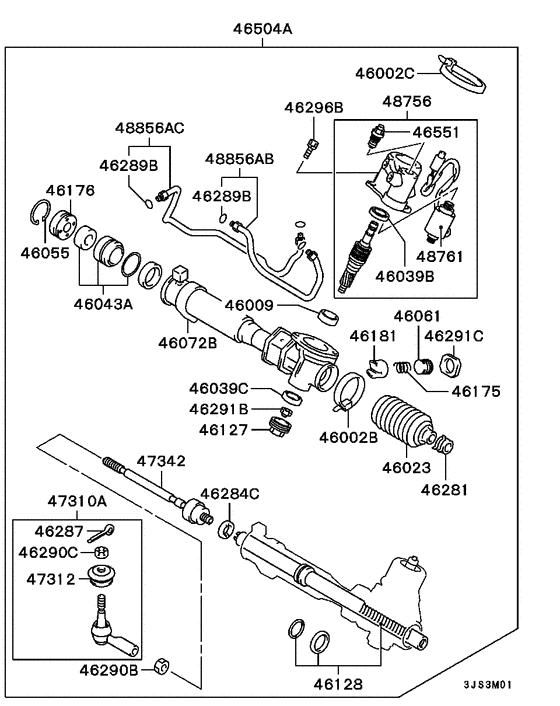

Steering gear (EPS DISASSEMBLED PARTS) 51
#OEMPart name
46002 MB501025 BAND, STEERING GEAR
46002 MR455429 BAND, STEERING GEAR
46002 MB122139 BAND, INDEPENDENT RR SUSP ARM - 270
46009 MB815379 BEARING, STEERING GEAR PINION SHAFT, UPR
46023 MB501711 BELLOWS, STEERING GEAR
46039 MB243364 BEARING, STEERING GEAR BALL SCREW, LWR
46039 MB350602 BEARING, STEERING GEAR PINION
46039 MB870071 BEARING, STEERING GEAR PINION
46043 MB815381 BUSHING ASSY, STEERING GEAR
46055 MB501015 CLIP, STEERING GEAR PISTON
46061 MB501021 COVER, STEERING GEAR RACK SUPPORT
46061 MB412310 COVER, STEERING GEAR RACK SUPPORT
46072 MB501382 CUSHION, STEERING GEAR
46127 MB243336 PLUG, STEERING GEAR
46128 MB891621 RACK,STEERING GEAR
46128 MB891732 RACK,STEERING GEAR
46175 MB844694 SPRING, STEERING GEAR RACK SUPPORT
46175 MB815384 SPRING, STEERING GEAR RACK SUPPORT
46176 MB501953 STOPPER, STEERING GEAR RACK
46181 MB501955 SUPPORT, STEERING GEAR RACK
46281 MS660165 CLIP, ROCKER COVER - D=14.8
46284 MB266164 WASHER, STEERING GEAR
46287 MF472054 PIN, ENG OIL PUMP INR - Split,2.5x25
46289 MB192717 O-RING, P/S OIL PUMP - 6
46290 MF430008 NUT - NUT, 14, 4T
46290 MB122128 NUT, FR SUSP LWR ARM - Slotted,6t,10
46291 MB243335 NUT, STEERING GEAR
46291 MB501022 NUT, STEERING GEAR
46291 MB412311 NUT, STEERING GEAR - Lock
46296 MB501451 BOLT, STEERING GEAR INR
46504 MB636284 GEAR & LINK ASSY,P/S
46504 MB911393 GEAR & LINK ASSY,P/S
46504 MR102634 GEAR & LINK ASSY,P/S
46504 MB636273 GEAR & LINK ASSY,P/S
46504 MB911459 GEAR & LINK ASSY,P/S
46551 MB501400 VALVE KIT, P/S GEAR PINION PRESSURE CONTROL
46551 MB949355 VALVE KIT, P/S GEAR PINION PRESSURE CONTROL
47310 MB564991 END ASSY, TIE ROD
47310 MB912519 END ASSY, TIE ROD
47312 MB616023 COVER, TIE ROD END
47342 MB844695 TIE ROD, STEERING
47342 MR131830 TIE ROD, STEERING
48756 MB891622 VALVE KIT,P/S GEAR CONTROL
48756 MB949859 VALVE KIT,P/S GEAR CONTROL
48756 MR131835 VALVE KIT,P/S GEAR CONTROL
48756 MB891729 VALVE KIT, P/S GEAR CONTROL
48756 MB949857 VALVE KIT,P/S GEAR CONTROL
48761 MB891626 VALVE,P/S CONTROL SOLENOID
48761 MR131829 VALVE,P/S CONTROL SOLENOID
48856 MB864163 TUBE ASSY,P/S OIL FEED
48856 MB864162 TUBE ASSY,P/S OIL FEED
