F16A

Mitsubishi DIAMANTE · 1991 · 5,399 parts · 249 categories
F16A ×

← Back to categories

5,399 items

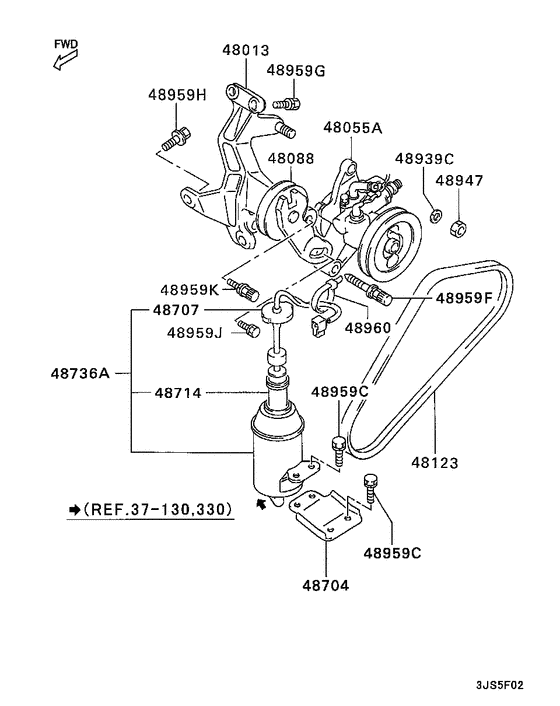

Power steering oil pump (OIL PUMP INSTALLING PARTS..DOHC) 23
#OEMPart name
48013 MB636738 BRACKET, P/S OIL PUMP
48055 MB891115 OIL PUMP ASSY, P/S
48055 MB892189 OIL PUMP ASSY, P/S
48055 MB948357 OIL PUMP ASSY, P/S
48055 MR272493 OIL PUMP ASSY, P/S
48088 MB636737 PULLEY, P/S OIL PUMP BELT TENSION
48088 MD172379 PULLEY, P/S OIL PUMP BELT TENSION
48123 MB636351 BELT, P/S - 915
48123 MD172376 BELT, P/S - 925
48704 MB553831 BRACKET, P/S OIL RESERVOIR
48707 MB288989 CAP, P/S OIL RESERVOIR
48707 MR272335 CAP, P/S OIL RESERVOIR
48714 MB350950 FILTER, P/S OIL RESERVOIR
48736 MB636440 RESERVOIR ASSY, P/S OIL
48939 MF450406 WASHER - Spring,10
48947 MF430122 NUT, ENG RR MOUNTING - 10
48959 MF240050 BOLT, ROCKER COVER - Washer assembled,8x14
48959 MB636984 BOLT, P/S OIL PUMP - Flange,washer assembled,12x50
48959 MF241257 BOLT, CRANKCASE - Washer assembled,8x30
48959 MF300845 BOLT, ENG OIL PUMP INR - Washer assembled,10x30
48959 MF303365 BOLT, CYLINDER BLOCK - Washer assembled,10x30
48959 MF247920 BOLT, ENG FR MOUNTING - Washer assembled,10x25
48959 MB815197 BOLT, P/S OIL PUMP
Source
Public OEM parts-catalog data
Variants
2 / 7
Category
249
Collected
2026-07-25
