Search › Model › F07W
F07W

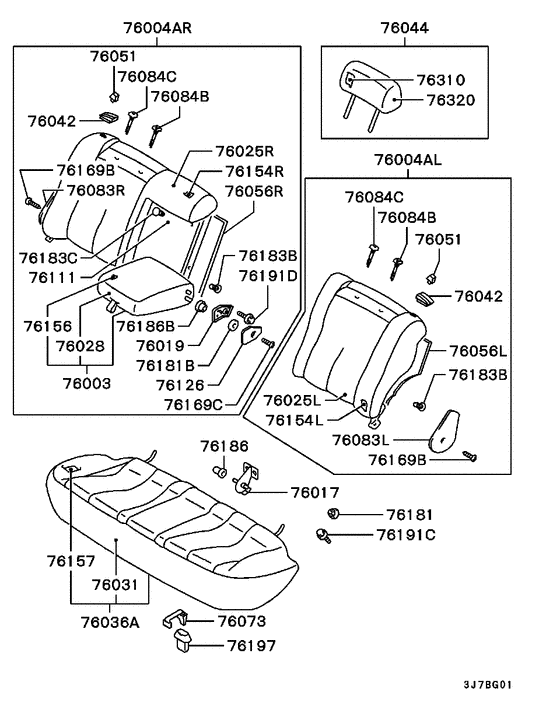

Rear seat 24
| # | OEM | Part name |
|---|---|---|
| 76017 | AW335434 | BRACKET, RR SEAT HINGE, CTR |
| 76017 | AW337628 | BRACKET, RR SEAT HINGE, CTR |
| 76019 | AW326123 | BRACKET, RR SEAT CTR ARMREST, LH |
| 76073 | AW327503 | STOPPER, RR SEAT |
| 76083 | AW336499 | COVER, RR SEAT RECLINING ADJUSTER, LH |
| 76083 | AW337925 | COVER, RR SEAT RECLINING ADJUSTER, LH |
| 76083 | AW336500 | COVER, RR SEAT RECLINING ADJUSTER, RH |
| 76154 | AW336249 | PAD, RR SEAT BACK, LH |
| 76154 | AW345969 | PAD, RR SEAT BACK, LH |
| 76154 | AW336250 | PAD, RR SEAT BACK, RH |
| 76154 | AW336880 | PAD, RR SEAT BACK, RH |
| 76156 | AW336253 | PAD, RR SEAT BACK ARMREST |
| 76157 | AW331127 | PAD, RR SEAT CUSHION |
| 76169 | MB323057 | SCREW, RR SEAT - 6x6 |
| 76169 | MF455495 | SCREW, HEADLINING - Tapping,4x8 |
| 76181 | MS440504 | NUT - Washer assembled,10 |
| 76181 | MS440523 | NUT, FUEL TANK - Washer assembled,8 |
| 76181 | AW329922 | NUT, RR SEAT - 6mm |
| 76186 | AW311836 | BUSHING, RR SEAT |
| 76186 | AW329918 | BUSHING, RR SEAT |
| 76191 | MB131256 | BOLT, BODY LOOSE PANEL - Washer assembled,8x25 |
| 76191 | MF244823 | BOLT, 6x14 - Washer assembled,6x14 |
| 76197 | AW327521 | GROMMET, RR SEAT CUSHION |
| 76310 | AW336286 | PAD, RR SEAT HEADREST |
| OEM | Part name | Category |
|---|---|---|
| AW311836 | BUSHING, RR SEAT | Rear seat |
| AW326123 | BRACKET, RR SEAT CTR ARMREST, LH | Rear seat |
| AW327503 | STOPPER, RR SEAT | Rear seat |
| AW327521 | GROMMET, RR SEAT CUSHION | Rear seat |
| AW329918 | BUSHING, RR SEAT | Rear seat |
| AW329922 | NUT, RR SEAT - 6mm | Rear seat |
| AW331127 | PAD, RR SEAT CUSHION | Rear seat |
| AW335434 | BRACKET, RR SEAT HINGE, CTR | Rear seat |
| AW336249 | PAD, RR SEAT BACK, LH | Rear seat |
| AW336250 | PAD, RR SEAT BACK, RH | Rear seat |
| AW336253 | PAD, RR SEAT BACK ARMREST | Rear seat |
| AW336286 | PAD, RR SEAT HEADREST | Rear seat |
| AW336499 | COVER, RR SEAT RECLINING ADJUSTER, LH | Rear seat |
| AW336500 | COVER, RR SEAT RECLINING ADJUSTER, RH | Rear seat |
| AW336880 | PAD, RR SEAT BACK, RH | Rear seat |
| AW337628 | BRACKET, RR SEAT HINGE, CTR | Rear seat |
| AW337925 | COVER, RR SEAT RECLINING ADJUSTER, LH | Rear seat |
| AW345969 | PAD, RR SEAT BACK, LH | Rear seat |
| MB131256 | BOLT, BODY LOOSE PANEL - Washer assembled,8x25 | Rear seat |
| MB323057 | SCREW, RR SEAT - 6x6 | Rear seat |
| MF244823 | BOLT, 6x14 - Washer assembled,6x14 | Rear seat |
| MF455495 | SCREW, HEADLINING - Tapping,4x8 | Rear seat |
| MS440504 | NUT - Washer assembled,10 | Rear seat |
| MS440523 | NUT, FUEL TANK - Washer assembled,8 | Rear seat |
