F07W

Mitsubishi DIAMANTE-WAGON · 1992 · 3,259 parts · 209 categories
F07W ×

← Back to categories

3,259 items

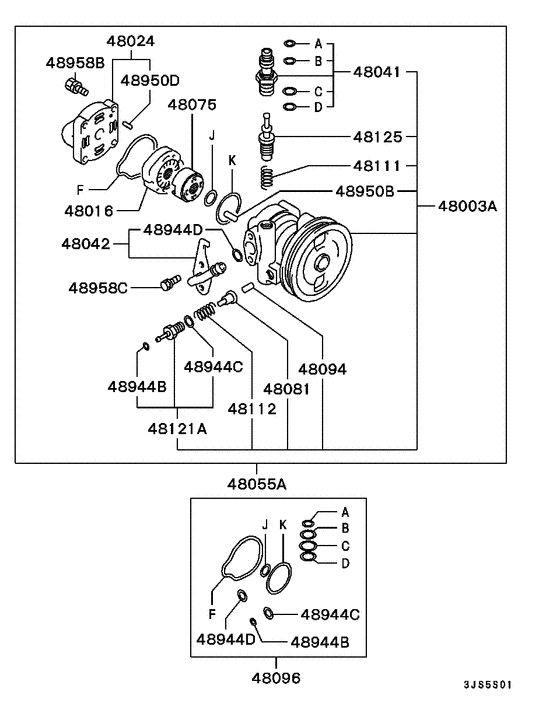

Power steering oil pump (DISASSEMBLED PARTS..-9407.3) 29
#OEMPart name
48003 MB949987 BODY ASSY, P/S OIL PUMP
48003 MR223355 BODY ASSY, P/S OIL PUMP
48016 MB636430 CARTRIDGE, P/S OIL PUMP
48024 MB815415 COVER, P/S OIL PUMP
48024 MB911674 COVER, P/S OIL PUMP
48041 MB949991 JOINT KIT, P/S OIL PUMP FLOW
48041 MR272303 JOINT KIT, P/S OIL PUMP FLOW
48042 MB815416 JOINT KIT, P/S OIL PUMP SUCTION
48055 MB911901 OIL PUMP ASSY, P/S
48055 MR272490 OIL PUMP ASSY, P/S
48075 MB636428 PLATE, P/S OIL PUMP SIDE
48081 MB351269 PLUNGER, P/S OIL PUMP BODY
48094 MB351259 ROD, P/S OIL PUMP PISTON
48096 MB636433 SEAL KIT, P/S OIL PUMP
48096 MR244546 SEAL KIT, P/S OIL PUMP
48096 MB815408 SEAL KIT, P/S OIL PUMP
48096 MR272311 SEAL KIT, P/S OIL PUMP
48111 MB266662 SPRING, P/S OIL PUMP FLOW CONTROL
48112 MB351249 SPRING, P/S OIL PUMP PLUNGER
48121 MB636426 TERMINAL ASSY, P/S OIL PUMP
48121 MR272301 TERMINAL ASSY, P/S OIL PUMP
48125 MB949989 VALVE, P/S OIL PUMP FLOW CONTROL
48944 MB266693 O-RING, P/S OIL PUMP INR
48944 MB192820 O-RING, STEERING GEAR INR
48944 MB636435 O-RING, P/S OIL PUMP INR
48950 MB636424 PIN, P/S OIL PUMP INR
48950 MB266657 PIN, RR STEERING - Dowel,4x19.8
48958 MF241256 BOLT, ENG OIL PAN - Washer assembled,8x28
48958 MF241223 BOLT, ROCKER COVER - Washer assembled,6x12
