F07W

Mitsubishi DIAMANTE-WAGON · 1992 · 3,259 parts · 209 categories
F07W ×

← Back to categories

3,259 items

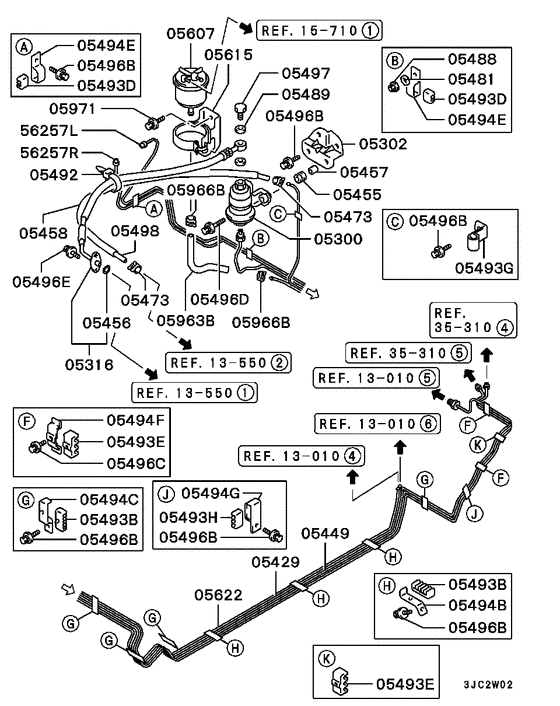

Fuel line & vapor gas control 41
#OEMPart name
5300 MB504756 FUEL FILTER
5302 MB658492 BRACKET, FUEL FILTER
5316 MB504773 HOSE, FUEL FILTER HIGH PRESSURE
5429 AW331884 PIPE, FUEL RETURN
5449 AW332590 PIPE, FUEL LINE
5455 MB221305 CUSHION, FUEL LINE
5456 MB554317 O-RING, FUEL LINE - 11.8
5457 MB221304 COLLAR, FUEL LINE
5458 MB044005 TUBE, FUEL TANK - Soft vinyl,14.5x770
5458 MB133481 TUBE, FUEL RETURN LINE
5458 MB044006 TUBE, FUEL RETURN LINE - Soft vinyl,14.5x240
5473 MS660004 CLAMP, FUEL TANK - 13
5481 MF450405 WASHER, CYLINDER HEAD - Spring,8
5488 MF430005 NUT, ROCKER COVER - 8
5488 MF430121 NUT, CYLINDER HEAD - 8
5489 MF660064 GASKET, CYLINDER BLOCK - D=12
5492 MB249339 BAND, ENG BREATHER - L=169.5
5493 MB329980 CLIP, FUEL LINE
5493 MB082164 CLIP, FUEL RETURN LINE - 4.6
5493 MB554679 CLIP, FUEL LINE - 4.5x2,8
5493 MB658494 CLIP, FUEL LINE - 6
5493 MB534610 CLIP, FUEL LINE - 6
5494 MB329986 CLAMP, FUEL LINE
5494 MB329987 CLAMP, FUEL LINE
5494 MB151280 CLIP, FUEL RETURN LINE - 8,10
5494 MB554680 CLAMP, FUEL LINE
5494 AW330440 CLAMP, FUEL LINE
5496 MF240050 BOLT, ROCKER COVER - Washer assembled,8x14
5496 MF243655 BOLT, ROCKER COVER - Washer assembled,8x30
5496 MF247253 BOLT, ENG OIL COOLER - Washer assembled,8x25
5496 MS240038 BOLT, FUEL LINE - Washer assembled,6x16
5497 MS650013 EYEBOLT, FUEL LINE - 12x23
5498 MS605999 HOSE, FUEL TANK - 6x10000
5607 MB554636 CANISTER, FUEL VAPOR
5615 MB658063 BRACKET, FUEL VAPOR CANISTER
5622 AW324996 PIPE, FUEL VAPOR
5966 AW333819 CLIP, FUEL TANK - 10
56257 AW335719 TUBE, BRAKE MAIN, LH
56257 AW335720 TUBE, BRAKE MAIN, RH
56257 AW335685 TUBE, BRAKE MAIN, LH
56257 AW335686 TUBE, BRAKE MAIN, RH
