F07W

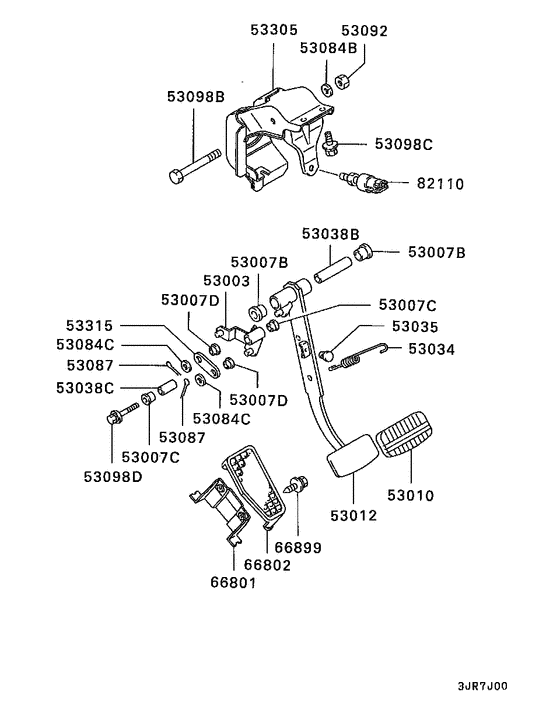

Brake & clutch pedal 26
| # | OEM | Part name |
|---|---|---|
| 53003 | MB599436 | ARM, BRAKE PEDAL |
| 53007 | MB316867 | BUSHING, BRAKE PEDAL - 18.3x10 |
| 53007 | MB500655 | BUSHING, BRAKE PEDAL - 10x6.5 |
| 53007 | MB367301 | BUSHING, BRAKE PEDAL - 8x8 |
| 53010 | MA152260 | PAD, BRAKE PEDAL - 61x112 |
| 53012 | AW334167 | PEDAL, BRAKE |
| 53034 | MB277697 | SPRING, BRAKE PEDAL RETURN |
| 53034 | MB555003 | SPRING, BRAKE PEDAL RETURN |
| 53034 | MB058628 | SPRING, BRAKE PEDAL RETURN |
| 53035 | AW321545 | STOPPER, BRAKE PEDAL |
| 53038 | AW334281 | SPACER, BRAKE PEDAL |
| 53038 | MB599183 | SPACER, BRAKE PEDAL |
| 53084 | MF450406 | WASHER - Spring,10 |
| 53084 | MF450005 | WASHER, FLYWHEEL HOUSING - Plain,8 |
| 53087 | MF472026 | PIN, BRAKE PEDAL - Split,1.6x20 |
| 53092 | MF430006 | NUT - 10 |
| 53098 | MB316045 | BOLT, CLUTCH PEDAL - 10x100 |
| 53098 | MF104902 | BOLT, CLUTCH PEDAL - 10x100 |
| 53098 | MS240145 | BOLT, ENG CONTROL EQUIP - Washer assembled,8x20 |
| 53098 | MF243615 | BOLT, BRAKE PEDAL - Washer assembled,5x45 |
| 53305 | AW334168 | MEMBER, PEDAL SUPPORT |
| 53315 | MB599439 | LINK, BRAKE PEDAL SHIFT LOCK LEVER |
| 66801 | MB312168 | BRACKET, FOOTREST |
| 66802 | MB319436 | FOOTREST |
| 66899 | MS240055 | BOLT, RR BUMPER - Washer assembled,6x20 |
| 82110 | MB596608 | SWITCH, STOP LAMP |
| OEM | Part name | Category |
|---|---|---|
| AW321545 | STOPPER, BRAKE PEDAL | Brake & clutch pedal |
| AW334167 | PEDAL, BRAKE | Brake & clutch pedal |
| AW334168 | MEMBER, PEDAL SUPPORT | Brake & clutch pedal |
| AW334281 | SPACER, BRAKE PEDAL | Brake & clutch pedal |
| MA152260 | PAD, BRAKE PEDAL - 61x112 | Brake & clutch pedal |
| MB058628 | SPRING, BRAKE PEDAL RETURN | Brake & clutch pedal |
| MB277697 | SPRING, BRAKE PEDAL RETURN | Brake & clutch pedal |
| MB312168 | BRACKET, FOOTREST | Brake & clutch pedal |
| MB316045 | BOLT, CLUTCH PEDAL - 10x100 | Brake & clutch pedal |
| MB316867 | BUSHING, BRAKE PEDAL - 18.3x10 | Brake & clutch pedal |
| MB319436 | FOOTREST | Brake & clutch pedal |
| MB367301 | BUSHING, BRAKE PEDAL - 8x8 | Brake & clutch pedal |
| MB500655 | BUSHING, BRAKE PEDAL - 10x6.5 | Brake & clutch pedal |
| MB555003 | SPRING, BRAKE PEDAL RETURN | Brake & clutch pedal |
| MB596608 | SWITCH, STOP LAMP | Brake & clutch pedal |
| MB599183 | SPACER, BRAKE PEDAL | Brake & clutch pedal |
| MB599436 | ARM, BRAKE PEDAL | Brake & clutch pedal |
| MB599439 | LINK, BRAKE PEDAL SHIFT LOCK LEVER | Brake & clutch pedal |
| MF104902 | BOLT, CLUTCH PEDAL - 10x100 | Brake & clutch pedal |
| MF243615 | BOLT, BRAKE PEDAL - Washer assembled,5x45 | Brake & clutch pedal |
| MF430006 | NUT - 10 | Brake & clutch pedal |
| MF450005 | WASHER, FLYWHEEL HOUSING - Plain,8 | Brake & clutch pedal |
| MF450406 | WASHER - Spring,10 | Brake & clutch pedal |
| MF472026 | PIN, BRAKE PEDAL - Split,1.6x20 | Brake & clutch pedal |
| MS240055 | BOLT, RR BUMPER - Washer assembled,6x20 | Brake & clutch pedal |
| MS240145 | BOLT, ENG CONTROL EQUIP - Washer assembled,8x20 | Brake & clutch pedal |
