Search › Model › F07W

F07W

Mitsubishi DIAMANTE-WAGON · 1992 · 3,259 parts · 209 categories

3,259 items

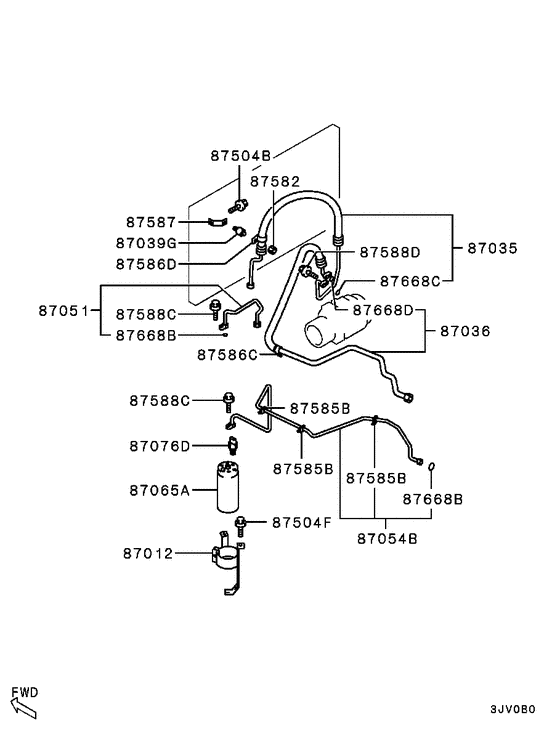

A/c condenser, piping (A/C PIPING) 34

#	OEM	Part name
87012	AW334564	COLUMN ASSY, STEERING
87035	AW328631	HOSE, A/C COMPRESSOR DISCHARGE
87035	AW335856	HOSE, A/C COMPRESSOR DISCHARGE
87035	AW337616	HOSE, A/C COMPRESSOR DISCHARGE
87036	AW332824	HOSE, A/C COMPRESSOR SUCTION
87036	AW335857	HOSE, A/C COMPRESSOR SUCTION
87036	AW337614	HOSE, A/C COMPRESSOR SUCTION
87039	AW310473	INSULATOR, A/C CONDENSER
87051	AW333628	PIPE, A/C CONDENSER OUTLET
87051	AW335847	PIPE, A/C CONDENSER OUTLET
87054	AW335617	PIPE, A/C RECEIVER OUTLET
87054	AW337178	PIPE, A/C RECEIVER OUTLET
87065	AW331609	RECEIVER ASSY, A/C
87065	AW337382	RECEIVER ASSY, A/C
87065	AW337626	RECEIVER ASSY, A/C
87076	AW335824	SWITCH, A/C REFRIGERANT PRESSURE
87076	AW337191	SWITCH, A/C REFRIGERANT PRESSURE
87504	AW310497	BOLT, A/C CONDENSER - 8x30
87504	AW334549	BOLT, A/C CONDENSER - 6x12
87504	MS240145	BOLT, ENG CONTROL EQUIP - Washer assembled,8x20
87582	AW310494	NUT, A/C PIPING - 6
87585	AW328638	CLIP, A/C PIPING
87586	AW328643	CLAMP, A/C PIPING
87586	AW310474	CLAMP, A/C PIPING
87586	AW337860	CLAMP, ENG WIRING - 22.2
87587	AW334554	BRACKET, A/C PIPING
87588	AW310503	BOLT, A/C PIPING - 8x35
87588	AW337071	BOLT, A/C PIPING - 6x35
87668	AW311256	O-RING, A/C - 8mm
87668	AW337163	O-RING, A/C PIPING
87668	AW314309	O-RING, A/C - 1/2;
87668	AW337606	O-RING, A/C PIPING - 1/2;
87668	AW314310	O-RING, A/C - 5/8;
87668	AW337312	O-RING, A/C - 5/8;

OEM	Part name	Category
AW310473	INSULATOR, A/C CONDENSER	A/c condenser, piping (A/C PIPING)
AW310474	CLAMP, A/C PIPING	A/c condenser, piping (A/C PIPING)
AW310494	NUT, A/C PIPING - 6	A/c condenser, piping (A/C PIPING)
AW310497	BOLT, A/C CONDENSER - 8x30	A/c condenser, piping (A/C PIPING)
AW310503	BOLT, A/C PIPING - 8x35	A/c condenser, piping (A/C PIPING)
AW311256	O-RING, A/C - 8mm	A/c condenser, piping (A/C PIPING)
AW314309	O-RING, A/C - 1/2;	A/c condenser, piping (A/C PIPING)
AW314310	O-RING, A/C - 5/8;	A/c condenser, piping (A/C PIPING)
AW328631	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (A/C PIPING)
AW328638	CLIP, A/C PIPING	A/c condenser, piping (A/C PIPING)
AW328643	CLAMP, A/C PIPING	A/c condenser, piping (A/C PIPING)
AW331609	RECEIVER ASSY, A/C	A/c condenser, piping (A/C PIPING)
AW332824	HOSE, A/C COMPRESSOR SUCTION	A/c condenser, piping (A/C PIPING)
AW333628	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (A/C PIPING)
AW334549	BOLT, A/C CONDENSER - 6x12	A/c condenser, piping (A/C PIPING)
AW334554	BRACKET, A/C PIPING	A/c condenser, piping (A/C PIPING)
AW334564	COLUMN ASSY, STEERING	A/c condenser, piping (A/C PIPING)
AW335617	PIPE, A/C RECEIVER OUTLET	A/c condenser, piping (A/C PIPING)
AW335824	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (A/C PIPING)
AW335847	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (A/C PIPING)
AW335856	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (A/C PIPING)
AW335857	HOSE, A/C COMPRESSOR SUCTION	A/c condenser, piping (A/C PIPING)
AW337071	BOLT, A/C PIPING - 6x35	A/c condenser, piping (A/C PIPING)
AW337163	O-RING, A/C PIPING	A/c condenser, piping (A/C PIPING)
AW337178	PIPE, A/C RECEIVER OUTLET	A/c condenser, piping (A/C PIPING)
AW337191	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (A/C PIPING)
AW337312	O-RING, A/C - 5/8;	A/c condenser, piping (A/C PIPING)
AW337382	RECEIVER ASSY, A/C	A/c condenser, piping (A/C PIPING)
AW337606	O-RING, A/C PIPING - 1/2;	A/c condenser, piping (A/C PIPING)
AW337614	HOSE, A/C COMPRESSOR SUCTION	A/c condenser, piping (A/C PIPING)
AW337616	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (A/C PIPING)
AW337626	RECEIVER ASSY, A/C	A/c condenser, piping (A/C PIPING)
AW337860	CLAMP, ENG WIRING - 22.2	A/c condenser, piping (A/C PIPING)
MS240145	BOLT, ENG CONTROL EQUIP - Washer assembled,8x20	A/c condenser, piping (A/C PIPING)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 209
Collected: 2026-07-25
